概要
説明

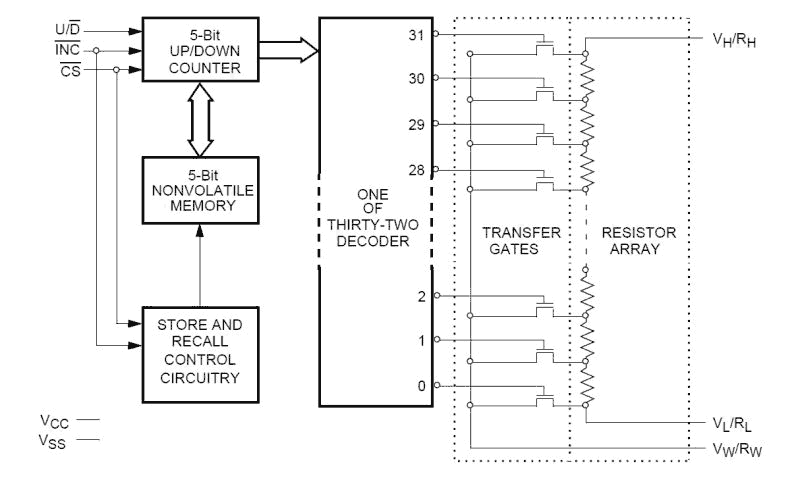

The Intersil X9314 is a solid state nonvolatile potentiometer and is ideal for digitally controlled resistance trimming. The X9314 is a resistor array composed of 31 resistive elements. Between each element and at either end are tap points accessible to the wiper element. The position of the wiper element is controlled by the CS, U/D, and INC inputs. The position of the wiper can be stored in nonvolatile memory and then be recalled upon a subsequent power-up operation. The XDCP can be used as a three-terminal potentiometer or as a two-terminal variable resistor in a wide variety of applications including control, parameter adjustments, and signal processing.
特長
- Solid State Potentiometer
- 32 Taps
- 10kΩEnd to End Resistance
- Three-Wire Up/Down Serial Interface
- Wiper Resistance, 40Ω Typical
- Nonvolatile Storage and Recall on Power-up of Wiper Position Standby Current <500µA Max (Total Package)
- VCC = 3V to 5.5V Operation
- 100 Year Data Retention
- Offered in 8 Ld MSOP and SOIC Packages
- Pb-Free Plus Anneal Available (RoHS Compliant)
ドキュメント
| Document title | Document type
|
日付 日付 | |
|---|---|---|---|
| PDF 437 KB | データシート | ||
| PDF 281 KB | アプリケーションノート | ||
| PDF 280 KB | アプリケーションノート | ||
| PDF 275 KB | アプリケーションノート | ||
| PDF 254 KB | アプリケーションノート | ||
| PDF 513 KB | アプリケーションノート | ||
| PDF 251 KB | アプリケーションノート | ||
| PDF 503 KB | アプリケーションノート | ||
| PDF 287 KB | アプリケーションノート | ||
| PDF 603 KB | EOL通知 | ||
| PDF 1.40 MB | マニュアル－開発ツール | ||
| PDF 315 KB | その他資料 | ||
| PDF 257 KB | Price Increase Notice | ||
| PDF 227 KB | Price Increase Notice | ||
| PDF 363 KB | Product Advisory | ||
| PDF 219 KB | 製品変更通知 | ||
| PDF 152 KB | 製品変更通知 | ||
17 items
|
|||
