Renesas offers the widest selection of low-to-high resolution digital potentiometers (DCPs) in single, dual and quad configurations that are accurate, easy to adjust and reduce manufacturing complexity.

Available in both linear and non-linear tapers, these digital potentiometers replace mechanical potentiometers and trim resistors in applications where digital control allows microprocessor interfacing and extended functionality. Compared to mechanical potentiometers, electronic potentiometers are more accurate, easier to adjust and reduce manufacturing complexity.

Analog Products

セレクションテーブル

    Processing table
    型名
    Resistance Taper
    Taps (#)
    Resistance Options (kΩ)
    Channels (#)
    Interface
    Memory Type
    Supply Voltage Vcc Range
    Supply Current Icc (µA)
    Single Supply Voltage Range (V)
    Dual Supply Range (V)
    Wiper Current (mA)
    Wiper Resistance (ohms)
    VL Terminal Voltage (Min) (V)
    VL Terminal Voltage (Max) (V)
    End-to-End Temperature Coefficient (ppm/°C)
    Middlepoint Ratiometric Tempco
    Advanced Features
    Qualification Level
    Lead Count (#)
    Pkg. Type
    ISL22316
    Low Noise, Low Power I2C® Bus, 128 Taps    		 Linear 128 10 1 I2C Nonvolatile 2.7 to 5.5 5 0 - 5.5 3 70 0 5.5 50 4 3 terminal DCP with shutdown feature Standard 10 MSOP, TDFN

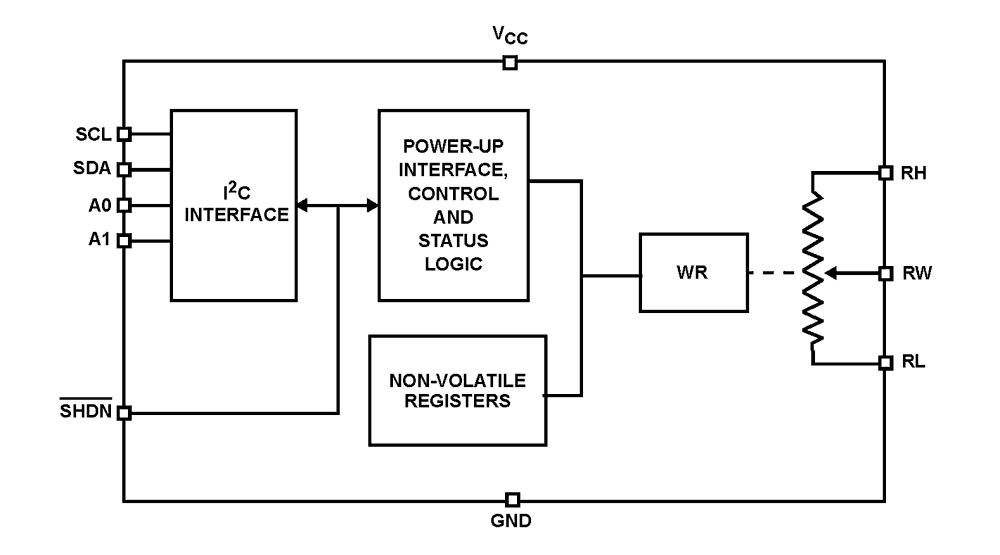

    ISL22316WM
    Single Digitally Controlled Potentiometer (XDCP™), Low Noise, Low Power I2C® Bus, 128 Taps    		 Linear 128 10 1 I2C Nonvolatile 2.7-5.5 5 0 - 5.5 3 70 50 Standard 10 MSOP
    ISL22317
    Precision Single Digitally Controlled Potentiometer (XDCP™) Low Noise, Low Power, I2C™ Bus, 128 Taps    		 Linear 128 10 1 I2C Nonvolatile 2.7 to 5.5 500 0 - 5.5 3 0 0 5.5 50 10
    1% tolerance, external resistor tempco tracking and more...
    		 Standard 10 TDFN

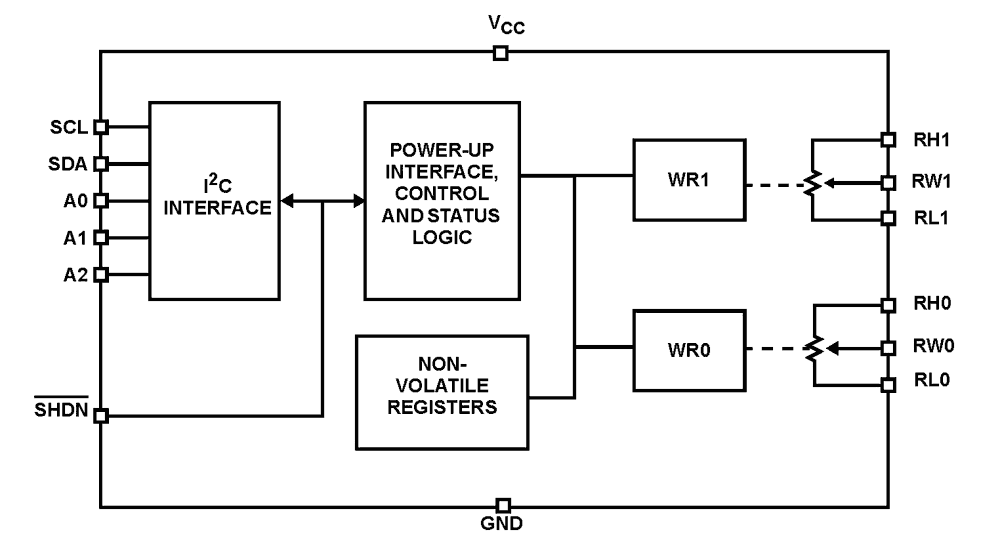

    ISL22326
    Dual Digitally Controlled Potentiometers (XDCP™), Low Noise, Low Power, I2C™ Bus, 128 Taps    		 Linear 128 10 2 I2C Nonvolatile 2.7 to 5.5 5 0 - 5.5 3 70 0 5.5 50 4 3 terminal DCP with 6 bytes general purpose EEPROM Standard 16, 14 QFN, TSSOP

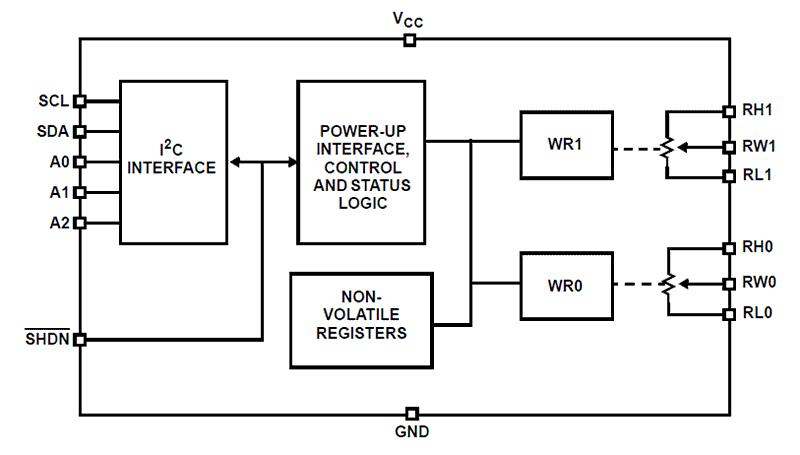

    ISL22326WM
    Dual Digitally Controlled Potentiometers (XDCP™) Low Noise, Low Power, I2C® Bus, 128 Taps    		 Linear 128 10 2 I2C Nonvolatile 2.7-5.5 5 0 - 5.5 5 70 50 Standard 14 TSSOP

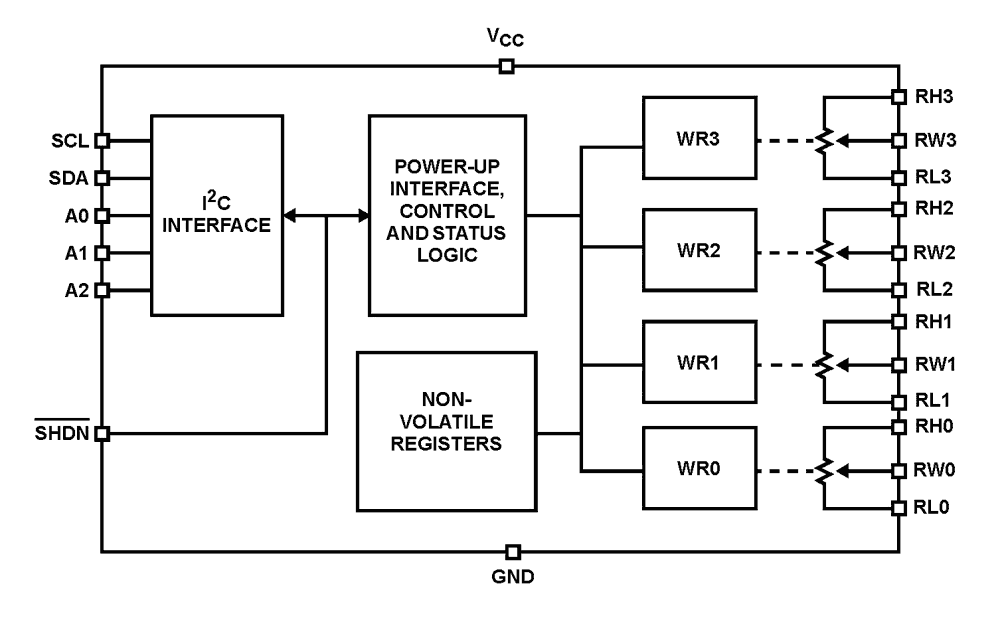

    ISL22346
    Quad Digitally Controlled Potentiometers (XDCP™); Low Noise, Low Power I2C™ Bus, 128 Taps    		 Linear 128 50, 10 4 I2C Nonvolatile 2.7 to 5.5 5 0 - 5.5 3 70 0 5.5 50 4 3 terminal DCP with shutdown feature Standard 20 TQFN, TSSOP
    ISL22346WM
    Quad Digitally Controlled Potentiometers (XDCP™), Low Noise, Low Power I2C® Bus, 128 Taps    		 Linear 128 10 4 I2C Nonvolatile 2.7-5.5 5 0 - 5.5 3 70 50 Standard 20 TSSOP

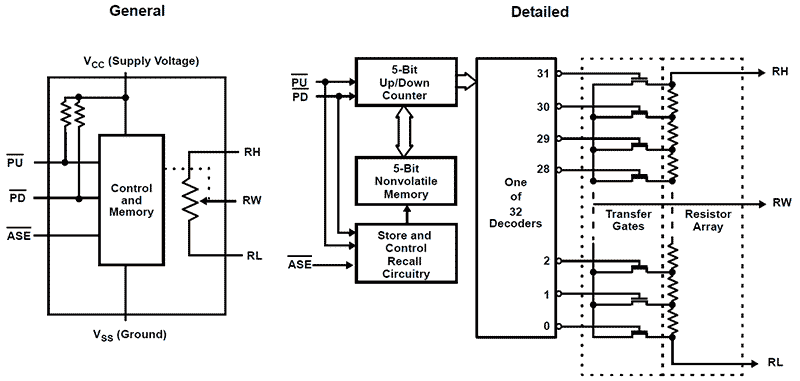

    ISL22511
    Single Push Button Controlled Potentiometer (XDCP™), Low Noise, Low Power, 32 Taps, PushButton Controlled Potentiometer    		 Linear 32 10 1 Pushbutton Nonvolatile 2.7 to 5.5 0.6 0 - 5.5 3 130 0 5.5 80 25 EEPROM autostore mode and shutdown mode Standard 10 uTQFN
    ISL23315
    Single, Low Voltage Digitally Controlled Potentiometer (XDCP™)    		 Linear 256 100 1 I2C Volatile 1.7 to 5.5 2.5 0 - 5.5 3 70 0 5.5 70 2.3 VLOGIC 1.2V to 5.5V; multiple device per bus Standard 10 MSOP, uTQFN
    ISL23318
    Single, 128-taps Low Voltage Digitally Controlled Potentiometer (XDCP™)    		 Linear 128 100, 10 1 I2C Volatile 1.7 to 5.5 18 0 - 5.5 3 70 0 5.5 70, 175 8 , 4 , 2.3 VLOGIC 1.2V to 5.5V Standard 10 MSOP, uTQFN
    ISL23325
    Dual, 256-Tap, Low Voltage Digitally Controlled Potentiometer (XDCP™)    		 Linear 256 100, 10 2 I2C Volatile 1.7 to 5.5 3 0 - 5.5 3 70 0 5.5 45, 125 8 , 4 , 2.3 VLOGIC 1.2V to 5.5V; multiple device per bus Standard 16, 14 TSSOP, uTQFN
    ISL23328
    Dual, 128-Tap, Low Voltage Digitally Controlled Potentiometer (XDCP™)    		 Linear 128 10 2 I2C Volatile 1.7 to 5.5 3 0 - 5.5 3 70 0 5.5 125 8 , 4 , 2.3 VLOGIC 1.2V to 5.5V; multiple device per bus Standard 16 uTQFN
    ISL23415
    Single, Low Voltage Digitally Controlled Potentiometer (XDCP™)    		 Linear 256 100 1 SPI Volatile 1.7 to 5.5 2.5 0 - 5.5 3 70 0 5.5 70 8 , 4 , 2.3 VLOGIC 1.2V to 5.5V; multiple device per bus Standard 10 MSOP, uTQFN

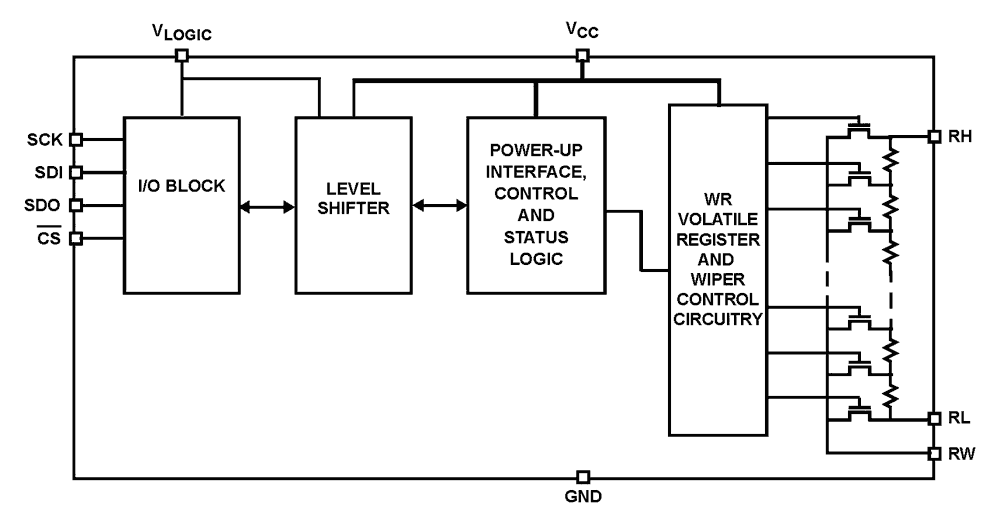

    ISL23418
    Single, 128-Tap, Low Voltage Digitally Controlled Potentiometer (XDCP™)    		 Linear 128 50 1 SPI Volatile 1.7 to 5.5 100 0 - 5.5 3 70 0 5.5 85 8 , 4 , 2.3 VLOGIC 1.2V to 5.5V; Daisy Chainable to minimize # I/0 pins on microcontroller Standard 10 MSOP

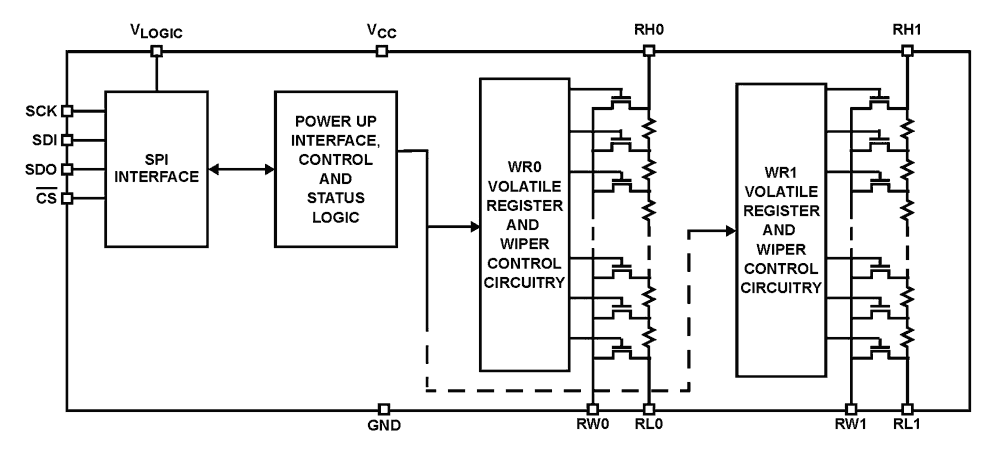

    ISL23425
    Dual, 256-Tap, Low Voltage Digitally Controlled Potentiometer (XDCP™)    		 Linear 256 100, 10 2 SPI Volatile 1.7 to 5.5 4 0 - 5.5 3 70 0 5.5 45, 125 8 , 4 , 2.3 VLOGIC 1.2V to 5.5V; Daisy Chainable to minimize # I/0 pins on microcontroller Standard 14, 16 TSSOP, uTQFN

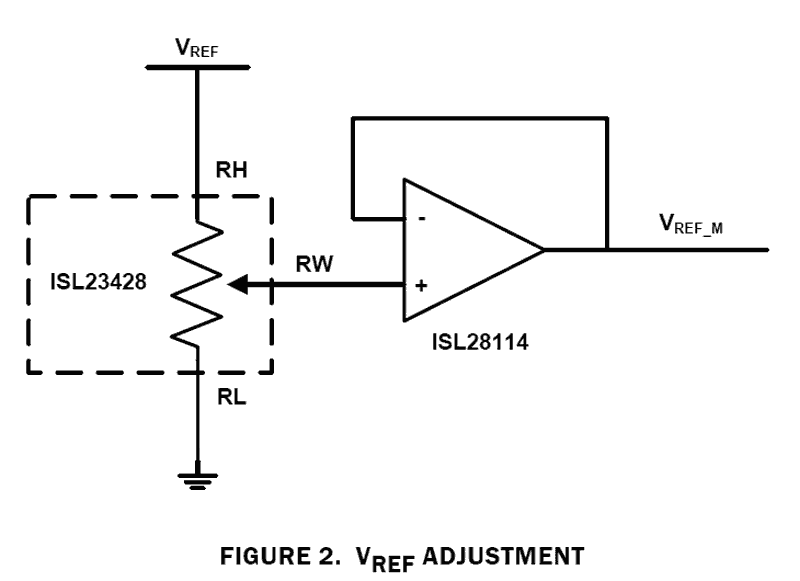

    ISL23428
    Dual, 128-Tap, Low Voltage Digitally Controlled Potentiometer (XDCP™)    		 Linear 128 10 2 SPI Volatile 1.7 to 5.5 4 0 - 5.5 3 70 0 5.5 125 8 , 4 , 2.3 VLOGIC 1.2V to 5.5V; Daisy Chainable to minimize # I/0 pins on microcontroller Standard 14 TSSOP
    ISL23511
    Low Noise, Low Power, 32 Taps, Push Button Controlled Potentiometer    		 Linear 32 10 1 Pushbutton Volatile 2.7 to 5.5 0.6 0 - 5.5 3 130 0 5.5 80 25 Shutdown mode and auto increment Standard 8 SOICN
    ISL90727
    シングル揮発性128タップ・ディジタル制御ポテンショメータ(XDCP™)    		 Linear 128 50, 10 1 I2C Volatile 2.7 to 5.5 0.5 0 - 5.5 3 85 0 5.5 45 15 Same as ISL90728 with different I2C address; RL connected to GND Standard 6 SC70
    ISL90728
    シングル揮発性128タップ・ディジタル制御ポテンショメータ(XDCP™)    		 Linear 128 50, 10 1 I2C Volatile 2.7 to 5.5 0.5 0 - 5.5 3 85 0 5.5 45 15 Same as ISL90727 with different I2C address; RL connected to GND Standard 6 SC70
    ISL90842
    Quad Digitally Controlled Potentiometers (XDCP™)    		 Linear 256 50 4 I2C Volatile 2.7 to 5.5 5 0 - 5.5 3 70 0 5.5 45 4 Rheostat - RL floating Standard 14 TSSOP

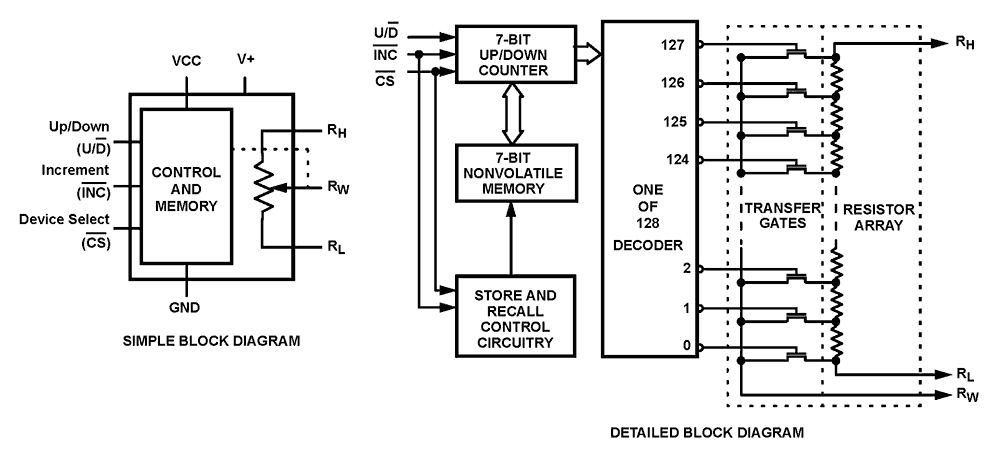

    ISL95310
    Digitally Controlled Potentiometer (XDCP™)    		 Linear 128 50 1 3-Wire (Up/Down) Nonvolatile 2.7 to 5.5 5 0 - 13.2 8 - 13.2 3 70 0 13.2 45 4 Dual supply required to obtain terminal voltage higher than Vcc Standard 10 MSOP

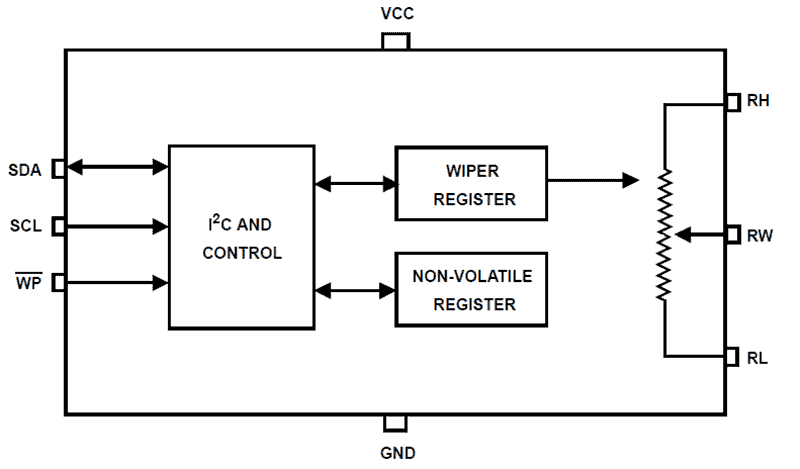

    ISL95810
    Single Digitally Controlled Potentiometer (XDCP™)    		 Linear 256 50, 2.5 1 I2C, I2C Nonvolatile 2.7 to 5.5 5 0 - 5.5, 0 to 5.5, 5.5 3 70 0 5.5 45 4 Same as ISL90810 with memory Standard 8 MSOP, TDFN

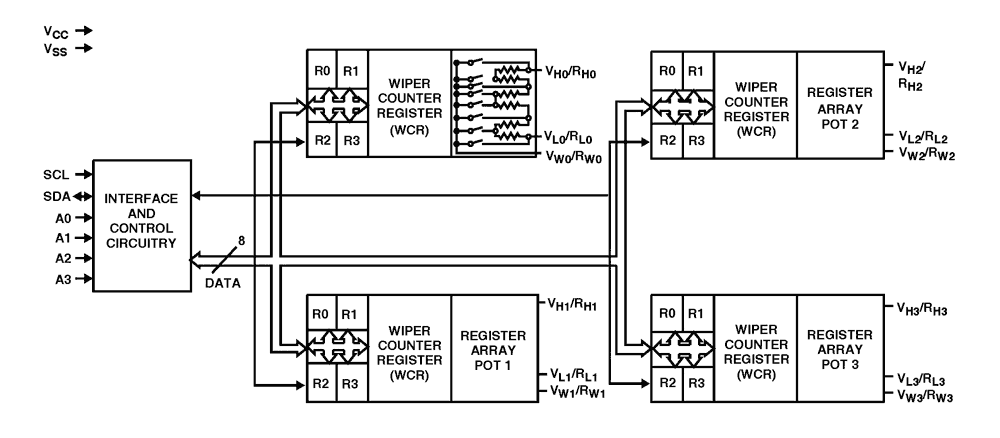

    X9241A
    Quad Digital Controlled Potentiometers (XDCP™), Non-Volatile/Low Power/2-Wire/64 Taps    		 Linear 64 10, 50, 2 4 2-Wire Nonvolatile 4.5 to 5.5 200 3 40 -3 5.5 300 20 Integrated charge pump to allow for single supply to swing -3V to 5.5V Standard 20 SOICW, TSSOP
    X9250
    Quad Digitally Controlled Potentiometer (XDCP™)    		 Linear 256 100, 50 4 SPI Nonvolatile 2.7 to 5.5 5 -2.7 - 5.5 7.5 150 -5.5 5.5 300 20 Standard 24 SOICW, TSSOP
    X9251
    Quad Digitally-Controlled (XDCP™) Potentiometer    		 Linear 256 50 4 SPI Nonvolatile 2.7 to 5.5 50 0 - 5.5 4.4 200 0 5.5 300 0 Standard 24 TSSOP
    X9252
    Quad Digitally-Controlled (XDCP™) Potentiometer    		 Linear 256 10, 2 4 2-Wire, 3-Wire (Up/Down) Nonvolatile 2.7 to 5.5 100 0 - 5.5 3 50 0 5.5 300 20 Interface configured to allow I2C to function like U/D Standard 24 TSSOP

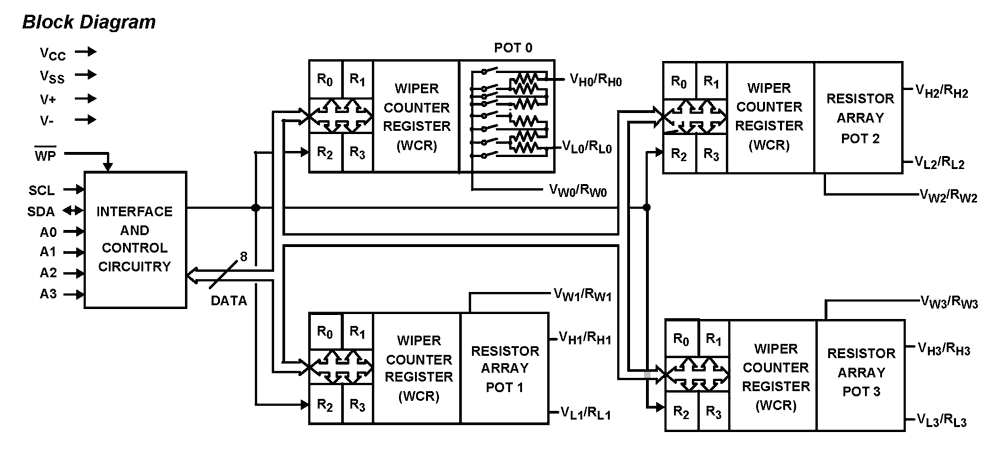

    X9258
    Low Noise, Low Power, 2-Wire Bus, 256 Taps Quad Digital Controlled Potentiometer (XDCP™)    		 Linear 256 100, 50 4 2-Wire Nonvolatile 2.7 to 5.5 5 -2.7 - 5.5 7.5 40 -5.5 5.5 300 20 Standard 24 SOICW, TSSOP
    X9259
    Quad Digitally Controlled (XDCP™)Potentiometers    		 Linear 256 50 4 2-Wire Nonvolatile 2.7 to 5.5 5 0 - 5.5 3 220 0 5.5 300 20 Standard 24 TSSOP
    X9271
    Single Digitally-Controlled (XDCP™) Potentiometer    		 Linear 256 50 1 SPI Nonvolatile 2.7 to 5.5 5 0 - 5.5 3 150 0 5.5 300 20 Standard 14 TSSOP
    X9313
    Digitally Controlled Potentiometer (XDCP™), Linear, 32 Taps, 3 Wire Interface, Terminal Voltages ± VCC    		 Linear 32 50, 10, 1 1 3-Wire (Up/Down) Nonvolatile 3.0 to 5.5 200 4.4 40 -5.5 5.5 300 20 Integrated charge pump to allow for single supply to swing -5.5V to 5.5V Standard 8 MSOP, SOICN

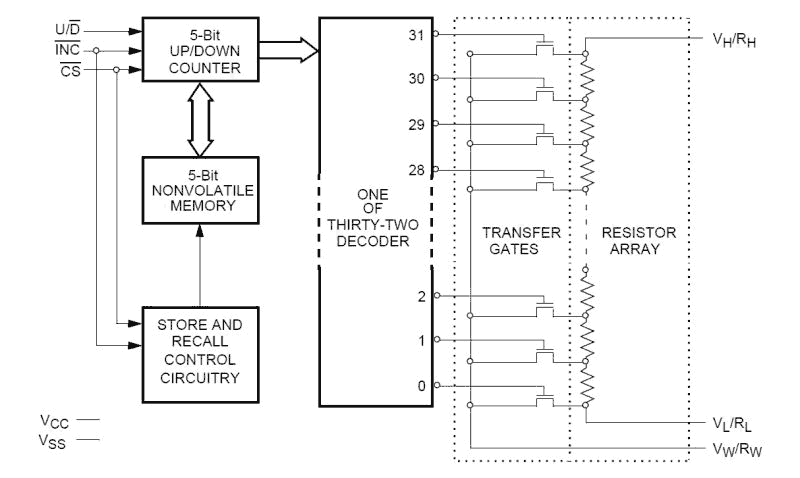

    X9314
    Single Digitally Controlled Potentiometer (XDCP™)    		 Logarithmic 32 10 1 3-Wire (Up/Down) Nonvolatile 3.0 to 5.5 500 4.4 40 -5.5 5.5 600 20 Integrated charge pump to allow for single supply to swing -5.5V to 5.5V Standard 8 SOICN

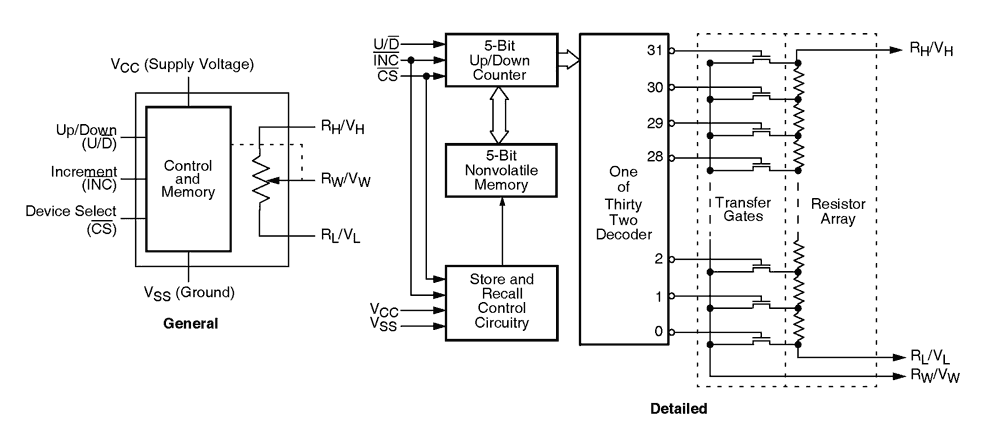

    X9315
    Digitally Controlled Potentiometer (XDCP™)    		 Linear 32 100, 10 1 3-Wire (Up/Down) Nonvolatile 2.7 to 5.5 1 0 - 5.5 3.75 200 0 5.5 300 20 Standard 8 MSOP, SOICN
    X9317
    Digitally Controlled Potentiometer (XDCP™)    		 Linear 100 50, 10 1 3-Wire (Up/Down) Nonvolatile 2.7 to 5.5 5 0 - 5.5 4.4 200 0 5.5 300 20 Standard 8 MSOP, SOICN, TSSOP

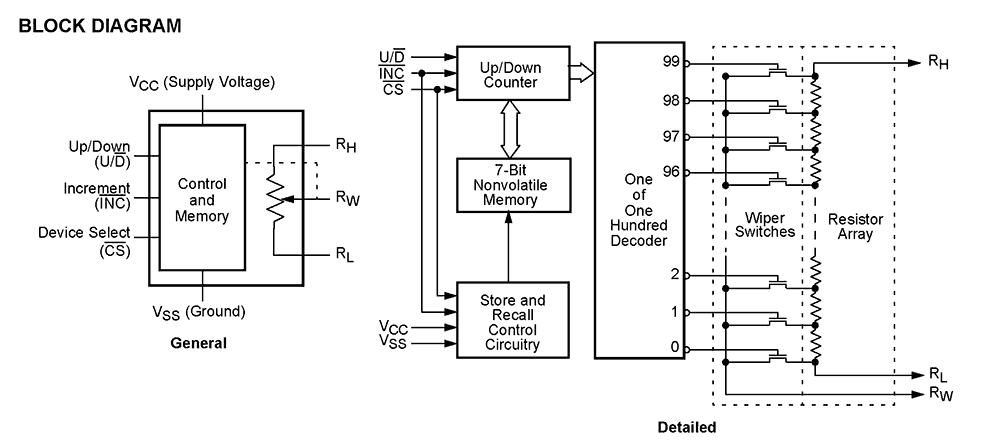

    X9318
    Digitally Controlled Potentiometer (XDCP™)    		 Linear 100 10 1 3-Wire (Up/Down) Nonvolatile 4.5 to 5.5 300 0 - 8 3 40 0 8 300 20 Internal charge pump to generate terminal voltage capability greater than VCC Standard 8 SOICN
    X9401
    Quad, 64 Tap, Digitally Controlled Potentiometer (XDCP™)    		 Linear 64 10 4 SPI Nonvolatile 2.7 to 5.5 3 0 - 5.5 6 150 0 5.5 300 20 Standard 24 SOICW, TSSOP
    X9511
    Single Digitally-Controlled (XDCP™) Potentiometer (Push Button Controlled)    		 Linear 32 10 1 Pushbutton Nonvolatile 4.5 to 5.5 100 0 - 5.5 1 40 -5 5 300 20 Standard 8 SOICN

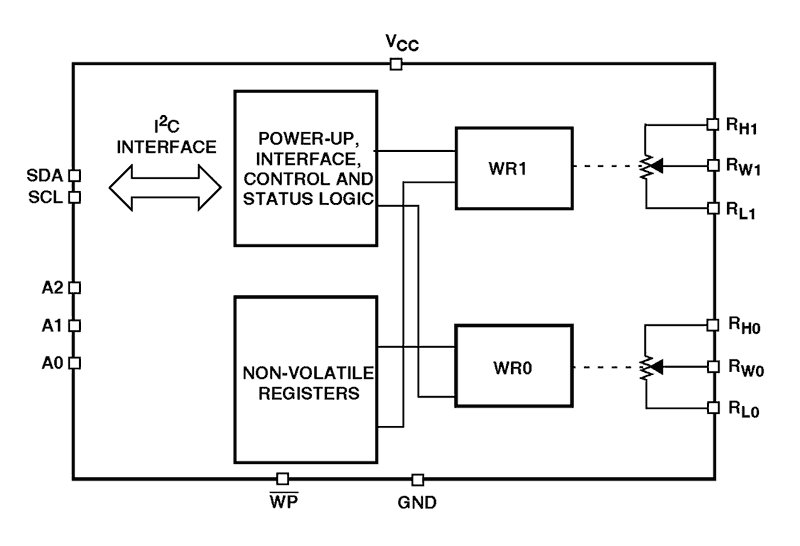

    X95820
    Dual Digital Controlled Potentiometers (XDCP™); Low Noise/Low Power/2-Wire Bus/256 Taps    		 Linear 256 50, 10 2 I2C Nonvolatile 2.7 to 5.5 5 0 - 5.5 3 70 0 5.5 45 4 Dual version of ISL95810 Standard 14 TSSOP
    X95840
    Quad Digital Controlled Potentiometers (XDCP™); Low Noise/Low Power/I2C® Bus/256 Taps    		 Linear 256 50, 10 4 I2C Nonvolatile 2.7 to 5.5 5 0 - 5.5 3 70 0 5.5 45 4 Quad version of ISL95810 Standard 20 TSSOP
    X9C102
    Digitally Controlled Potentiometer (XDCP™)    		 Linear 100 1 1 3-Wire (Up/Down) Nonvolatile 4.5 to 5.5 750 0 - 5.5 4.4 40 -5 5 600 20 Integrated charge pump to allow for single supply to swing -5.5V to 5.5V Standard 8 SOICN
    X9C103
    Digitally Controlled Potentiometer (XDCP™)    		 Linear 100 10 1 3-Wire (Up/Down) Nonvolatile 4.5 to 5.5 750 0 - 5.5 4.4 40 -5 5 300 20 Integrated charge pump to allow for single supply to swing -5.5V to 5.5V Standard 8 SOICN
    X9C104
    Digitally Controlled Potentiometer (XDCP™)    		 Linear 100 100 1 3-Wire (Up/Down) Nonvolatile 4.5 to 5.5 750 0 - 5.5 4.4 40 -5 5 300 20 Integrated charge pump to allow for single supply to swing -5.5V to 5.5V Standard 8 SOICN
    X9C503
    Digitally Controlled Potentiometer (XDCP™)    		 Linear 100 50 1 3-Wire (Up/Down) Nonvolatile 4.5 to 5.5 200 0 - 5.5 4.4 40 -5 5 300 20 Integrated charge pump to allow for single supply to swing -5.5V to 5.5V Standard 8 SOICN
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    ドキュメント

    タイトル 分類 日付
    R14AN0002: General Digitally Controlled Potentiometers
    PDF330 KB
    アプリケーションノート
    AN1481: Using DCP for Video Gain and Cable Compensation
    PDF820 KB
    アプリケーションノート
    AN1425: Get Precision Performance from a Digitally Controlled Potentiometer (DCP)
    PDF281 KB
    アプリケーションノート
    AN1151: Interfacing the X9241 E2POT Digital Potentiometer to 8051 Microcontrollers
    PDF207 KB
    アプリケーションノート
    AN144: Audio Xcellence: XDCP Signal Integrity Report (Audio Characterization Report)
    PDF717 KB
    アプリケーションノート
    AN139: Designing Power Supplies Using Intersil's XDCP Mixed Signal Products
    PDF750 KB
    アプリケーションノート
    AN133: Putting Analog On The Bus
    PDF534 KB
    アプリケーションノート
    AN1149: Application of Intersil Digitally Controlled Potentiometers (XDCP) as Hybrid Analog/Digital Feedback System Control Elements
    PDF467 KB
    アプリケーションノート
    AN1158: Designing with Intersil Digitally Controlled Potentiometers (XDCPs)
    PDF398 KB
    アプリケーションノート
    AN136: Using Intersil Digitally Controlled Potentiometers in Commercial RF Power Amplifier Applications
    PDF393 KB
    アプリケーションノート
    AN1157: Power Supply and DC to DC Converter Control using Intersil Digitally Controlled Potentiometers (XDCPs)
    PDF280 KB
    アプリケーションノート
    AN50: Op Amp Gain and Offset Trim using Intersil Digitally Controlled Potentiometers (XDCPs)
    PDF292 KB
    アプリケーションノート
    AN155: Advanced Mixed-Signal-Approach for Modern HVAC Systems
    PDF310 KB
    アプリケーションノート
    AN124: A Primer on Digitally-Controlled Potentiometers
    PDF324 KB
    アプリケーションノート
    AN73: Improving Analog Signal Monitors with XDCPs
    PDF221 KB
    アプリケーションノート
    AN88: Evaluation Circuits for XDCP
    PDF275 KB
    アプリケーションノート
    AN152: Achieving Excellent Audio Performance in Digitally Controlled Pots
    PDF239 KB
    アプリケーションノート
    AN1155: Shaft Encoder Drives Multiple Intersil Digitally Controlled Potentiometers (XDCPs)
    PDF239 KB
    アプリケーションノート
    AN1156: Tone, Balance, and Volume Control using a Quad XDCP
    PDF209 KB
    アプリケーションノート
    AN1145: A Compendium of Application Circuits for Intersil's Digitally-Controlled (XDCP) Potentiometers
    PDF384 KB
    アプリケーションノート
    AN1154: Remotely Adjustable Voltage Regulators using XDCPs
    PDF236 KB
    アプリケーションノート
    AN1173: DC/DC Module Trim with Digital Potentiometers
    PDF513 KB
    アプリケーションノート
    AN1340: SPI Protocol and Bus Configuration of Multiple DCPs
    PDF362 KB
    アプリケーションノート
    AN1488: Fixed DC/DC Regulator Output Margining Using Digitally Controlled Potentiometer
    PDF249 KB
    アプリケーションノート
    AN1566: Video Fader With DCP-Digital Control
    PDF491 KB
    アプリケーションノート
    AN1689: Perform Coarse and Fine Correction with Less Costly Dual DCPs
    PDF200 KB
    アプリケーションノート
    AN1690: Electronics Meets the Challenges of Patient Monitors
    PDF377 KB
    アプリケーションノート
    AN1693: Choose a Digitally-Controlled Potentiometer Instead of a DAC
    PDF241 KB
    アプリケーションノート
    AN1699: Digital Control Potentiometers Offer Hidden Benefits for Many Designs
    PDF251 KB
    アプリケーションノート
    AN1701: Dual Audio Potentiometers Deliver Power Savings for Consumer Audio Devices
    PDF381 KB
    アプリケーションノート
    AN92: Working with the Intersil 3-Wire DCP Devices
    PDF259 KB
    アプリケーションノート
    AN9675: A Tutorial in Coherent and Windowed Sampling with A/D Converters
    PDF503 KB
    アプリケーションノート
    AN9705: A Theoretical View of Coherent Sampling
    PDF287 KB
    アプリケーションノート
    アナログIC　カタログ
    PDF5.10 MBEnglish
    カタログ
    TB458: Converting a Fixed PWM to an Adjustable PWM
    PDF315 KB
    その他資料

    ダウンロード

    タイトル 分類 日付
    DCP Evaluation Board Software v6.03
    EXE2.56 MB
    ライブラリ
    AN1173 DC/DC Module Trim Vo Calculator
    XLS27 KB
    ソフトウェア／ツール－その他

    Tools & Resources

    DCP FAQs
