Overview

The RL78/G1H microcontroller supports IEEE802.15.4e/g and has industry’s lowest power consumption - min. 5.8 mA (3.3 V) at Stand-by mode in RF receipt. The balun circuit and filter circuit make the antenna circuit design easy. And it can be reduced external parts for cost reduction. It can be reduced CPU load and can be made easy development by built-in hardware functions for IEEE802.15.4e/g compliant especially Wi-SUN. We also offer transceiver RAA604S00 conforming to IEEE802.15.4e/g that can be used in combination with microcontroller. (The document is here.).

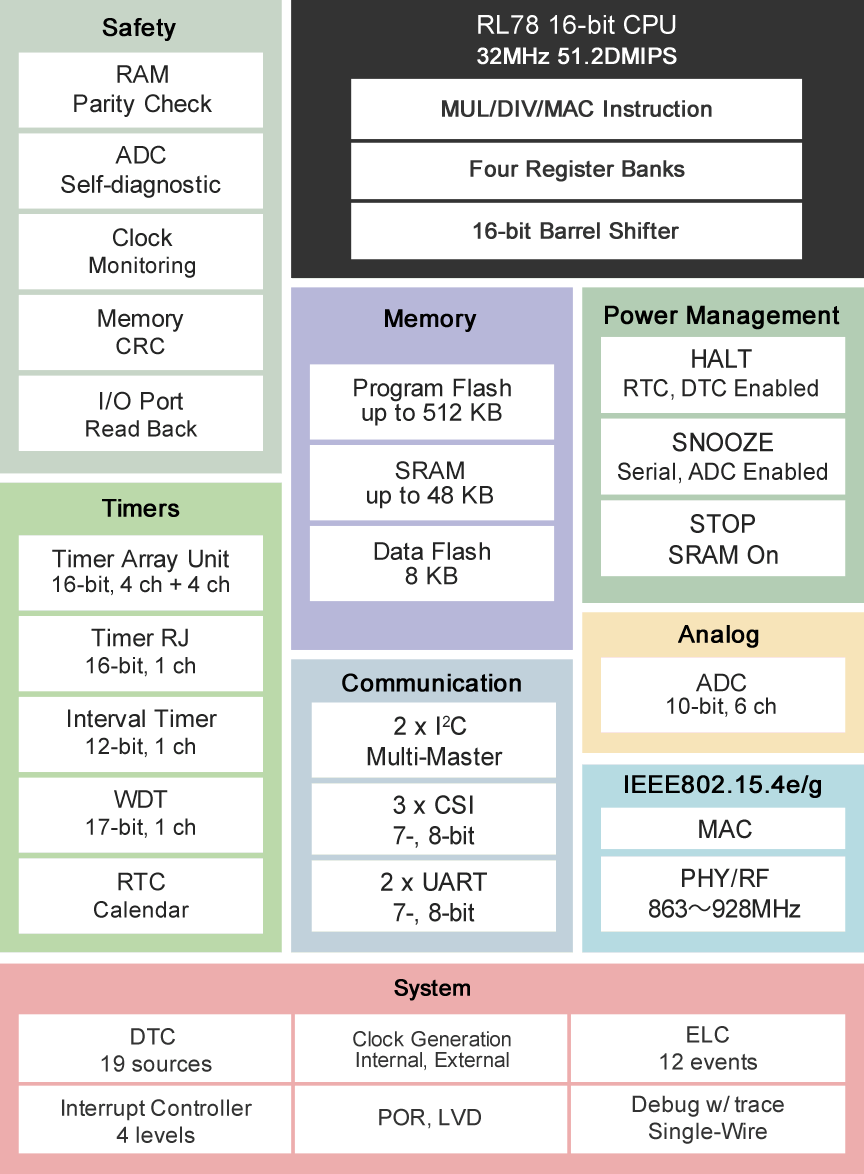

RL78/G1H Block Diagram

[RL78/G1H]
- CPU: RL78 core, Max. 32MHz
- RF frequency range: 863 to 928 MHz
- Data rate: 2FSK/GFSK; up to 300 kbps
- Voltage: 1.8V to 3.6V
- Package: 64-pin HVQFN
- Memory: SRAM Max. 48KB, Program Flash Max. 512KB
- Timer: 16-bit Timer (ch) x 9, Watchdog Timer (ch) x 1, 12-bit Interval Timer x 1 ch
- PWM:
- Analog function: 10-bit A/D Converter (ch) x 6
- On-chip Oscillator Freq. (MHz): High-Speed: 32, 24, 16, 12, 8, 4, 1MHz
  Low-speed: 15kHz
- Others: RTC, Power-On Reset, Low Voltage Detection

[RAA604S00]
- RF frequency range: 863 to 928 MHz
- Data rate: 2FSK/GFSK; up to 300 kbps
- Timer: 32-bit timer function
- Voltage: 1.8V to 3.6V
- Package: 32-pin HVQFN (5×5) (0.5 mm pitch)

	IEEE 802.15.4g-based Battery-Powered Sub-GHz Wireless Communication
	Power Meter with RF Communication
	Robotic Vacuum
	Wi-SUN FAN-Based High Output Sub-GHz Wireless Communication

Home Appliance
Metering
Sub-GHz wireless communication solutions
