1.8 V to 3.3 V 1:4 Crystal Input to LVCMOS Output High-Performance Clock Fanout Buffer with OE
Jump to Page Section:
Overview
Description

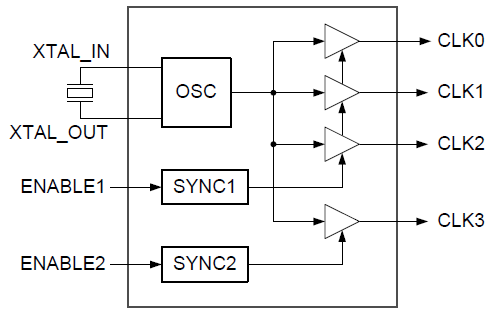

The 5P83904 is a high-performance, 1-to-4 crystal input to LVCMOS fanout buffer with output enable pins. This device accepts a fundamental mode crystal from 10 MHz to 40 MHz and outputs LVCMOS clocks with best-in-class phase noise performance.
The 5P83904 features a synchronous glitch-free Output Enable function to eliminate any intermediate incorrect output clock cycles when enabling or disabling outputs. It comes in standard TSSOP packages or small QFN packages and can operate from 1.8 V to 3.3 V supplies.
Features
- Four copies of LVCMOS output clocks with best-in-class phase noise performance
- Phase Noise:
Offset Noise Power (3.3 V)- 100 Hz: -131 dBc/Hz
- 1 KHz: -145 dBc/Hz
- 10 KHz: -154 dBc/Hz
- 100 KHz: -161 dBc/Hz
- Operating power supply modes:
- Full 3.3 V, 2.5 V, 1.8 V
- Mixed 3.3 V core / 2.5 V output operating supply
- Mixed 3.3 V core / 1.8 V output operating supply
- Mixed 2.5 V core / 1.8 V output operating supply
- Crystal Oscillator Interface
- Synchronous Output Enable

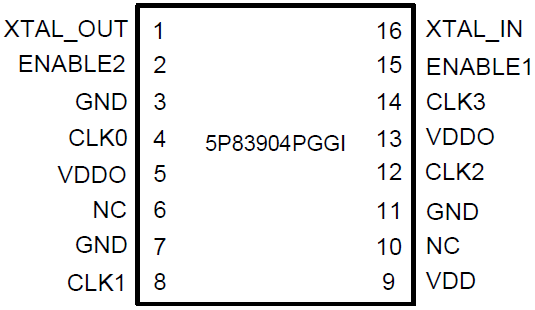

- Packaged in 16-pin TSSOP and QFN packages
- Extended temperature range (-40°C to +105°C)
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| TSSOP | 16 | K | Yes | Tube | Get Samples, | |
| TSSOP | 16 | K | Yes | Reel | ||
| COL | 16 | K | Yes | Cut Tape | Get Samples, | |
| COL | 16 | K | Yes | Reel |
