Overview

Description

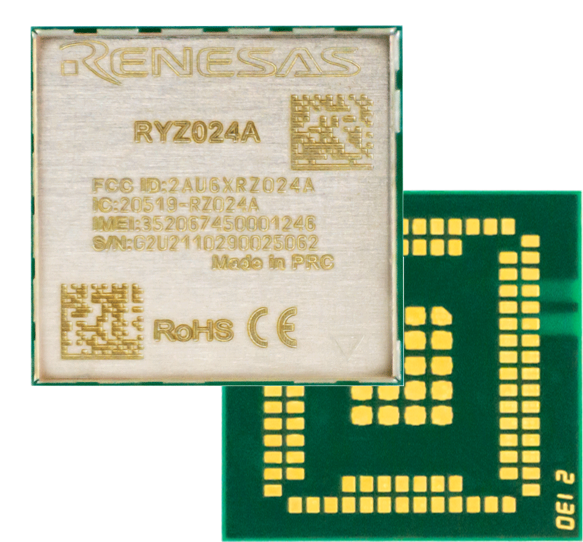

The Renesas RYZ024A module is an all-in-one LTE module supporting category M1 which is upgradable to NB1/NB2 with worldwide deployment and roaming capability.

The module comprises an LTE Cat-M1/NB1/NB2 platform and all other elements necessary for a complete LTE modem system. These include an LTE-optimized transceiver, a single complete RF front-end to support LTE Cat-M1/NB bands worldwide, and key interfaces, all in a single compact LGA package. The RYZ024A module includes a carrier-proven LTE Cat-M1 protocol stack and a comprehensive software infrastructure.

Features

  • Integrated cellular IoT module for LTE Cat-M1
  • 3GPP Release 14 (upgradable to release 15)
  • Proven LTE Cat-M1 software stack
  • AT command interface
  • LGA package with 120 pads
    • 16.3 mm x 17 mm x 1.85 mm
  • uSIM Interface
  • Secure enclave & iUICC/ieUICC
  • EAL5+ Secure Element (SE) capable
  • Voltage RF compliance: 2.5 V to 5.5 V
  • Functional voltage range: 2.2 V to 5.5 V
  • RoHS-compliant, halogen-free
  • Supports power class 3 (+23dBm)

Comparison

RYZ024A RYZ014A
Device Functions Dual band RF front end, Memory, SQN3430 Cat-M1/NB1/NB2 baseband Dual band RF front end, Memory, SQN3330 Cat-M1 baseband
Input Supply Range 2.2 - 5.5 3.1 - 5.5
Comm. Interface Dual (U) SIM, RING, UART(4x High-Speed with flow control), WAKE 32 kHz, GPIO, JTAG, RING, UART (x3, including one reserved), USIM, WAKE
Pkg. Dimensions (mm) 17.0 x 16.3 x 1.85
Pkg. Type MODULE MODULE
Temp. Range -40 to 85°C -40 to 85°C
View Product

Applications

Applications

  • Metering (Electricity/Gas/Water, Automated Meter Reading)
  • Smart Home (HVAC, Thermostats)
  • Infrastructure (Charge Poles, Parking Systems)
  • Industry (Pumps)
  • Agriculture
  • Wearables & Trackers
