Evaluation Kit for IPS2550
The IPS2550STKIT is a compact and intuitive evaluation kit that enables fast and easy evaluation of the IPS2550, the automotive inductive position sensor for high-speed...
Inductive Position Sensor for High-Speed Motor Commutation (Automotive)
Jump to Page Section:
Overview
Description

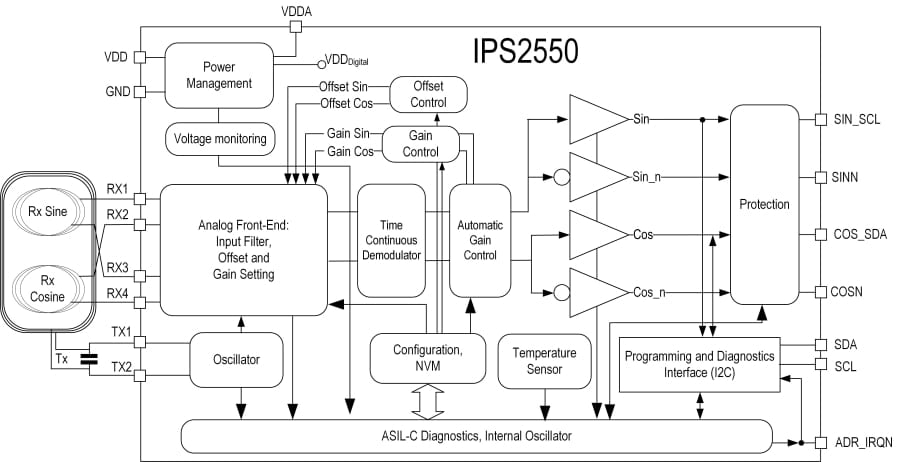

The IPS2550 is an AEC-Q100 Grade 0 automotive-qualified, inductive position sensor IC capable of providing the absolute rotor position as sine and cosine. This IC uses the physical principle of Eddy currents to detect the position of a simple metallic target moving above a set of coils, consisting of one transmitter and two receivers. The output interface can be configured as single-ended, for higher system cost effectiveness, or differential, to better reject common mode disturbers. The IPS2550 can be used for high-speed motor commutation up to 600krpm electrical in the most challenging automotive functional safety-critical applications.
Stray field immunity, lower weight and smaller size, and a substantial BOM optimization make the IPS2550 the key element of the Resolver 4.0, a disruptive solution.
Features
- Interface: Sin/Cos single-ended or differential
- AEC-Q100 Grade 0 automotive qualified
- ISO 26262 up to ASIL-C (D) single
- Temperature range: -40 °C to 160 °C ambient
- Voltage supply: 3.3V ±10% or 5.0V ±10%
- Rotational speed: Up to 600,000 rpm (electrical)
- Propagation delay: <5µs
- Sin/Cos gain mismatch and offset compensation
- Overvoltage, reverse polarity, short-circuit protected
- Digital programming interface: I²C
- 16-TSSOP package with exposed pad
- Embedded Automatic Gain Control (AGC) to compensate environmental variations
Applications
|
Electric Power Steering System |
|
Remote Sensing with Inductive Position Sensor and CAN/LIN |
|
Motor Generator System |
|
xEV Inverter Solution with Inductive Position Sensor (IPS) |
Applications
- Traction e-motors
- Electronic power steering
- Belt starter generator
- Park brake actuator
- Pumps
Documentation
|
|
Date | |
|---|---|---|
| PDF 1.17 MB 日本語 , 简体中文 | Datasheet | |
| PDF 1.25 MB | Other | |
| PDF 1.28 MB | Manual - Development Tools | |
| PDF 224 KB | Schematic | |
| PDF 159 KB | Schematic | |
| PDF 215 KB | Application Note | |
| ZIP 95.19 MB | Training | |
| PDF 3.17 MB | Presentation | |
| PDF 508 KB | Flyer | |
9 items
|
||
Design & Development
Software & Tools
Boards & Kits
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| 13" reel - 4000 IC/reel | TSSOP | 16 | -40 to 160°C | Reel | Get Samples, |
