8M pixel for UHD, 12bit resolution@60fps, HDR Assist, PDAFAssist
Jump to Page Section:
Back to top
Explore ECAD Models
Overview
The RAA462113FYL is an 8M BSI CMOS image sensor for security applications. The sensor features HDR (High Dynamic Range) and PDAF Assist (Phase DetectionAutofocus Assist) functions for performance at high contrast and variable ranges; it supports both MIPI-CSI2 or SLVS output formats, with support to 60fps (12-bit digital output).

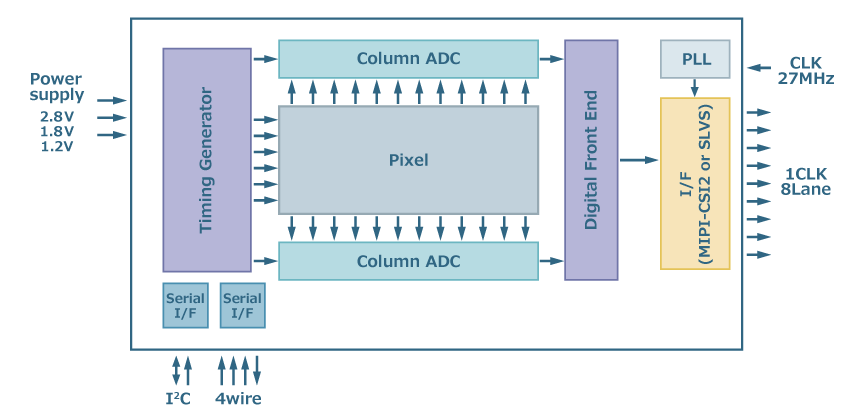

ICs for Camera Block Functional Diagram
Design & Development
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
play_circle_filledVideos & Training
Quick Start to Use Reference Design Kit for 4K and High-speed AF Camera
In this video, we will explain how to use the reference design kit for 4K and high-speed AF camera.
You can set it up and use its camera functions such as RTSP Video Play, zooming control, and exposure control.
Video List
