Package Information
| Pkg. Type | FCQFN |
| Pkg. Code | LOZ |
| Pitch (mm) | 0.4 |
| Lead Count (#) | 32 |
| Pkg. Dimensions (mm) | 3.00 x 5.00 x 0.75 |
Environmental & Export Classifications
| Moisture Sensitivity Level (MSL) | 3 |
| ECCN | EAR99 |
| HTSUS | 8542390001 |
| RoHS (RAA489400A3GNP#HA0) | EnglishJapanese |
| Pb (Lead) Free | Yes |
Product Attributes
| Pkg. Type | FCQFN |
| Carrier Type | Reel |
| Moisture Sensitivity Level (MSL) | 3 |
| Input Voltage Range (V) | 3.8 - 55 |
| Lead Compliant | No |
| Lead Count (#) | 32 |
| Length (mm) | 3 |
| MOQ | 6000 |
| Parametric Category | USB-C & Power Delivery |
| Pb (Lead) Free | Yes |
| Pb Free Category | Pb-Free 100% Matte Tin Plate w/Anneal-e3 |
| Pitch (mm) | 0.4 |
| Pkg. Dimensions (mm) | 3.0 x 5.0 x 0.75 |
| Product Type | USB Type-C Port Controller |
| Qualification Level | Standard |
| Tape & Reel | No |
| Temp. Range | -40 to +105°C |
| Thickness (mm) | 0.75 |
| Width (mm) | 5 |
Description

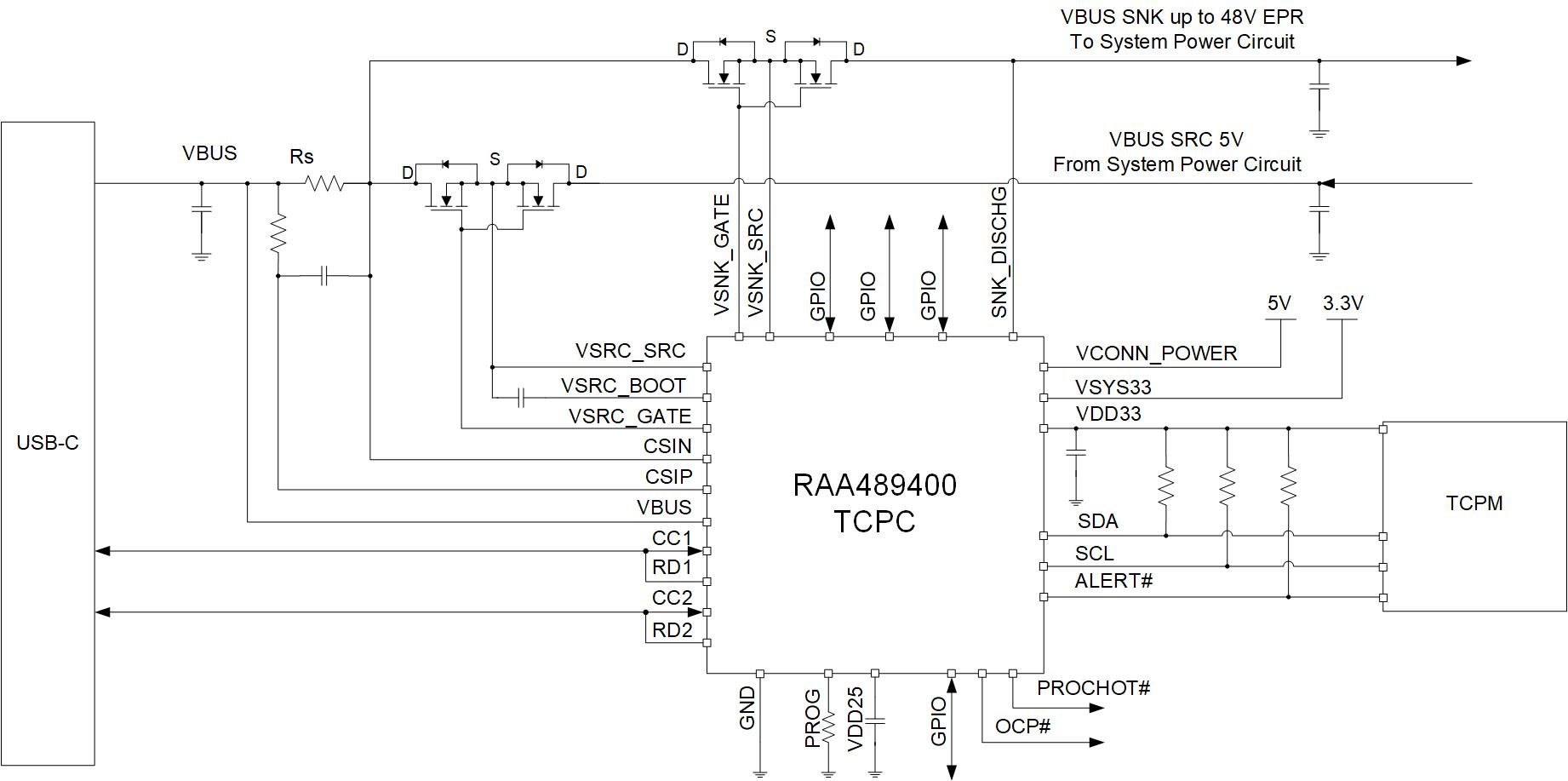

The RAA489400 is a USB Type-C® port controller designed under the USB Type-C Port Controller Interface Specification, USB Type-C Cable and Connector Specification, and USB Power Delivery (USB PD) Specification. A single USB Type-C Port Manager can be combined with multiple RAA489400 devices to implement all USB PD functions, such as power negotiation and Alternate Mode support, for multiple USB Type-C ports. The RAA489400 supports a 60V absolute maximum rating for both a VBUS voltage monitor (with relevant pin functions) and CC1/CC2, enabling a system capable of providing Extended Power Range (EPR) operation up to 240W/48V.
