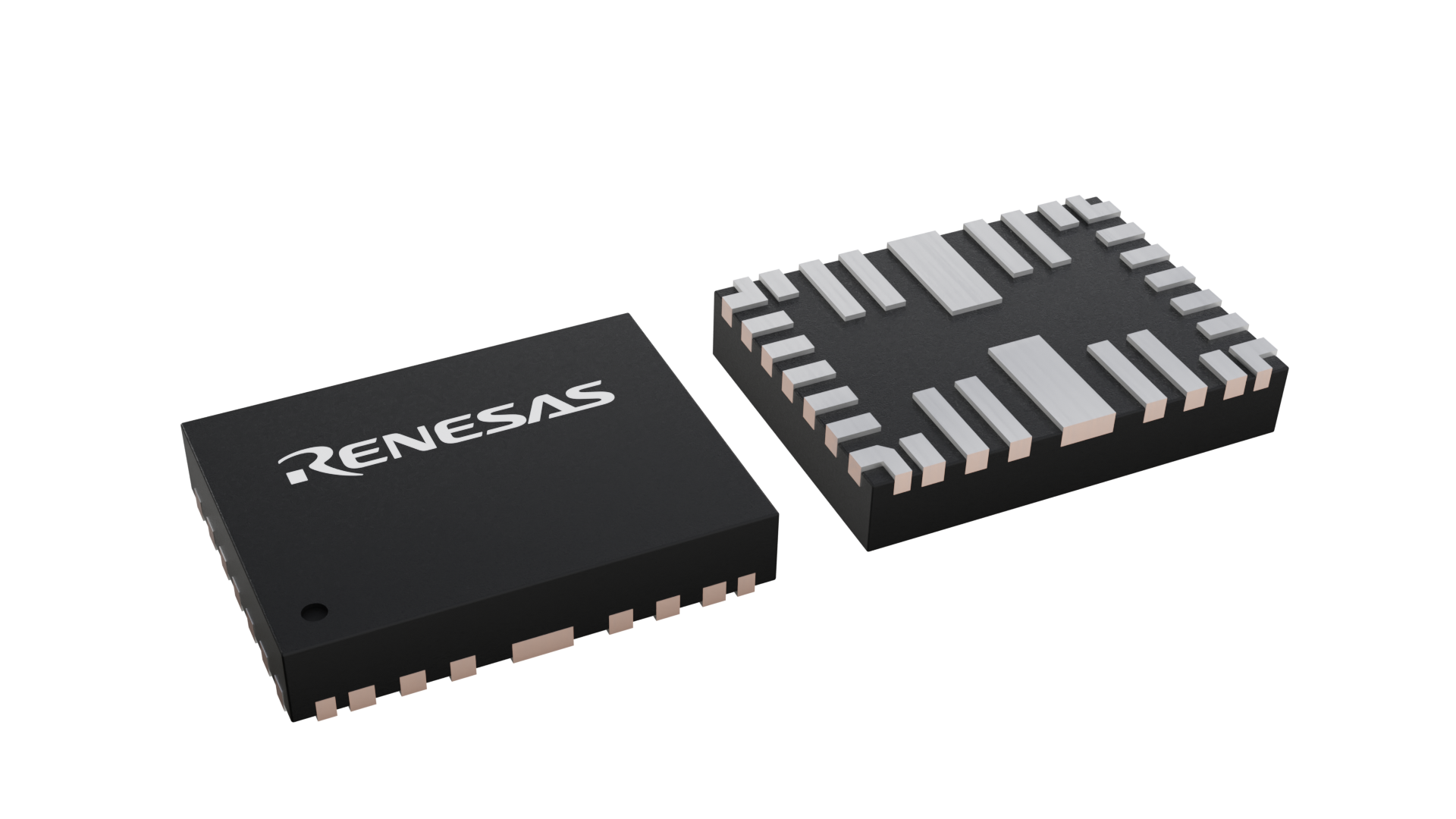

Package Information
| Pkg. Type: | FCQFN |
| Pkg. Code: | FNG28 |
| Lead Count (#): | 28 |
| Pkg. Dimensions (mm): | 4.0 x 3.0 x 0.75 |
| Pitch (mm): | 0.4 |
Environmental & Export Classifications
| Moisture Sensitivity Level (MSL) | 1 |
| Pb (Lead) Free | Yes |
| ECCN (US) | |
| HTS (US) |
Product Attributes
| Lead Count (#) | 28 |
| Carrier Type | Tray |
| Moisture Sensitivity Level (MSL) | 1 |
| Qty. per Reel (#) | 0 |
| Qty. per Carrier (#) | 490 |
| Pb (Lead) Free | Yes |
| Pb Free Category | e3 Sn |
| Temp. Range (°C) | 0 to 70°C |
| Comm. Interface | I2C, I3C |
| Function | DDR5 Client PMIC |
| Input Voltage Range (V) | 4.25 - 5.5 |
| LDOs | 2 |
| Length (mm) | 4.0 |
| MOQ | 490 |
| Outputs (#) | 3 |
| Parametric Category | System PMIC |
| Pitch (mm) | 0.4 |
| Pkg. Dimensions (mm) | 4.0 x 3.0 x 0.75 |
| Pkg. Type | FCQFN |
| Published | No |
| Supply Voltage (V) | 4.25 - 5.5 |
| Switching Regulators | 3 |
| Tape & Reel | No |
| Thickness (mm) | 0.75 |
| Width (mm) | 3.0 |
Resources for P8911
Description
The P8911 is a power management IC (PMIC) designed for notebook, desktop, and embedded computing platforms. This device enables next-generation client platforms to take full advantage of DDR5 memory to realize greater performance, density, and reliability while reducing overall system power. With over 50% reduction in package footprint vs. P8900, the P8911 features power delivery characteristics tailored towards smaller form factor memory modules that reside in systems that may operate on battery power for extended periods.
