Overview

Description

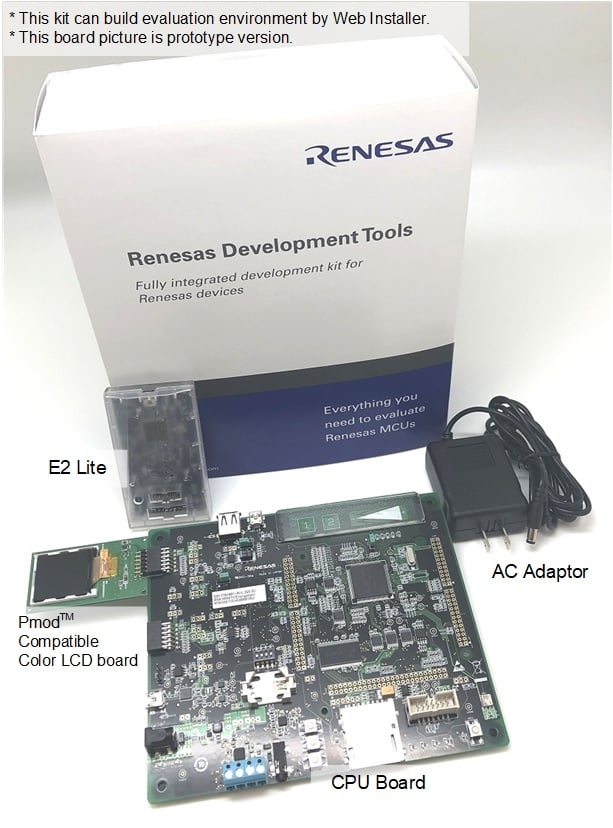

The Renesas Starter Kit+ for RX671 is the perfect starter kit for developers who are new to the RX671 (Code Flash 2MB, Pin Count 144-pin). The kit includes an LCD display module and an on-chip debugging emulator. Download the integrated development environment (CS+ version and e² studio version) from the Renesas website and start evaluating RX671 performance, right after unboxing the Renesas Starter Kit.

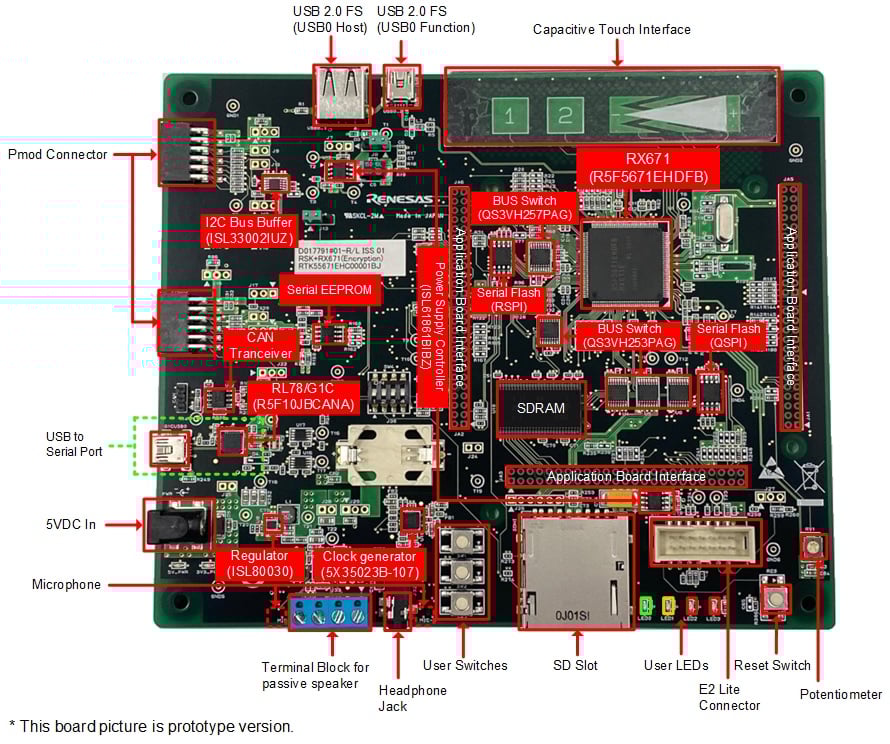

Features

  • Devices: RX671 (R5F5671EHDFB: Supported Encrypt Function, Code Flash 2MB, Pin Count 144-pin)
  • RX671 builds in Trusted Secure IP. AES encryption function and robust key management can be evaluated.
  • Mounts SD slot. SDHI (SD Host Interface) can be evaluated.
  • Touch feature (self-capacitive type) can be evaluated. Download the sample code including project for Touch feature evaluation on Renesas Web site (CS+ version and e² studio version).
  • Mounts Audio circuit. SSIE (Serial Sound Interface) can be evaluated.
  • 1 channel USB Function and 1 channel USB Host can be evaluated.
  • In addition, RSPI (Serial Peripheral Interface) and QSPIX (Quad Serial Peripheral Interface), etc. can be evaluated.
  • Application combining functions using FIT (Firmware Integration Technology) module can be evaluated.
  • Required IBM-PC compatible PC(need USB interface, Processor 1GHz over), OS: Windows 10/8.1(other than the listed OS is not supported)

Applications

Documentation

Design & Development

Software & Tools

Software & Tools

Software title
Software type
Company
QuickConnect Platform
QuickConnect platform enables fast prototyping by providing compatible hardware and software building blocks.
Software and Hardware Development Tools Renesas
1 item

Software Downloads

Type Title Date
Board Description File ZIP 1 KB
PCB Design Files Log in to Download ZIP 828 KB 日本語
Software & Tools - Software Log in to Download ZIP 939.26 MB 日本語
Software & Tools - Software Log in to Download ZIP 2,095.94 MB 日本語
Software & Tools - Other Log in to Download ZIP 554 KB
5 items

Sample Code

Sample Code

Filters
Type Title Date Date
Sample Code
[Toolchains=CC-RX|V3.06.00]
Log in to Download ZIP 55.23 MB Compiler: CC-RX Function: Starter Kit IDE: CS+ for CC
Sample Code
[Toolchains=CC-RX|V3.06.00]
Log in to Download ZIP 54.96 MB Compiler: CC-RX Function: Starter Kit IDE: e2 studio
Sample Code
[Software=RX Driver Package|V1.45],[Toolchains=CC-RX|V3.06;GNURX|8.3.0.202405;IAR Compiler for RX|v.5.10.1]
Log in to Download ZIP 117.66 MB
Application: Consumer Electronics
Compiler: CC-RX, ICCRX IDE: e2 studio, GCC EWRX, IAR EWRX
Sample Code
[Software=RX Driver Package|V1.38],[Toolchains=CC-RX|V3.05.00]
Log in to Download ZIP 211.00 MB 日本語
Application: Consumer Electronics, Industrial
Compiler: CC-RX Function: HMI IDE: e2 studio
Sample Code
[Software=RX Driver Package|V1.38],[Toolchains=CC-RX|V3.05.00]
Log in to Download ZIP 228.95 MB 日本語
Application: Consumer Electronics, Industrial
Compiler: CC-RX Function: HMI IDE: e2 studio
Sample Code Log in to Download ZIP 10.06 MB
Sample Code Log in to Download ZIP 3.30 MB
Application: Consumer Electronics, Industrial
Compiler: CC-RX Function: Communication Interface, HMI IDE: e2 studio
Sample Code Log in to Download ZIP 6.85 MB Compiler: CC-RX Function: BSP, Clock IDE: e2 studio
8 items

Product Options

Applied Filters:

Videos & Training

RX671 HMI+Cloud Single Chip Solution

Introducing a solution that enables HMI and cloud connectivity functions on a single chip using the RX671. This solution provides a reference demo for a comprehensive experience of voice recognition, touch keys, and cloud connectivity. Demo software can be downloaded from the Renesas website. For details, refer to the application note "RX671 Group Voice recognition / Touch and Cloud solution using Renesas Starter Kit+ for RX671 Rev.1.00 - Sample Code (ZIP)".
