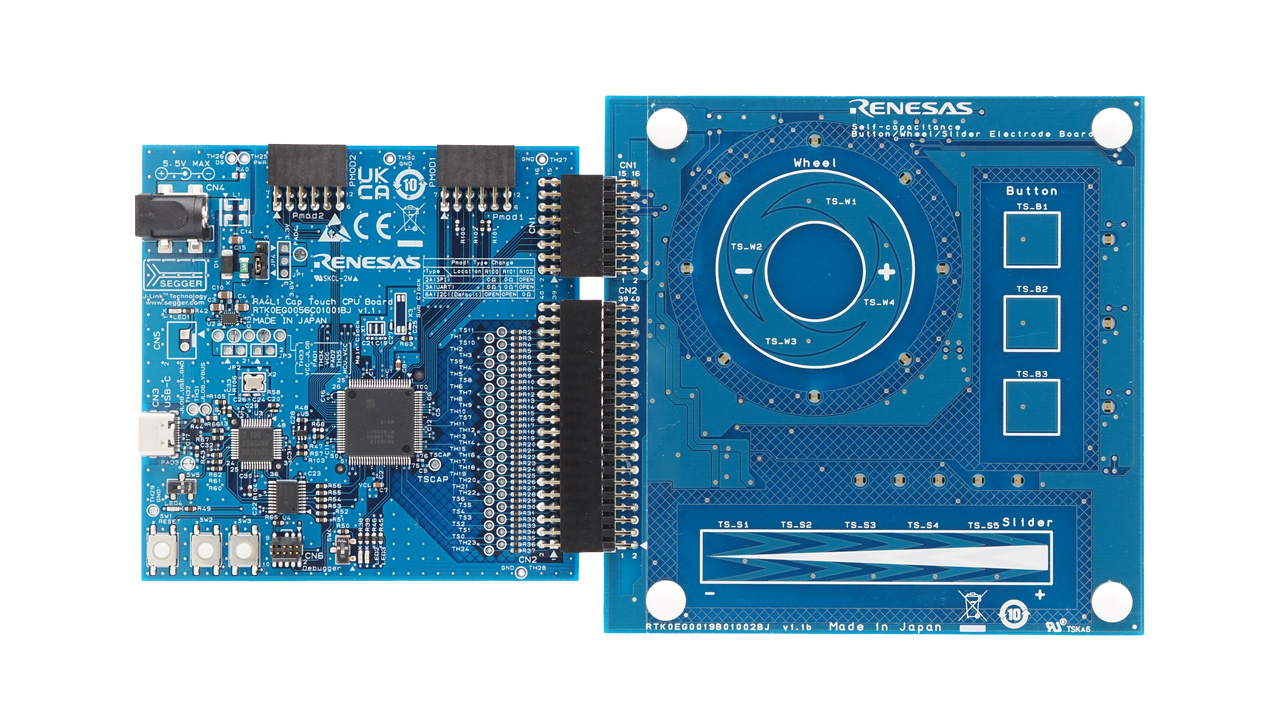

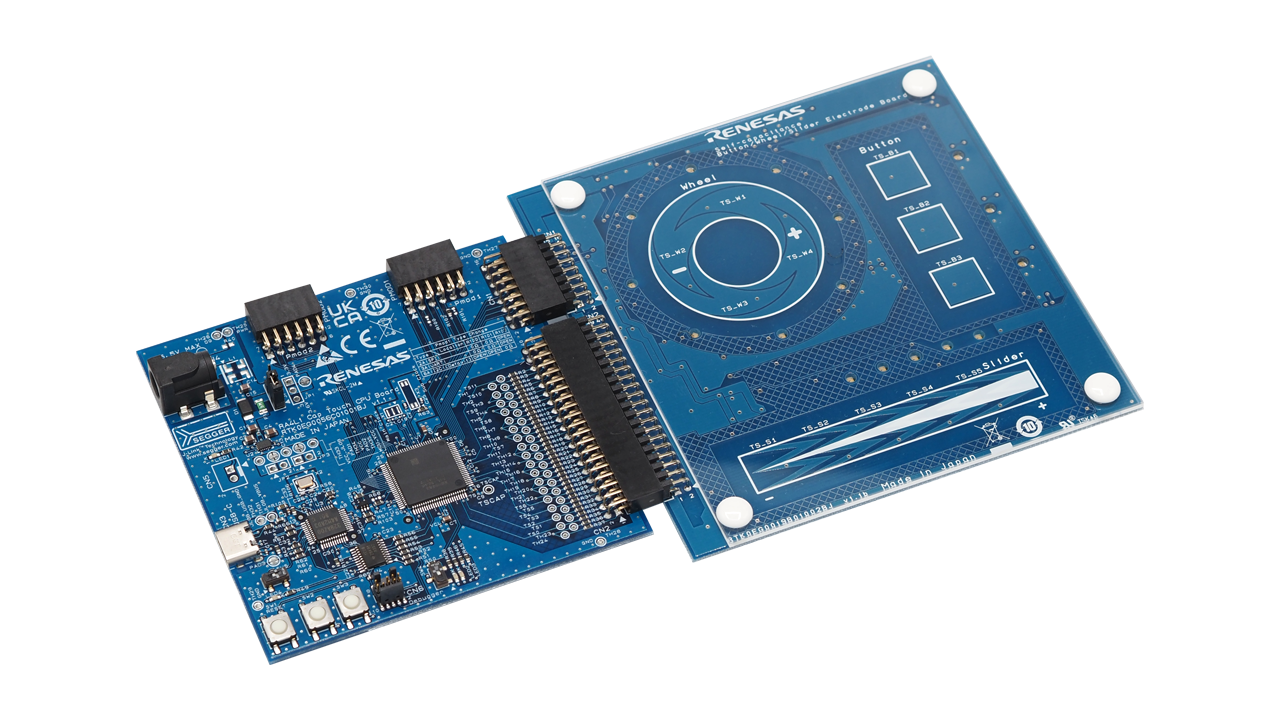

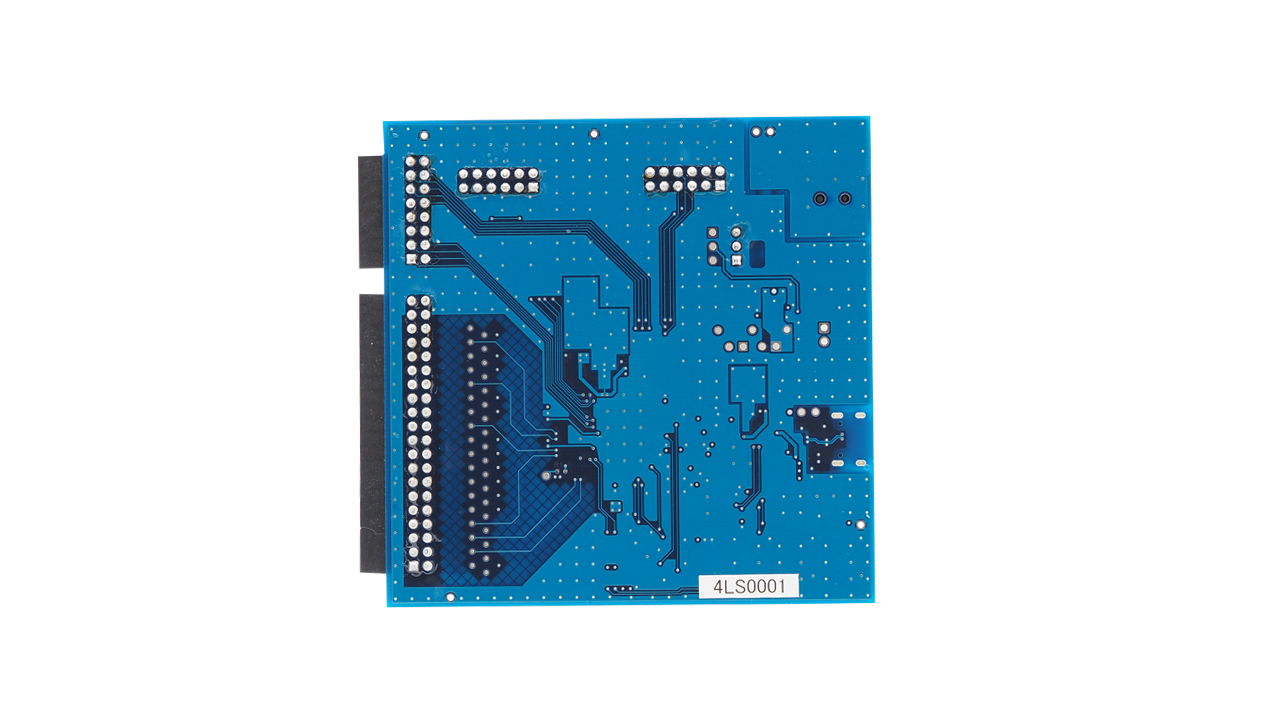

Capacitive Touch Evaluation System for RA4L1

AI-generated Summary: The RA4L1 Capacitive Touch Evaluation System example project demonstrates capacitive touch functionality using RA4L1 MCU. It includes sample software integrating FSP components, QE-generated capacitive touch configurations, and LED control applications. The software performs LED tests on startup and controls LEDs based on touch inputs from buttons, sliders, and wheels. It supports serial monitoring and tuning via UART and uses peripherals such as CTSU for touch measurement and AGT for LED control. The project operates at 80MHz with a 5V supply and is developed using e2 studio and Arm GNU Toolchain.

AI-generated Summary: Capacitive touch sensor microcontrollers utilize Renesas' Capacitive Touch Sensing Unit (CTSU) technology embedded in RX, RA, RL78 families, and Renesas Synergy™. The document explains capacitance detection principles, including self-capacitance and mutual-capacitance methods, and details the evolution from first-generation sensors to advanced CTSU2. It covers MCU lineups, hardware design guidelines, software configuration, tuning procedures, development environments, and evaluation kits to support capacitive touch product development. The CTSU converts capacitance changes into measurable signals, applying filtering and threshold judgment to detect touch inputs accurately.

AI-generated Summary: Capacitive touch sensors measure capacitance changes caused by finger contact using a sensor drive pulse and current measurement. Ripple noise from the power supply or peripheral circuits distorts these measurements by adding noise currents, causing inaccurate touch detection. To ensure high accuracy and reliability, power supply design must minimize ripple noise. The document explains measurement principles, ripple noise effects, and countermeasures including power supply circuit selection, switching circuits, board layout, and touch parameter tuning. It covers RX, RL78, and RA family MCUs embedding CTSU1 and CTSU2 types of capacitive touch sensing units.

AI-generated Summary: The guide explains methods to enhance noise immunity for capacitive touch sensor MCUs by addressing environmental noise issues that affect capacitance measurements. It covers noise types such as radiated RF, conducted noise, electrostatic discharge (ESD), and electrical fast transients (EFT), referencing IEC 61000-4 standards. The document details hardware and software countermeasures, including board design, multi-frequency measurement, filtering techniques, and protection circuits. It targets RX, RA, RL78 MCU families and Renesas Synergy devices embedding the CTSU module, providing practical design guidelines and evaluation results to ensure stable capacitive touch operation under noisy conditions.

AI-generated Summary: Capacitive touch sensing integrates with Renesas RA microcontrollers using QE and FSP tools. The process includes creating a project with RA Smart Configurator, adding required modules, building a capacitive touch interface, tuning with QE for Capacitive Touch, and monitoring touch performance. Supported devices include RA6M2 and RA2L1 with CTSU/CTSU2 units. Development requires e2 studio IDE, GCC ARM compiler, QE for Capacitive Touch plug-in, and FSP middleware. The example demonstrates starting measurements with RM_TOUCH_ScanStart() and detecting touch via RM_TOUCH_DataGet().

AI-generated Summary: The document explains how to generate and transfer QE code for Capacitive Touch using e² studio and IAR Embedded Workbench for ARM with Renesas RA microcontrollers. It details steps for creating projects in e² studio, configuring capacitive touch, tuning, and migrating the code to IAR EWARM. The setup involves RA2L1 evaluation boards, specific IDE versions, toolchains, and configuration tools. It guides users through project creation, device selection, build settings, and integration of touch drivers to run capacitive touch applications efficiently.
