RA0E2

Features

32MHz Arm Cortex-M23 core
Up to 128KB Flash and 16KB SRAM
2KB data flash memory (100,000 program / erase (P/E) cycles)
32-pin, 48-pin, and 64-pin package options
Wide operating temperature range from -40 to 125°C
Wide voltage range of 1.6V to 5.5V
+-1% high-accuracy high-speed on-chip oscillator
TAU (16-bit general PWM timer)
TML32 (32-bit interval timers)
RTC
12-bit A/D converter
Temperature sensor
SAU (UART, Simplified SPI, Simplified I²C)
UART
I²C bus
Random number generator
Safety functions
Flexible power architecture with fast wake-up
Best-in-class HAL driver code
Supports Arm ecosystem and Renesas original development tools

Find Other Products in RA Arm Cortex-M MCUs

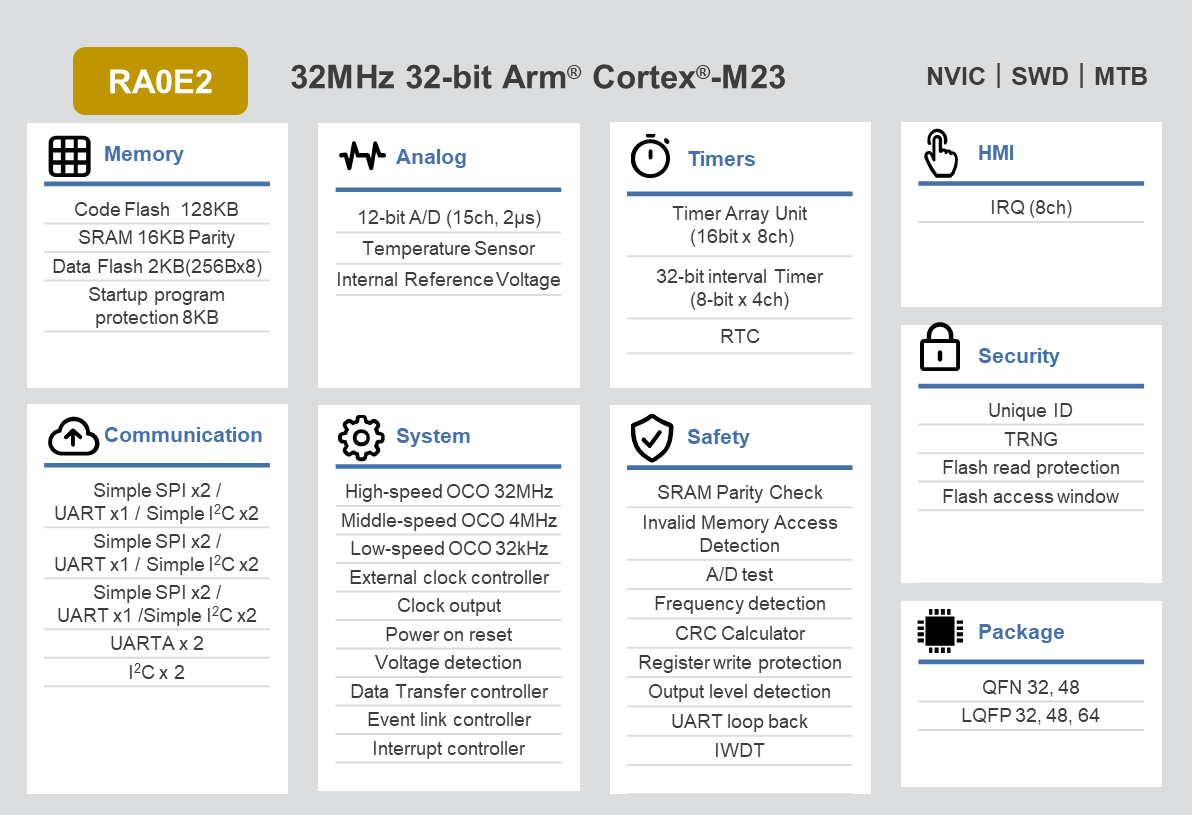

RA0E2 Overview: 32MHz Arm Cortex-M23 MCU with 128KB ROM

Description

The RA0E2 group is a basic, simple microcontroller (MCU) in the entry line of the RA0 series, offering excellent cost-effectiveness and ultra-low power consumption. In addition, it is a ROM/PIN extension product of the RA0E1 group, with which it is highly compatible. It delivers up to 32MHz of CPU performance using an Arm® Cortex®-M23 core with up to 128KB of embedded flash memory, 16KB SRAM, and a wide operation temperature range from -40 to 125°C. The RA0 series is ideal for cost-sensitive applications such as low power and lower cost for consumer electronics, system control for small appliances, industrial system control, and building automation.

Parameters

Attributes	Value
Main CPU	Arm Cortex-M23
Program Memory (KB)	64, 128
RAM (KB)	16
Carrier Type	Full Carton (Tray), Full Tray (Tray), Tape & Reel
Supply Voltage (V)	1.6 - 5.5
I/O Ports	29, 44, 60
DRAM I/F	No
Temp. Range (°C)	Ta = -40 to +105, Ta = -40 to +125
Operating Freq (Max) (MHz)	32
Ethernet speed	No
EtherCat (ch) (#)	0
USB FS (host ch/device ch)	( 0 / 0 )
USB HS (host ch/device ch)	( 0 / 0 )
USB SS (host ch/device ch)	( 0 / 0 )
SCI or UART (ch)	5
SPI (ch)	3, 5, 6
I2C (#)	6, 8
CAN (ch)	0
CAN-FD (ch)	0
Wireless	No
SDHI (ch)	0
High Resolution Output Timer	No
PWM Output (pin#)	7
32-Bit Timer (ch)	0
16-Bit Timer (ch) (#)	8
Standby operable timer	Yes
Asynchronous General Purpose Timer / Interval Timer (ch)	1
16-Bit A/D Converter (ch)	0
14-Bit A/D Converter (ch)	0
12-Bit A/D Converter (ch)	10, 13, 15
24-Bit Sigma-Delta A/D Converter (ch)	0
12-Bit D/A Converter (ch)	0
8-Bit D/A Converter (ch)	0
Capacitive Touch Sensing Unit (ch)	0
Image Codec	No
Segment LCD Controller	No
Security & Encryption	128-bit Unique ID, TRNG

Package Options

Pkg. Type	Pkg. Dimensions (mm)	Lead Count (#)	Pitch (mm)
LQFP	7 x 7 x 1.7	32	0.8
LQFP	7 x 7 x 1.7	48	0.5
LQFP	10 x 10 x 1.7	64	0.5
QFN	5 x 5 x 0.8	32	0.5
QFN	7 x 7 x 0.8	48	0.5

Application Block Diagrams

	Household Water Pump Smart water pump system with low power use, noise reduction, and enhanced safety for efficient operation.
	Pure Sine Wave Home Inverter with BMS The high-performance sine wave home inverter system provides stable power, reduces costs, and ensures flexibility.
	Cordless BLDC Hand Blender Lightweight, versatile cordless hand blender with fast charging, BLDC motor, and multi-speed control.
	Sensor Signal Conditioner to Linearize Results Sensor signal conditioner for linearizing sensors with minimal MCU load and small footprint.
