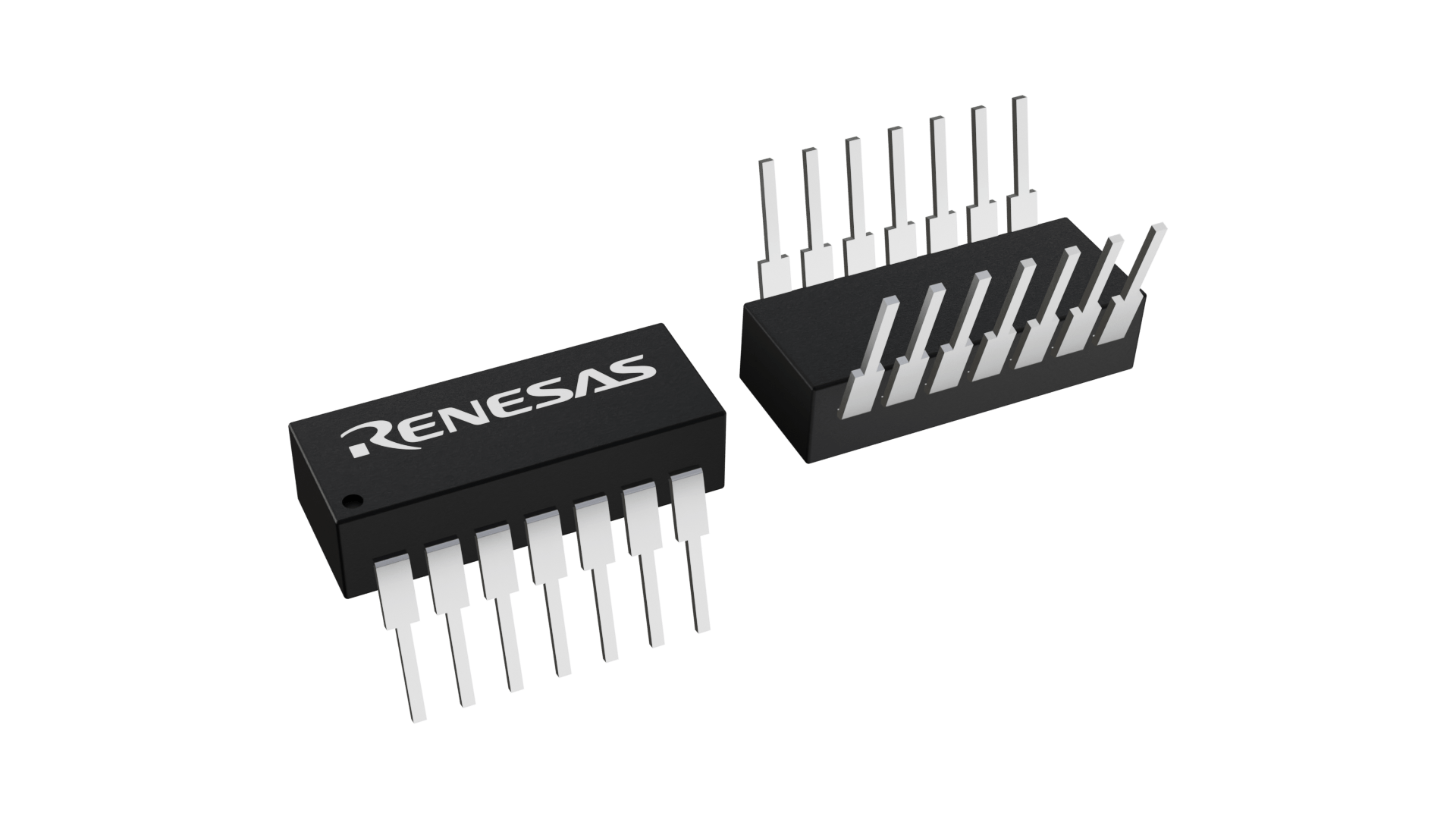

Package Information
| CAD Model: | View CAD Model |
| Pkg. Type: | CERDIP |
| Pkg. Code: | FAZ |
| Lead Count (#): | 14 |
| Pkg. Dimensions (mm): | 19.30 x 7.32 x 0.00 |
| Pitch (mm): | 2.54 |
Environmental & Export Classifications
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Pb (Lead) Free | No |
| ECCN (US) | EAR99 |
| HTS (US) | 8542.33.0001 |
| RoHS (8001601CA) | EnglishJapanese |
Product Attributes
| Lead Count (#) | 14 |
| Carrier Type | Tube |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Pb (Lead) Free | No |
| Pb Free Category | Hot Solder Dip |
| MOQ | 75 |
| Temp. Range (°C) | -55 to +125°C |
| AVOL (dB) | 94 |
| Bandwidth (MHz) | 2.5 |
| CAGE code | 34371 |
| Die Sale Availability? | No |
| Droop Rate (μV/μs) | 0.005 |
| Flow | Harsh Environment & MIL-STD-883 |
| Hold Step Error (mV) | 10 |
| IBIAS (nA) | 40 |
| Lead Compliant | No |
| Length (mm) | 19.3 |
| Max Acquisition Time (10V Step to 0.01%) (μs) | 6 |
| Max Acquisition Time (10V Step to 0.1%) (μs) | 4 |
| Maximum Drift Current Over Temperature (nA) | 10 |
| PROTO Availability? | No |
| Pitch (mm) | 2.5 |
| Pkg. Dimensions (mm) | 19.3 x 7.3 x 0.00 |
| Pkg. Type | CERDIP |
| Qualification Level | Class Q |
| Rating | MIL-STD-883 |
| Requires External Hold Capacitor | Yes |
| Tape & Reel | No |
| VOS (mV) | 2 |
| Width (mm) | 7.3 |
| tACQ (ns) | 3200 |
Resources for HA-2420/883
Description
HA-2420/883 3. 2 is a microsecond sample and hold amplifier for military and defense applications.
