Features
- Operates off 3V, 5V, or ±5V supplies
- Power-down to 13µA (EL5202)
- -3dB bandwidth = 400MHz
- ±0.1dB bandwidth = 35MHz
- Low supply current = 5mA per amplifier
- Slew rate = 3500V/µs
- Low offset voltage = 5mV max
- Output current = 150mA
- AVOL = 2000
- Differential gain/phase = 0.01%/0.01°
- Pb-free (RoHS compliant)

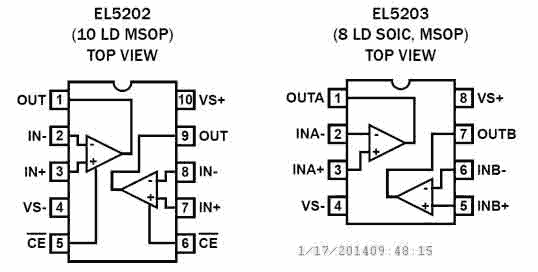

EL5202_EL5203 Functional Diagram
Description
Support is limited to customers who have already adopted these products.
The EL5202 and EL5203 are dual, high-speed VFAs based on a CFA architecture. This gives the typical high slew rate benefits of a CFA family along with the stability and ease of use associated with the VFA type architecture. With slew rates of 3500V/µs, these devices enable the use of voltage feedback amplifiers in a space where the only alternative has been current feedback amplifiers. This family also includes single, dual, and triple versions with 750MHz bandwidths; please see the EL5104 through EL5304 data sheet for details. Both devices operate on single 5V or ±5V supplies from minimum supply current. The EL5202 also features an output enable function, which can be used to put the output in to a high-impedance mode. This allows the outputs of multiple amplifiers to be tied together for use in multiplexing applications. Typical applications for these families include cable driving, filtering, A/D and D/A buffering, multiplexing and summing within video, communications, and instrumentation designs.
Applications
- Video amplifiers
- PCMCIA applications
- A/D drivers
- Line drivers
- Portable computers
- High speed communications
- RGB applications
- Broadcast equipment
- Active filtering
| Part Number | Status | Samples | Stock | Package | Lead Count (#) | Carrier Type | Moisture Sensitivity Level (MSL) | Pb (Lead) Free | Pb Free Category | Temp. Range (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| EL5202IYZ | Obsolete | N/A | Out of Stock | MSOP | 10# | Tube | 2 | Yes | Pb-Free 100% Matte Tin Plate w/Anneal-e3 | -40 to +85°C |
| EL5202IYZ-T13 | Obsolete | N/A | Out of Stock | MSOP | 10# | Reel | No | -40 to +85°C | ||
| EL5202IYZ-T7 | Obsolete | N/A | Out of Stock | MSOP | 10# | Reel | No | -40 to +85°C |
