Features
- 2 differential outputs LVPECL, LVDS, HCSL - or 2 LVCMOS outputs
- <0.7ps RMS typical phase jitter on outputs
- Two fractional output dividers (FODs)
- Independent spread spectrum capability on each output pair
- Stores 4 different configurations in OTP non-volatile memory
- Up to 350MHz input/output frequencies
- Redundant clock inputs with manual switchover
- Programmable loop bandwidth, output to output skew, slew rate control
- Individual output enable/disable
- Meets PCIe® Gen 1/2/3, USB 3.0, 1/10 GbE clock requirements
- 1.8/2.5/3.3V core and output voltages
- 4mm x 4mm 24-pin VFQFPN package
- -40 °C to +85 °C operating temperature range
- Supported by Renesas' Timing Commander™ software tool
Description

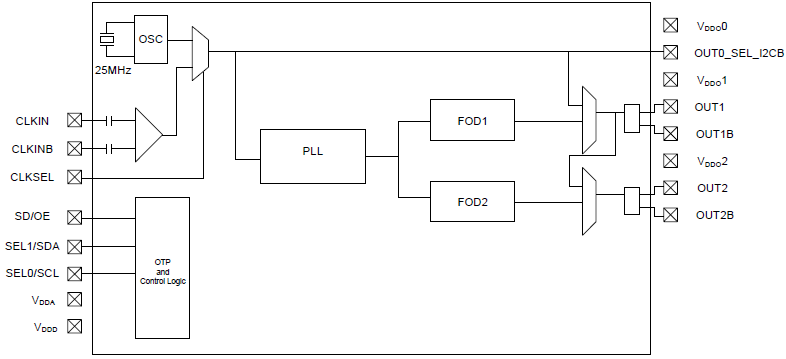

The 5P49V5933 is a programmable clock generator intended for high-performance consumer, networking, industrial, computing, and data communications applications. Configurations may be stored in on-chip One-Time Programmable (OTP) memory or changed using an I²C interface. This is Renesas' fifth generation of programmable clock technology (VersaClock® 5). The 5P49V5933, by default, uses an integrated 25MHz crystal as an input reference. It also has a redundant external clock input. A glitchless manual switchover function allows the selection of either input reference during normal operation.
Two select pins allow up to 4 different configurations to be programmed and accessible using processor GPIOs or bootstrapping. The different selections may be used for different operating modes (full function, partial function, partial power-down), regional standards (US, Japan, Europe), or system production margin testing. The device may be configured to use one of two I²C addresses to allow multiple devices to be used in a system.
Applications
- Ethernet switch/router
- PCI Express 1.0/2.0/3.0
- Broadcast video/audio timing
- Multi-function printer
- Processor and FPGA clocking
- Any-frequency clock conversion
- MSAN/DSLAM/PON
- Fiber Channel, SAN
- Telecom line cards
- 1GbE and 10GbE
