Overview
Description

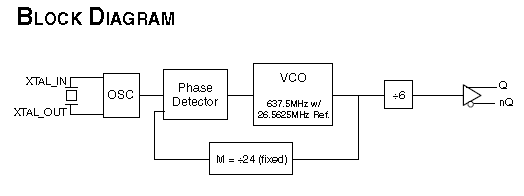

The ICS843011C is a Fibre Channel clock generator that uses a 26.5625MHz crystal to synthesize 106.25MHz or a 25MHz crystal to synthesize 100MHz. The ICS843011C has excellent <1ps phase jitter performance, over the 637kHz to 10MHz integration range. The device is packaged in a small 8-pin TSSOP, making it ideal for use in systems with limited board space.
Features
- One differential 3.3V LVPECL output
- Crystal oscillator interface designed for 26.5625MHz, 18pF parallel resonant crystal
- Output frequency: 106.25MHz or 100MHz
- VCO range: 560MHz to 680MHz
- RMS phase jitter at 100MHz, using a 25MHz crystal (637kHz to 10MHz): 0.29ps (typical)
- 3.3V operating supply
- 0 °C to 70 °C ambient operating temperature
- Available in lead-free (RoHS 6) packaging
Comparison
Applications
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
