2305NZT

Active

2.5V Clock Buffer

Order Now
2305NZT Datasheet

Overview

The IDT2305NZT is a high-speed clock buffer, designed to address high-speed clock distribution applications. IDT2305NZT accepts one reference input, and drives out five low skew clocks.

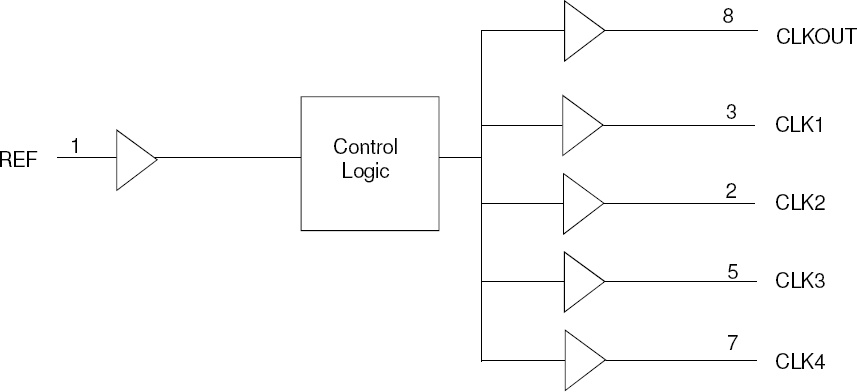

2305NZT - Block Diagram

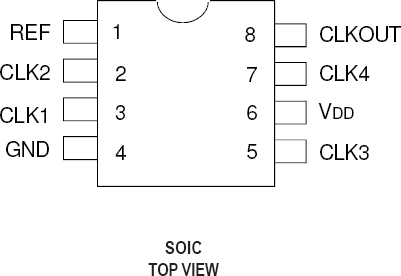

2305NZT - Pinout
2305NZT - Block Diagram
2305NZT - Pinout
  • Clock Distribution
  • 10MHz to 133MHz operating frequency
  • Distributes one clock input to one bank of five outputs
  • Output Skew < 250ps
  • No external RC network required
  • Operates at 2.5V VDD
  • Available in SOIC package
  • Available in commercial and industrial temperature range

Documentation

Featured Documentation
Type Title Date
Datasheet
2305NZT Datasheet
PDF 179 KB
Application Note
AN-805 Recommended Ferrite Beads
PDF 91 KB
Application Note
AN-827 Application Relevance of Clock Jitter
PDF 1.99 MB
Overview
Clock Distribution Overview
PDF 217 KB
Application Note
AN-828 Termination - LVPECL
PDF 322 KB
Application Note
AN-842 Thermal Considerations in Package Design and Selection
PDF 495 KB
Application Note
AN-840 Jitter Specifications for Timing Signals
PDF 442 KB
Application Note
AN-834 Hot-Swap Recommendations
PDF 153 KB
Application Note
AN-815 Understanding Jitter Units
PDF 565 KB
9 items

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on the CAD Model links in the Product Options table. If a symbol or model isn't available, it can be requested directly from SamacSys.

Explore ECAD Models
Diagram of ECAD Models
