READ4304G

Active

High Drivability and High Slew Rate, Input Output Full Range, CMOS Quad Operational Amplifier, VIO ≤±6mV, SR=8V/μs , GBW=6MHz

Order Now
READ4304G Datasheet

Overview

The READ4304G is an input and output full range quad CMOS operational amplifier realizing high drivability and slew rate. This IC can be used in minimum operating supply voltage from 2.5V and in wide ambient temperature range from -40°C to +105°C.

Available in 14 pin TSSOP package.

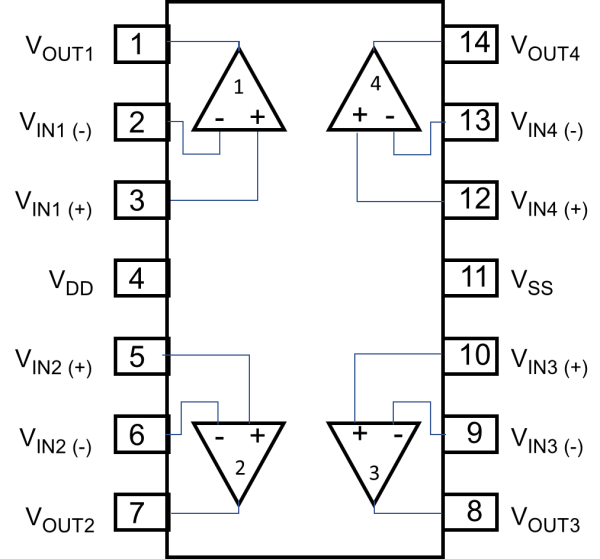

READ4304G - Pin Assignment
READ4304G - Pin Assignment
  • Low voltage single supply operation: VDD = 2.5V to 5.5V
  • Low input offset voltage: VIO ≤ ±6.0mV
  • Low input bias current: IB ≤ (1pA)
  • Wide output voltage range: VOUT : VSS+0.1V to VDD-0.1V (at Io = 5mA)
  • Supply current (per channel) : IDD = 0.75mA typical
  • High slew rate: SR = 8V/μs typical

Documentation

Featured Documentation
Type Title Date
Datasheet
READ4304G Datasheet
PDF 1.85 MB 日本語
Brochure
Analog ICs Brochure
PDF 5.41 MB 日本語
Product Reliability Report
READ4304GSP Reliability Report
PDF 133 KB
3 items

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on the CAD Model links in the Product Options table. If a symbol or model isn't available, it can be requested directly from SamacSys.

Explore ECAD Models
Diagram of ECAD Models

Models
Type Title Date
Model - SPICE
READ4304G Spice Model
ZIP
1 item
