16K x 18 Sync, Dual-Port RAM, Pipelined/Flow-Through

Package Information

Lead Count (#) 100
Pkg. Code PN100
Pitch (mm) 0.5
Pkg. Type TQFP
Pkg. Dimensions (mm) 14.0 x 14.0 x 1.4

Environmental & Export Classifications

Pb (Lead) Free No
ECCN (US) NLR
HTS (US) 8542320041
Moisture Sensitivity Level (MSL) 3

Product Attributes

Lead Count (#) 100
Pb (Lead) Free No
Carrier Type Tray
Architecture Dual-Port
Bus Width (bits) 18
Core Voltage (V) 5
Density (Kb) 288
Function Counters, Dual Clocks
I/O Frequency (MHz) 1 - 1
I/O Type 5.0 V TTL
Interface Sync
Length (mm) 14
MOQ 18
Moisture Sensitivity Level (MSL) 3
Organization 8K x 18
Output Type Flowthrough, Pipelined
Package Area (mm²) 196.0
Pb Free Category e0
Pitch (mm) 0.5
Pkg. Dimensions (mm) 14.0 x 14.0 x 1.4
Pkg. Type TQFP
Qty. per Carrier (#) 90
Qty. per Reel (#) 0
Requires Terms and Conditions Does not require acceptance of Terms and Conditions
Tape & Reel No
Temp. Range 0 to 70°C
Thickness (mm) 1.4
Width (mm) 14

Description

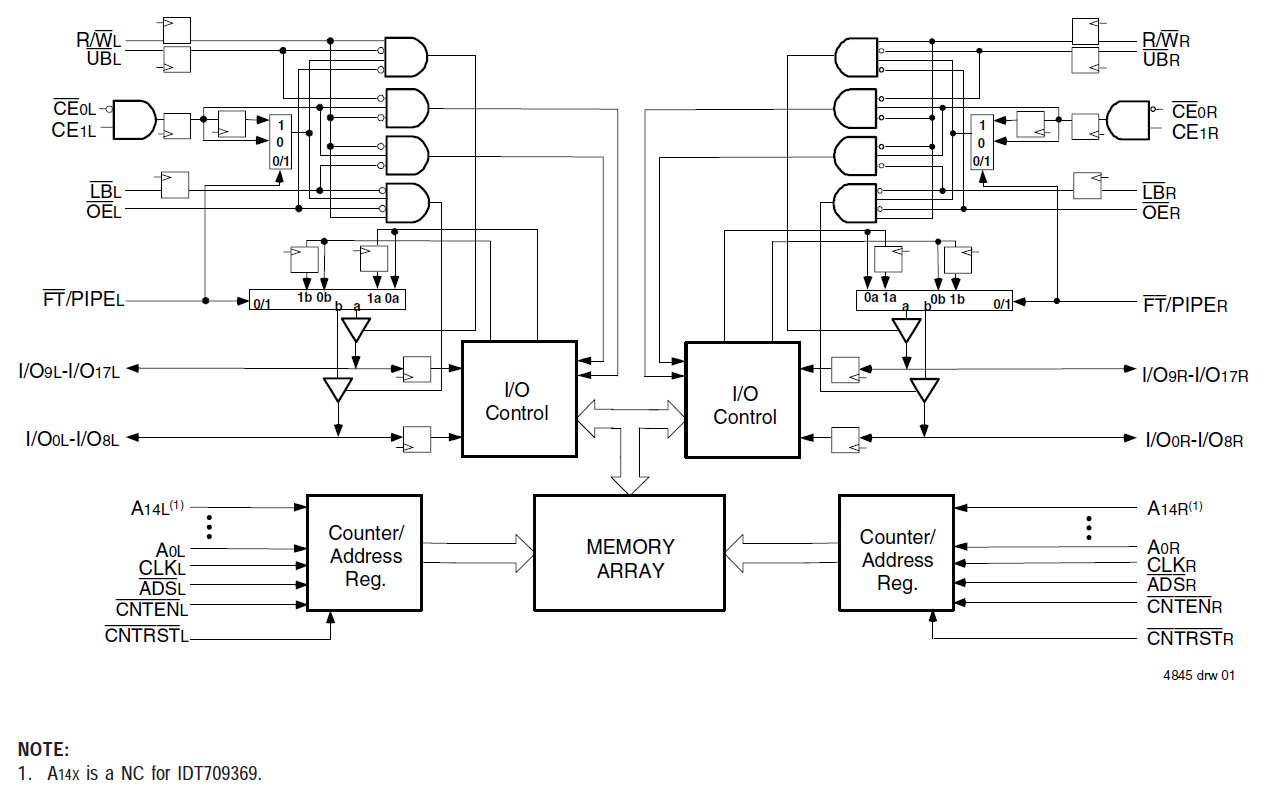

The 709369 is a high-speed 16K x 18 bit synchronous Dual-Port RAM that has been optimized for applications having unidirectional or bidirectional data flow in bursts. An automatic power down feature, controlled by CE0 and CE1, permits the on-chip circuitry of each port to enter a very low standby power mode.
