Overview
Description

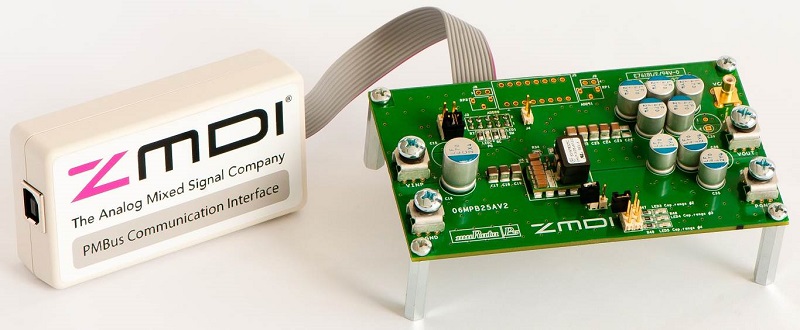

The ZSPM8025-KIT supports evaluation of DC/DC point-of-load (POL) applications. The kit incorporates the ZSPM1025A digital PWM controller IC and the Murata OKLP-X/25-W12-C Power Block to form a "smart" buck converter (a.k.a. step-down DC-to-DC converter). The ZSPM8025-KIT Evaluation Kit hardware functions with the Pink Power Designer™ Graphical User Interface (GUI), which is used for communication and programming of the ZSPM1025A. The GUI is available for download.
The kit includes the PMBus™ Communication Interface, which provides the interface between the ZSPM8025 Evaluation Kit and the user's computer.
Features
- ZSPM8025 Evaluation Board with one ZSPM1025A sample mounted and one Murata OKLP-X/25-W12-C Power Block
- PMBus™ Communication Interface
- USB Cable
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 1.42 MB | |
| Application Note | PDF 397 KB | |
| Technical Brief | PDF 370 KB | |
| Manual - Development Tools | PDF 1.39 MB | |
4 items
|
||
Design & Development
Software & Tools
Related Boards & Kits
Evaluation
ZSPM8xxx-COMM
Active
Communication Interface for ZSPM2000 and Select ZSPM8xxx Evaluation Kits
The PMBus™ Communication Interface (CI) provides the interface between the Evaluation Board and the user's computer for the ZSPM2000 Evaluation Kit and select ZSPM8xxx Evaluation Kits. It is included in the kits and can also be ordered separately.
