ZLUSBEVAL1Z

Obsolete

USB to SMBus Adapter and Cable

ZLUSBREF01 User Guide

Overview

The USB to SMBus™ interface board allows communication between a Digital-DC™ evaluation board and a PC. This interface board has been designed to bridge PMBus™ commands from a PC application program to the SMBus. The PMBus command set is used to configure a Digital-DC device as well as monitor the power supply. PMBus commands are accessed using interface software from a PC running Microsoft Windows.

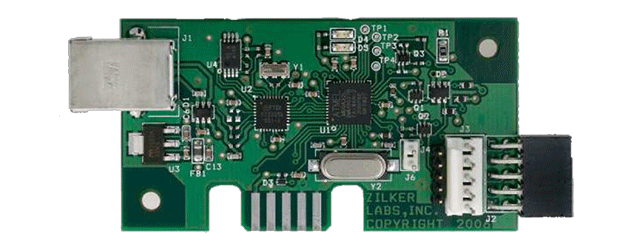

ZLUSBEVAL1Z USB to SMBus Adapter and Cable
  • SMBus control via USB
  • SMBus 2.0 and I2C 2.1 compatible
  • PMBus compliant
  • Self powered from USB
  • Pre-installed firmware
  • Provides SMBus reference rail
  • Interface to Digital-DC EVBs

Documentation

Design & Development

Software Downloads

Product Options

Applied Filters:

Support

Support Communities

  1. ZLUSBEVAL1Z replacement

    Hi Renesas-supportteam, Few years ago has been used the USB to SMBus Adapter (ZLUSBEVAL1Z from "ZILKER LABS AN INTERSIL COMPANY") with the Power Navigator Software. this product now is obsolete and we need to upgrade the test system to windows 10 , exists any replacement for this programmer  compatibility with ...

    Dec 2, 2024
  2. ! USB to SMBus Adapter - Replacement

    Dear Sir or Madam, Dear Renesas-supportteam, in the last couple years we used the USB to SMBus Adapter (ZLUSBEVAL1Z from "ZILKER LABS AN INTERSIL COMPANY") with the Power Navigator Software. This product have two relevant components on the PCB:  A "FT232 BQ" and a "ATMega32L", therefore i am sure ...

    Jan 13, 2022
