Overview
Description

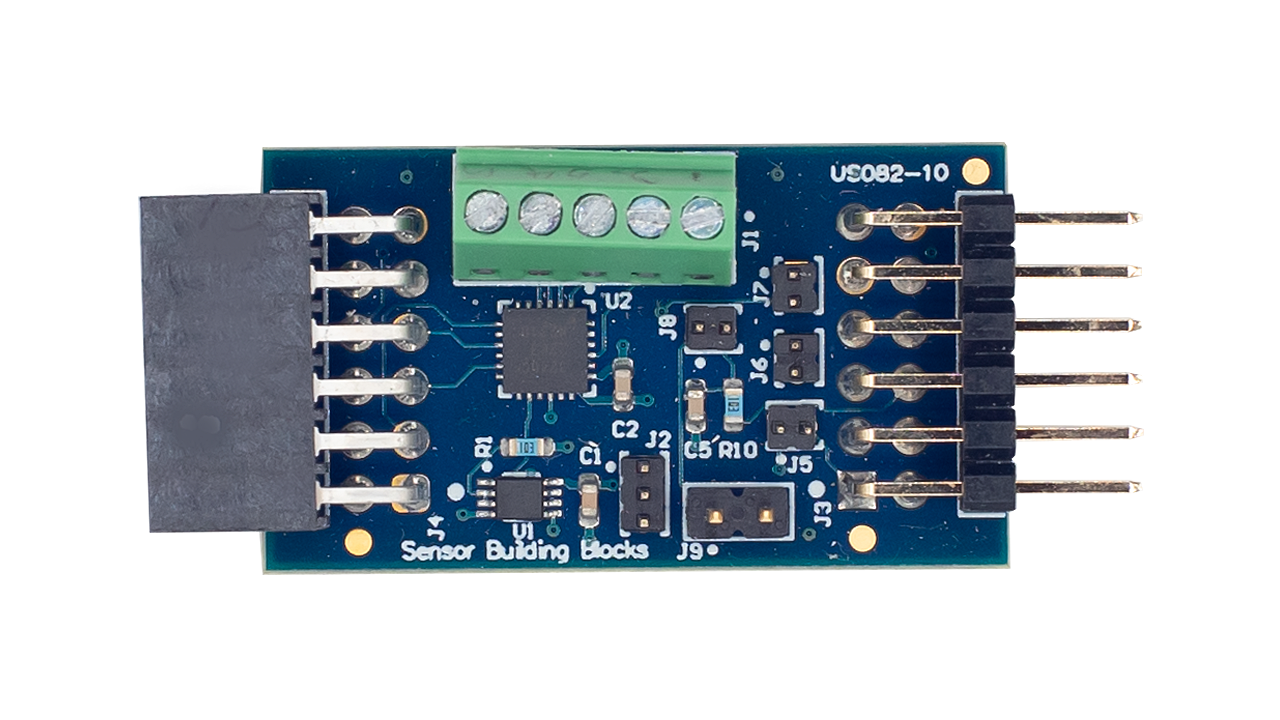

The US082-SSC3240EVZ evaluation board demonstrates the functionality and performance of the ZSSC3240 high-end 24-bit sensor. The ZSSC3240 is used for highly accurate amplification, digitization, and sensor-specific correction of resistive sensor signals. The design of the ZSSC3240 evaluation board is generic so that the customer can embed the sensor into their specific application. The board provides a standard Pmod™ Type 6A (extended I2C) connection for the onboard sensor to plug into any required MCU evaluation kit with a matching connector. The ZSSC3240 evaluation board can be added to the end of a daisy-chained solution with multiple Type 6/6A devices on the same MCU Pmod connector.
Features
- Programmable 16-bit digital-to-analog-converter and output
- 0V to 1V or 0V to 5V absolute voltage output
- VDD-ratiometric voltage output
- 4mA to 20mA current-loop output supported
- 0V to 10V absolute-voltage output supported
- On-chip temperature sensor
- Supports different sensor element configurations:
- Resistive bridge or half-bridge
- Resistive divider string
- Voltage source
- Standardized type 6A Pmod connector support
- I2C/SMBUS extended interface
Applications
- LoRaWAN gas meters
- Sensor signal conditioner to linearize results
- Embedded programmable logic controller (PLC) for industrial use
- IO-Link sensors
- Wireless bathroom weighing scales
- Smart all-in-one pressure cooking pots
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Hardware | US082-SSC3240EVZ Sensor Signal Conditioner Pmod Evaluation Board Manual
|
|
| Guide | PDF 302 KB | |
| PCB Design Files | Strain Gauge Demo Platform
3D file for strain gauge weight scale.
|
|
| PCB Design Files | Strain Gauge Demo Base
|
|
| Quick Start Guide | PDF 1.61 MB | |
| PCB Design Files | US082-SSC3240EVZ PCB Design Files
|
|
6 items
|
||
Design & Development
Sample Code
Lab on the Cloud
Lab on the Cloud
Use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.
Product Options
| Part Number | Status | Stock | Sampleable | Pb (Lead) Free | ECCN (US) | HTS (US) |
|---|---|---|---|---|---|---|
| US082-SSC3240EVZ | Active | Out of Stock | Available | Yes | EAR99 | 8473.30.1180 |
