Overview
Description

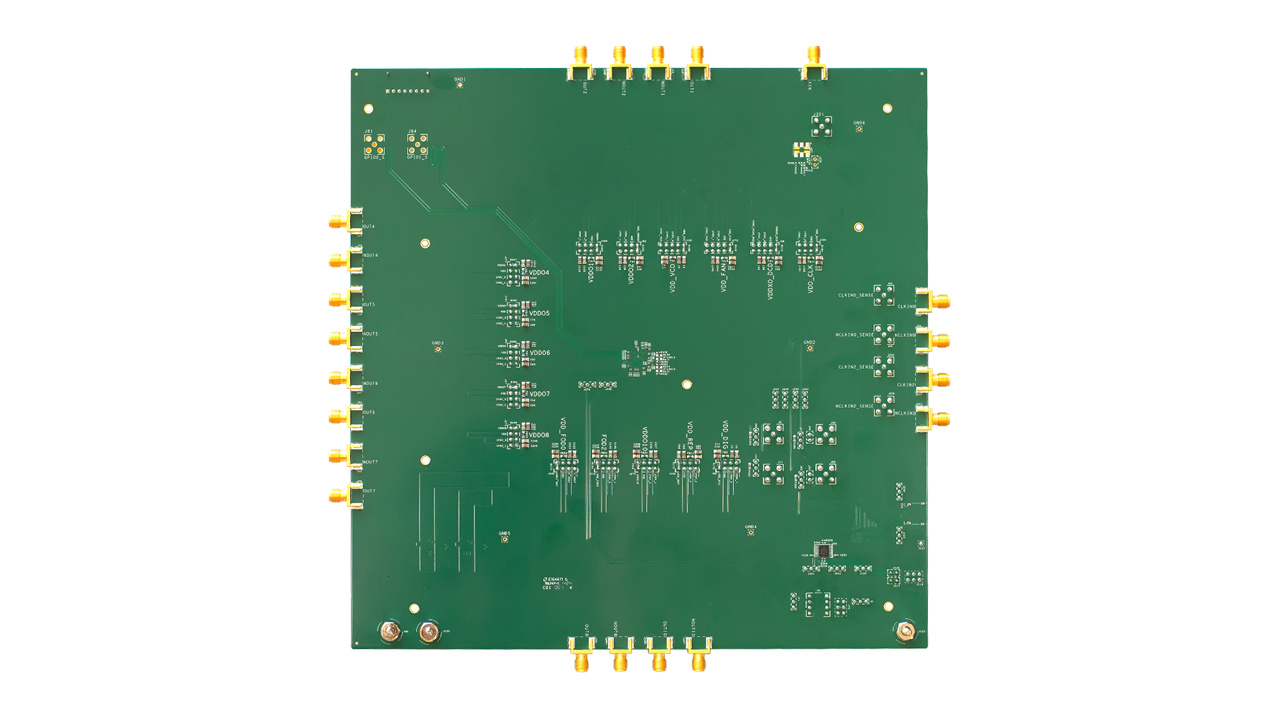

This RC38208A evaluation kit is used to evaluate the RC38208 FemtoClock™ 3 ultra-low phase noise jitter attenuator and clock generator. The RC38208 and RC38108 are ultra-low phase noise jitter attenuators, multi-frequency clock synthesizers, and digitally controlled oscillators (DCO). This flexible, low-power device outputs clocks with ultra-low in-band phase noise and spurious signals for 4G and 5G RF transceivers and with jitter below 18fs RMS for 112Gbps and 224Gbps SerDes.
Features
- Two differential clock inputs
- Eight differential clock outputs
- Onboard EEPROM stores startup configuration data
- XIN terminal can use a laboratory signal generator or OCXO/TCXO/XO components and board
- Laboratory power supply connectors
- Serial port for configuration and register readout
Applications
- Timing for optical front-end DAC/ADC and DSP
- Reference clock for 112Gbps and 224Gbps SerDes
- 5G distribution units (DU), switches, and routers
- High-performance DCO for precision time protocol (PTP) based clocks
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Hardware | PDF 1.99 MB | |
| Schematic | XLSX 33 KB | |
| Guide | PDF 2.64 MB | |
| Manual - Software | PDF 2.21 MB | |
| Manual - Software | PDF 1.94 MB | |
5 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Renesas IC Toolbox (RICBox) The Renesas IC Toolbox (RICBox) software platform enables customers to configure Renesas devices on evaluation kits when attached to the computer running the software.
|
Software Package | Renesas |
1 item
|
||
Related Boards & Kits
Boards & Kits
FemtoClock 3 Wireless Ultra-Low Phase Noise Synchronizer and Jitter Attenuator Evaluation Kit
This RC38312A evaluation kit is used to evaluate the RC38312 FemtoClock™ 3 ultra-low phase noise radio synchronizer, multi-frequency clock synthesizer. The RC38312/RC38112 is an ultra-low phase noise radio synchronizer, multi-frequency clock synthesizer, and digitally controlled oscillator... Read More
Models
Product Options
| Part Number | Status | Stock | Description | Sampleable |
|---|---|---|---|---|
| RC38208A1-EVK | Active | In Stock | Evaluate RC38208/RC38108 - VCO freq. range 9.8GHz-10.35GHz | Available |
| RC38208A2-EVK | Active | In Stock | Evaluate RC38208/RC38108 - VCO freq. range 9.25GHz-9.85GHz | Available |
Videos & Training
Learn about the FemtoClock 3 Wireless ultra-low phase noise synchronizer and jitter attenuator for 5G radio units, distribution units, and high-performance precision timing protocol.
