E8a/E8 14PIN-10PIN Converter Board

Overview

The R0KZC000000002R converts the 14-pin connector of the E8a (or the E8) emulator to the 10-pin connector. When using this product, make sure that the pin assignment of the target system is the same as the following connector pin assignment. It can be used only when the pin assignment of the 10-pin connector-side is the same.

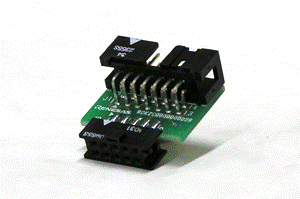

E8a/E8 14PIN-10PIN Convert Board

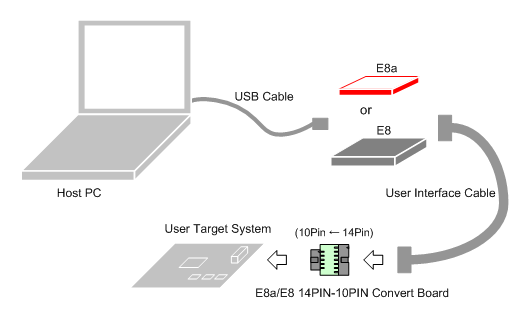

E8a/E8-14PIN 10PIN Convert Board Connection Example
E8a/E8 14PIN-10PIN Convert Board
E8a/E8-14PIN 10PIN Convert Board Connection Example
