Overview
Description

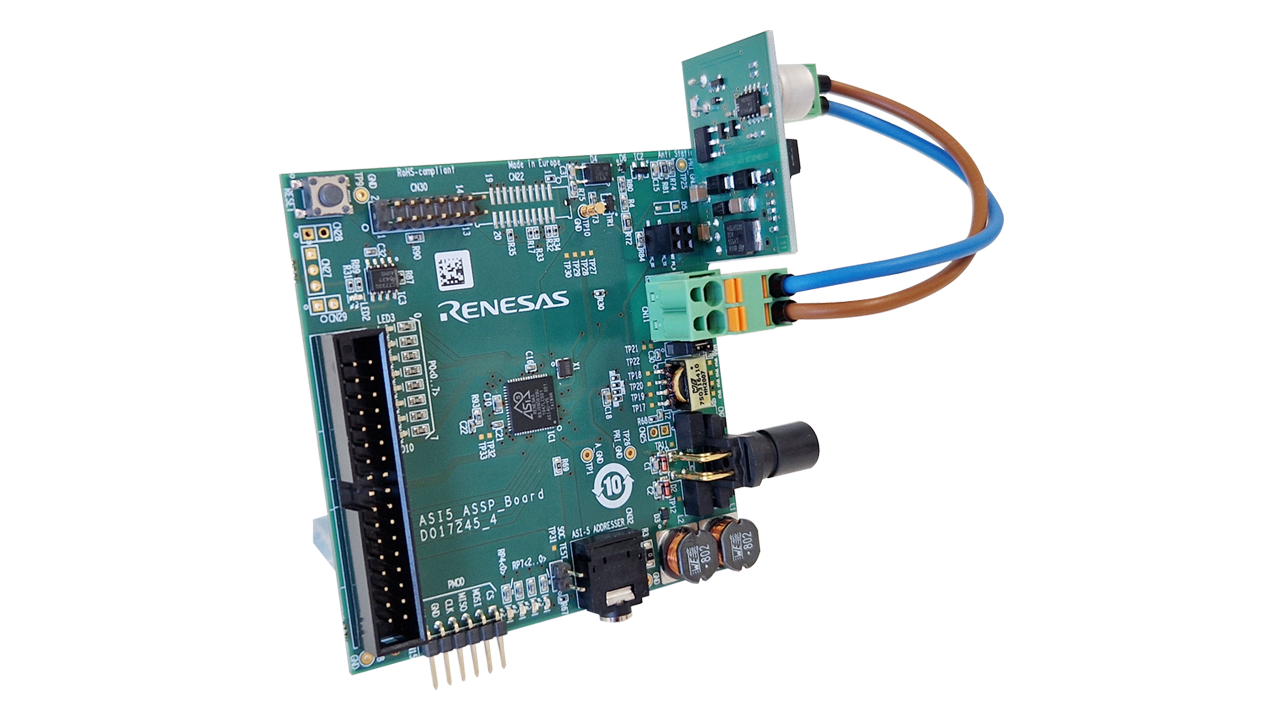

The ASI4U-V5-EVB-V1P0 is a development board for the ASI4U-V5 ASSP Renesas silicon solution that implements an Actuator-Sensor-Interface version 5 (ASi-5) fieldbus transceiver. It reduces the integration effort of an ASi-5 interface to a minimum. The implementation of the complex transmission process is optimally distributed between hardware and firmware components.
Features
- Silicon solution implementing an ASi-5 transceiver
- ASi-5 supports the integration of up to 96 devices, operation down to 1.27ms cycle time and up to 200-meter cable length
- Up to 32 bytes of cyclic data per device
- Diagnostics and event handling for industry 4.0 applications
- Backwards compatibility with ASi-3 devices
- Exceptional robustness against electromagnetic disturbers
- Supports simple slave and complex slave applications
- Operating temperature: -40°C to +85°C
- Supply voltages: 5V & 3.3V
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 1.88 MB | |
| Manual - Development Tools | ASI4U-V5-EVB-V1P0 Documentation Package
The ASI4U-V5-DB file package supports ASi-5 evaluation with comprehensive hardware and software documentation and development material. It includes validated power supply solutions, firmware SREC files, user/factory page sets and tools, API documentation, and project archives that enable development workflows, parameter configuration, and integration with industrial networks.
|
|
| Manual - Software |
PDF
1.01 MB
The Y-ASI4U-V5-DB supports rapid ASi-5 device evaluation with simple GPIO-based and SPI-enabled complex modes using the EK‑RA2A1 platform. It enables parameter configuration, firmware flashing, and PROFINET-based data visualization. The software package includes firmware files, user/factory page sets, API documentation, and example software project archives.
|
|
3 items
|
||
Product Options
| Part Number | Status | Stock | Sampleable |
|---|---|---|---|
| ASI4U-V5-EVB-V1P0 | Active | Out of Stock | Available |
