Package Information
| CAD Model: | View CAD Model |

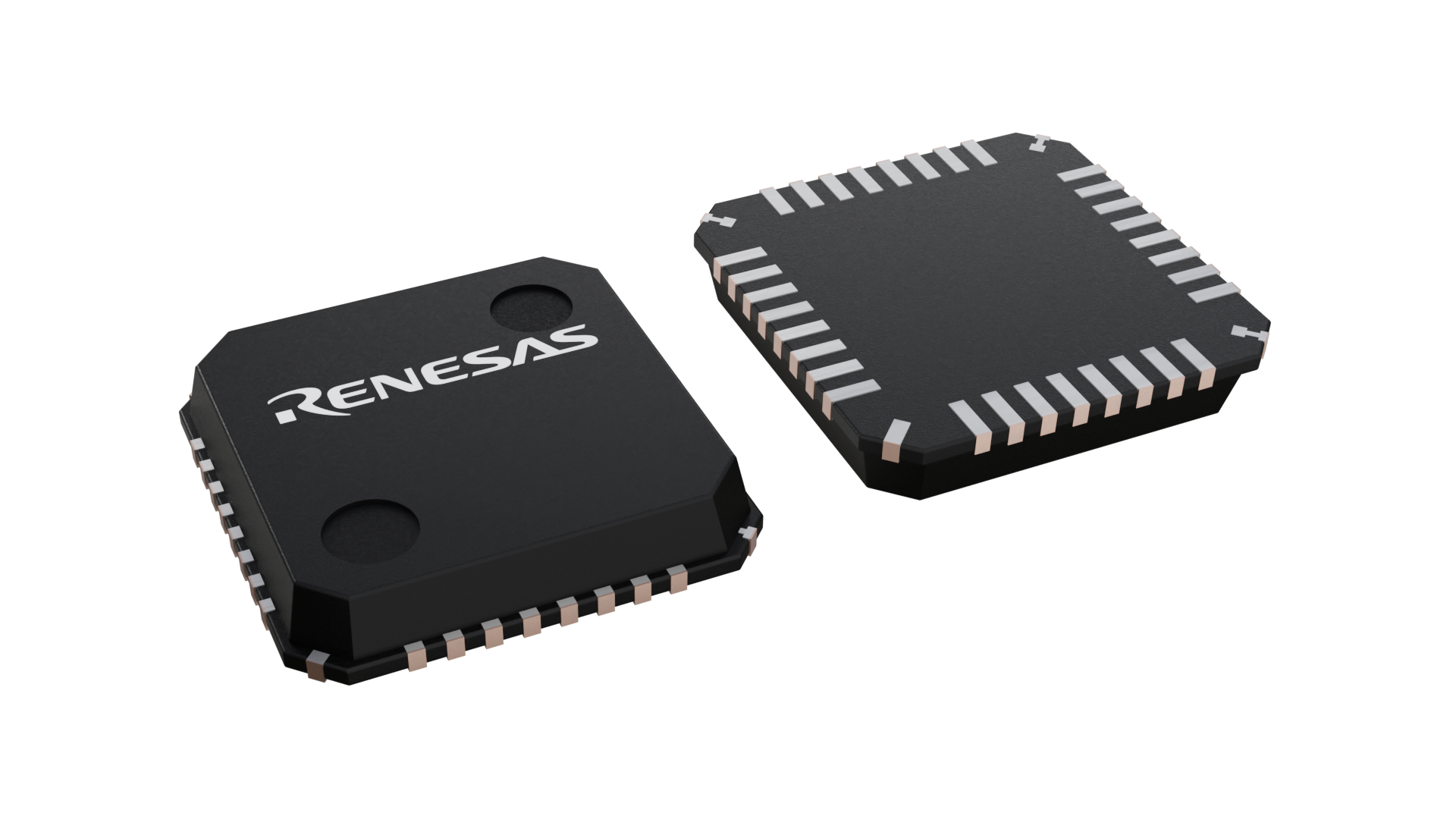

| Pkg. Type: | VQFN-32 |
| Pkg. Code: | pkg_6822 |
| Lead Count (#): | 32 |
| Pkg. Dimensions (mm): | 5 x 5 x 0.95 |
| Pitch (mm): | 0.4 |
Environmental & Export Classifications
| RoHS (RAA230405GNP) | EnglishJapanese |
| Pb (Lead) Free | |
| Moisture Sensitivity Level (MSL) | |
| ECCN (US) | |
| HTS (US) |
Product Attributes
| Carrier Type | Embossed Tape |
| Channels per device (#) | 4 |
| Description | 5.5Vmax, 3chDC/DC+1chLDO, 1.5A, VOUT=1.8V/1.8V/adjustable/1.2V or adjustable |
| Function | DC/DC(step down), LDO |
| IOUT (A) | 1.5 |
| IOUT (Max) (mA) | 1500 |
| Lead Compliant | N |
| Lead Count (#) | 32 |
| Length (mm) | 5 |
| Offset Voltage (Max) (mV) | 4 |
| Pkg. Dimensions (mm) | 5 x 5 x 0.95 |
| Pkg. Type | VQFN-32 |
| Pvin (Max) | 5.5 |
| Pvin (Min) | 2.5 |
| Switching Frequency (KHz) | 2200 - 2200 |
| Thickness (mm) | 0.95 |
| Tstg (Max) (°C) | 150 |
| Tstg (Min) (°C) | -55 |
| VOUT (V) | 0.9 |
| Width (mm) | 5 |
Resources for RAA230405GNP
Description
Support is limited to customers who have already adopted these products.
