Package Information

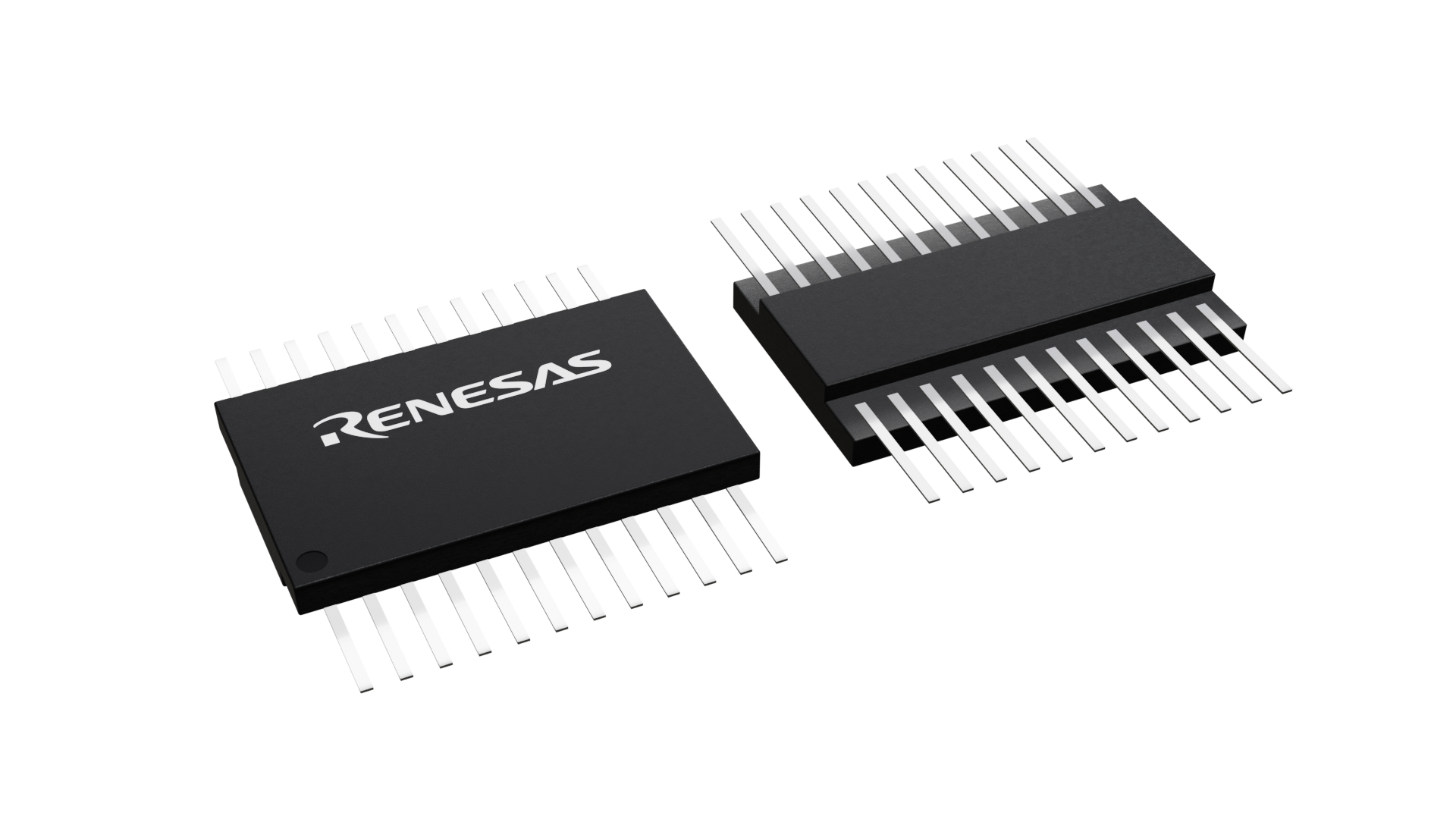

| CAD Model: | View CAD Model |
| Pkg. Type: | CFP |
| Pkg. Code: | HWM |
| Lead Count (#): | 24 |
| Pkg. Dimensions (mm): | 15.24 x 10.16 x 0.00 |
| Pitch (mm): | 1.27 |
Environmental & Export Classifications
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Pb (Lead) Free | Yes |
| ECCN (US) | 3A001.a.2.c |
| HTS (US) | 8542.39.0050 |
Product Attributes
| Lead Count (#) | 24 |
| Carrier Type | Tray |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Pitch (mm) | 1.3 |
| Pkg. Dimensions (mm) | 15.2 x 10.2 x 0.00 |
| Pb (Lead) Free | Yes |
| Pb Free Category | Gold Plate over compliant Undercoat-e4 |
| MOQ | 1 |
| Temp. Range (°C) | -55 to +125°C |
| CAGE code | 34371 |
| Die Sale Availability? | No |
| Flow | RH Hermetic |
| LSB Accuracy Over Temperature (±%) | 0.75 |
| LSB Accuracy at 25°C (±%) | 0.125 |
| LSB Max Nonlinearity Over Temperature (%) | 0.5 |
| Length (mm) | 15.2 |
| Max Gain Drift (ppm/°C) | 50 |
| PROTO Availability? | Yes |
| Pkg. Type | CFP |
| Qualification Level | EM |
| Rating | Space |
| SMD URL | 5962-96755 |
| Speed | 0.5LSB in 500ns (Max) |
| TID HDR (krad(Si)) | 100 |
| Width (mm) | 10.2 |
Resources for HS-565BRH
Description
