GreenPAK™ with Load Switches

Jump to Page Section:

GreenPAK™ family devices that include load switches offer the user the high level of flexibility that comes from connecting and configuring the resources of GreenPAK, while at the same time controlling high drive current power switches. Controlling the load switches is easy, with the flexibility to connect I/O pins, Look Up Tables (LUTs), Counter/Delay macro-cells, or other GreenPAK macro-cells as the source signals for switching on and off.

This expanding family of devices includes power switches up to 2A, with both single power switch and dual power switch options.

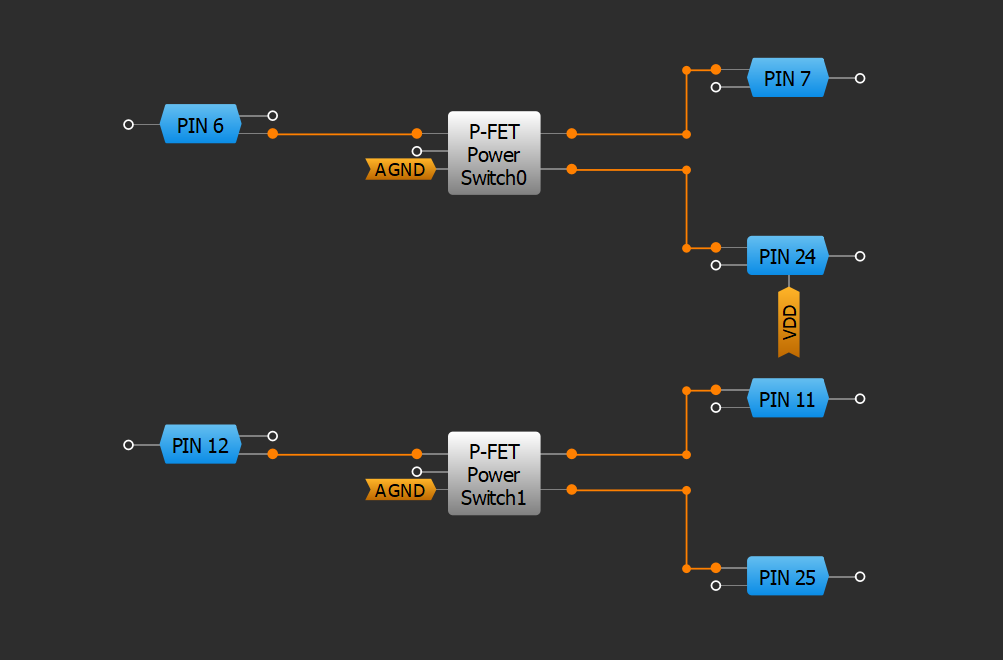

Controlling the Load Switches is as simple as making a connection inside GreenPAK Designer, the same as any other resource. This “point-and-click” simplicity makes using these powerful features easy.

Product Selection Table

Processing table

	Nominal VDD	VDD2 (V)	GPIOs (#)	Special Features	ACMP Analog Comparator (#)	DCMP	CNT/DLY (Max) (#)	LUTs (Max) (#)	DFF (Max) (#)	Pipe Delay	# of Programable Delays (#)	Oscillator Type	Temperature Sensor (ch) (#)	Interface	Memory Type	Pkg. Dimensions (mm)	Pkg. Type	Lead Count (#)
(5) Featured Products (0) Additional Products	1.71-5.5 2.3-5.5	Maximum Minimum	Maximum General purpose input/outputs. Minimum General purpose input/outputs.	2x P-FET (44Ω, 2A) 2x P-FET (44Ω, 2A), Pattern Generator ASM (8 states), 2x P-FET (44Ω, 2A), Pattern Generator P-FET (1.25A, w/ Discharge, Soft-start) P-FET (1.25A, w/o Discharge, Soft-start)	Maximum Minimum		Maximum Minimum	Maximum Minimum	Maximum Minimum	16-stage 8-stage	Maximum Minimum	RC OSC RC OSC, LF OSC, Ring OSC RC OSC, Ring OSC, Crystal OSC	Maximum Minimum	I2C	OTP	1.6 x 2.0 1.6 x 2.5 1.6 x 3.0 2.0 x 3.0	MSTQFN TQFN	Maximum Minimum
Part Number	Logical Operator			Logical Operator		Logical Operator				Logical Operator		Logical Operator		Logical Operator	Logical Operator	Logical Operator	Logical Operator
SLG46116 PDF GreenPAK™ Programmable Mixed-Signal Matrix with P-FET Power Switch without Discharge	1.71-5.5		7	P-FET (1.25A, w/o Discharge, Soft-start)	2		4	10	4	8-stage	1	RC OSC			OTP	1.6 x 2.5	TQFN	14
SLG46117 PDF GreenPAK™ Programmable Mixed-Signal Matrix with P-FET Power Switch with Discharge	1.71-5.5		7	P-FET (1.25A, w/ Discharge, Soft-start)	2		4	10	4	8-stage	1	RC OSC			OTP	1.6 x 2.5	TQFN	14
SLG46127 PDF GreenPAK™ Programmable Mixed-signal Matrix with Dual 44 mΩ / 2 A P-FET	1.71-5.5		6	2x P-FET (44Ω, 2A)	2		4	10	4	8-stage	1	RC OSC			OTP	1.6 x 2.0	MSTQFN	16
SLG46517 PDF GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and Two P-FET Power Switches	1.71-5.5		16	ASM (8 states), 2x P-FET (44Ω, 2A), Pattern Generator	4		7	17	8	16-stage	1	RC OSC, Ring OSC, Crystal OSC		I2C	OTP	2.0 x 3.0	MSTQFN	28
SLG46867 PDF GreenPAK™ Programmable Mixed-signal Matrix with Dual Supply	2.3-5.5		10	2x P-FET (44Ω, 2A), Pattern Generator	4		8	23	21	16-stage	1	RC OSC, LF OSC, Ring OSC	1	I2C	OTP	1.6 x 3.0	MSTQFN	20
