Overview

The iW338 is a generic PWM signal generator IC that converts a 0V to 0.6V analog voltage to an inverted 0% to 100% PWM duty cycle. The PWM frequency range is set by an external capacitor and can be programmed from 100Hz to 50kHz. The output of the iW338 is a 5V PWM driver capable of driving an external optocoupler or MOSFET.

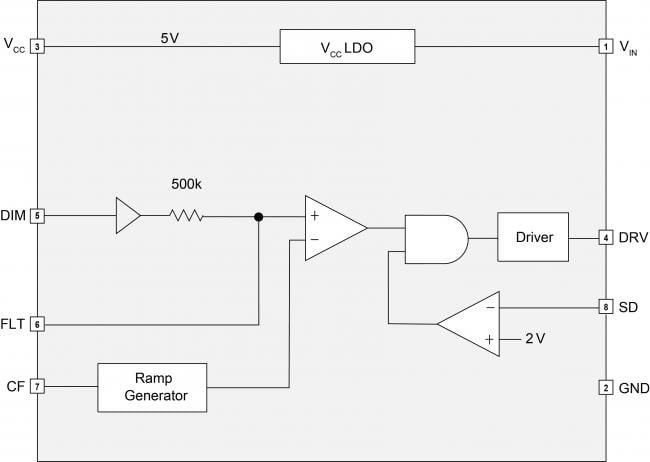

iW338 Functional Block Diagram

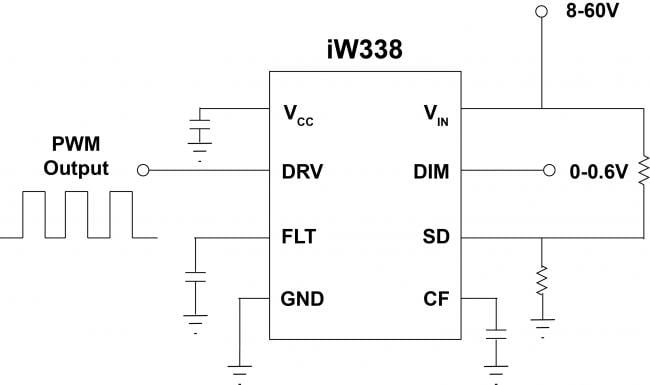

iW338 Typical Applications Diagram
iW338 Functional Block Diagram
iW338 Typical Applications Diagram
  • Input voltage: 8V to 60V
  • 1% PWM duty cycle tolerance
  • Programmable PWM frequency range: 100Hz to 50kHz
  • Integrated 5V LDO
  • For inputs up to 60V
  • Reduces BOM count

Applications

  • PWM analog LED dimming
  • Warm dimming

Documentation

Type Title Date
Product Brief
iW338 Product Summary
PDF 415 KB
Brochure
Industrial Power Management Brochure
PDF 5.51 MB 日本語
Datasheet
iW338 Datasheet
PDF 639 KB
Other
Reference Design EBC20040: iW3689-11 and iW338-10, 230VAC Input, 54V/150mA Output for Dimmable LED Driver Design with Thermal Color Dimming
ZIP 1.87 MB
4 items
