250mA Single LDO with Low IQ, Low Noise and High PSRR LDO
Jump to Page Section:
Overview
Description

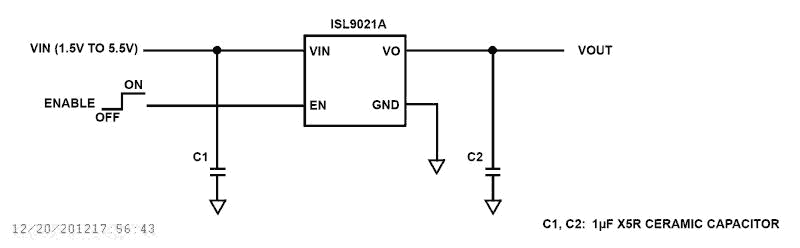

The ISL9021A is a single LDO, which provides high performance, low input voltage and high PSRR. It delivers guaranteed continuous 250mA load current and is stable with 1µF to 4. 7µF of output capacitance (±30%) with an ESR range of 5mΩ to 400mΩ. The input voltage range for the ISL9021A is between 1. 5V to 5. 5V and the output voltage comes in many fixed voltage options with ±1. 8% accuracy over-temperature, line and load ranges. The ISL9021A has typical PSRR of 75dB @ 10kHz and 50dB @ 1MHz. The reverse current protection feature prevents current from flowing back to the power source when the output voltage is pulled higher than the input. The ISL9021A is offered in tiny 4-bump 0. 975mmx1. 155mm WLCSP and 1. 6mmx1. 6mm 6 Ld µTDFN packages.
Features
- High Performance LDO with 250mA Guaranteed Continuous Output Current
- Input Voltage Range: 1.5V to 5.5V
- Output Voltage Range: 1.2V to 3.3V
- High PSRR: 75dB @ 10kHz, 50dB @ 1MHz
- Low Quiescent Current: 35µA
- Dropout Voltage: <150mV @ 250mA
- Stable with 1µF to 4.7µF Output Capacitance (±30%) with an ESR range of 5mΩ to 400mΩ
- ±1.8% Output Accuracy Over-Temperature/Load/Line
- Soft-start Limits Input Current Surge During Enable
- Current Limit and Overheat Protection
- -40°C to +85°C Operating Temperature Range
- Available in 0.975mmx1.155mm 4-bump WLCSP Package and 1.6mmx1.6mm 6 Ld µTDFN
- Pb-free (RoHS compliant)
Applications
| Smart Industrial Weight Scale | |
| IR Contactless Thermometer | |
| Medical Patch | |
| Portable Ultraviolet Disinfector | |
| Instrument Panel for Light Electric Vehicles |
Applications
- PDAs, Cell Phones and Smart Phones
- Portable Instruments, MP3 Players
- Handheld Devices including Medical Handhelds
Documentation
| Document title | Document type Type | Date Date | |
|---|---|---|---|
| PDF 625 KB | Datasheet | ||
| PDF 509 KB | Application Note | ||
| PDF 397 KB | Application Note | ||
| PDF 1.55 MB | Manual - Development Tools | ||
| PDF 414 KB | Product Advisory | ||
5 items
|
|||
Design & Development
Software & Tools
Boards & Kits
Boards & Kits
Power Supply Reference Demo Board for the Xilinx Zynq Ultrascale+™ MPSoC
The ISLUSPLUS-UC1DEMO1Z and ISLUSPLUS-UC2DEMO1Z designs provide a power supply reference solution for the Xilinx Zynq UltraScale+™ MPSoC.
The power supply rail...
Featured Documents:
Power Supply Reference Demo Board for the Xilinx Zynq Ultrascale+™ MPSoC
The ISLUSPLUS-UC1DEMO1Z and ISLUSPLUS-UC2DEMO1Z designs provide a power supply reference solution for the Xilinx Zynq UltraScale+™ MPSoC.
The power supply rail...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
Pkg. Type |
Carrier Type |
MOQ |
Buy / Sample |
|
|---|---|---|---|---|
| Part Number | ||||
ISL9021AIIBZ-T Last Time Buy Samples Available |
WLCSP-BP | Reel | 3000 | Get Samples, |
ISL9021AIICZ-T Last Time Buy Samples Available |
WLCSP-BP | Reel | 3000 | Get Samples, |
ISL9021AIIFZ-T Last Time Buy Samples Available |
WLCSP-BP | Reel | 3000 | Get Samples, |
ISL9021AIIKZ-T Last Time Buy Samples Available |
WLCSP-BP | Reel | 3000 | Get Samples, |
ISL9021AIIMZ-T Last Time Buy Samples Available |
WLCSP-BP | Reel | 3000 | Get Samples, |
ISL9021AIINZ-T Last Time Buy Samples Available |
WLCSP-BP | Reel | 3000 | Get Samples, |
ISL9021AIIUZ-T Last Time Buy Samples Available |
WLCSP-BP | Reel | 3000 | Get Samples, |
ISL9021AIIWZ-T Last Time Buy Samples Available |
WLCSP-BP | Reel | 3000 | Get Samples, |
ISL9021AIRUBZ-T Last Time Buy Samples Available |
uTDFN | Reel | 3000 | Get Samples, |
ISL9021AIRUBZ-T7A Last Time Buy Samples Available |
uTDFN | Reel | 250 | Get Samples, |
ISL9021AIRUCZ-T Last Time Buy Samples Available |
uTDFN | Reel | 3000 | Get Samples, |
ISL9021AIRUCZ-T7A Last Time Buy Samples Available |
uTDFN | Reel | 250 | Get Samples, |
ISL9021AIRUFZ-T Last Time Buy Samples Available |
uTDFN | Reel | 3000 | Get Samples, |
ISL9021AIRUFZ-T7A Last Time Buy Samples Available |
uTDFN | Reel | 250 | Get Samples, |
ISL9021AIRUJZ-T Last Time Buy Samples Available |
uTDFN | Reel | 3000 | Get Samples, |
ISL9021AIRUJZ-T7A Last Time Buy Samples Available |
uTDFN | Reel | 250 | Get Samples, |
ISL9021AIRUKZ-T Last Time Buy Samples Available |
uTDFN | Reel | 3000 | Get Samples, |
ISL9021AIRUKZ-T7A Last Time Buy Samples Available |
uTDFN | Reel | 250 | Get Samples, |
ISL9021AIRUMZ-T Last Time Buy Samples Available |
uTDFN | Reel | 3000 | Get Samples, |
ISL9021AIRUMZ-T7A Last Time Buy Samples Available |
uTDFN | Reel | 250 | Get Samples, |
ISL9021AIRUNZ-T Last Time Buy Samples Available |
uTDFN | Reel | 3000 | Get Samples, |
ISL9021AIRUNZ-T7A Last Time Buy Samples Available |
uTDFN | Reel | 250 | Get Samples, |
ISL9021AIRUWZ-T Last Time Buy Samples Available |
uTDFN | Reel | 3000 | Get Samples, |
ISL9021AIRUWZ-T7A Last Time Buy Samples Available |
uTDFN | Reel | 250 | Get Samples, |
ISL9021AIRUYZ-T Last Time Buy Samples Available |
uTDFN | Reel | 3000 | Get Samples, |
ISL9021AIRUYZ-T7A Last Time Buy Samples Available |
uTDFN | Reel | 250 | Get Samples, |
