RTOS MPU with 10MB of On-chip RAM
Jump to Page Section:
Back to top
Explore ECAD Models
Overview
Description

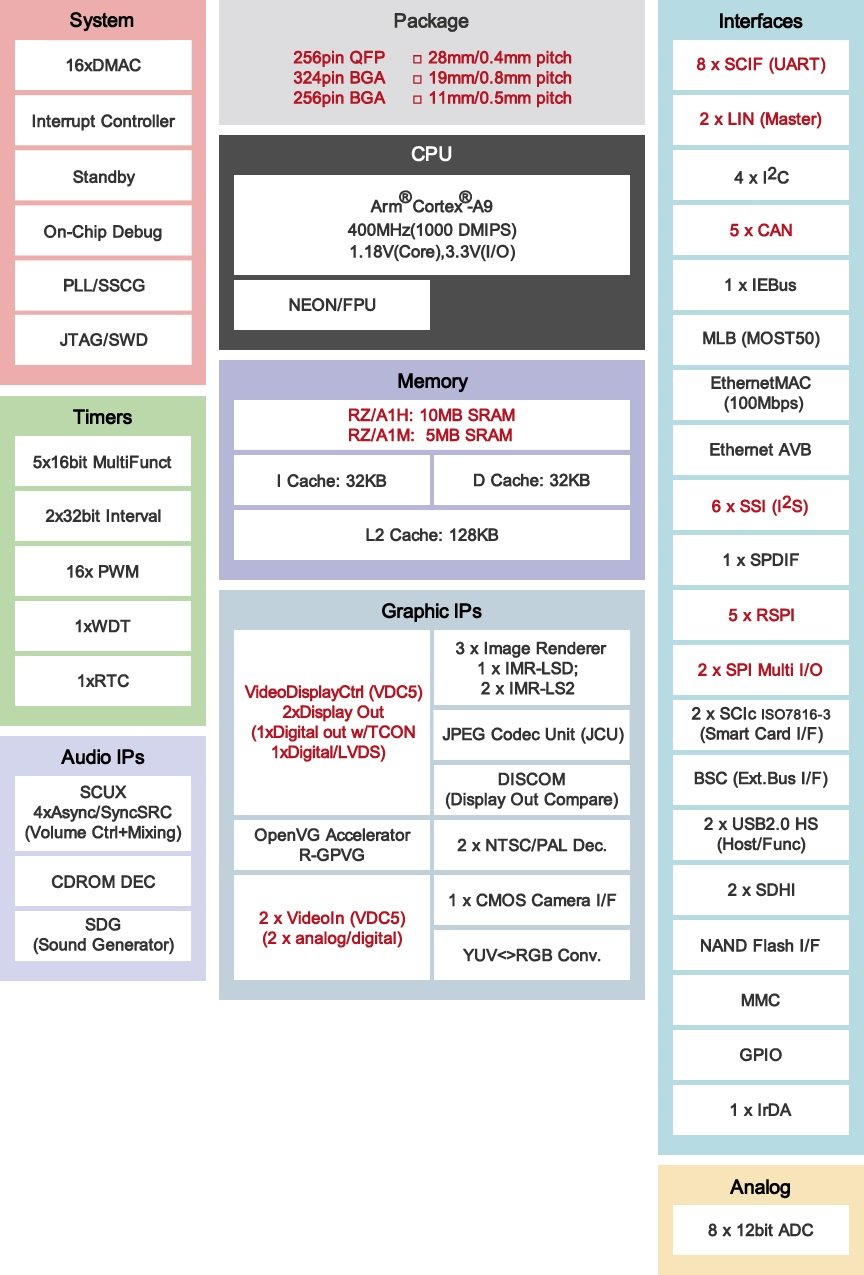

RZ/A1H is the premium full-featured part in the RZ/A1 family with an Arm® Cortex®-A9 core running at 400MHz and 10MB of on-chip SRAM. With 10MB on-chip SRAM, the RZ/A1H supports up to 2 Displays with WXGA (1280x800) resolution without the need for external memory. RZ/A1H enables very compact embedded designs without the need to worry about memory procurement and memory EOL. With RZ/A1H, you can design your embedded system like an MCU and get the performance of a 400MHz Arm® Cortex®-A9 MPU. Enabled for support with Linux, RTOS or Bare-metal, this is the ideal device for designing Intelligent IoT End Point devices with compactness and high performance. Supported in QFP and BGA packages with different sizes to support board layout flexibility and with SDRAM interface to expand up to 128MB of external memory. Get Started Using RZ/A1 MPUs.
Features
- CPU: Cortex-A9 core, Max. 400MHz
- Voltage: 3.3V/1.18V
- Package: 324-pin FBGA, 256-pin LFBGA, 256-pin LFQFP
- Memory: SRAM 10MB
- Timer: 32-bit Timer (ch) x 2, 16-bit Timer (ch) x 5, Watchdog Timer (ch) x 1, Motor Control PWM Timer x 8
- PWM: PWM Output x 16, 3-phase PWM Output Function
- Analog function: 12-bit A/D Converter (ch) x 8
- Others: PLL, RTC, Power-On Reset
Applications
Applications
- Home Appliance
- Healthcare
Documentation
| Title | Type | Date | |
|---|---|---|---|
Manual - Hardware
|
|||
Related Files:
|
Application Note
|
||
PDF212 KB Related Files:
|
Application Note
|
||
Application Note
|
|||
Application Note
|
|||
Application Note
|
|||
Application Note
|
|||
Application Note
|
|||
Related Files:
|
Application Note
|
||
Application Note
|
|||
Application Note
|
|||
PDF373 KB
|
Application Note
|
||
PDF645 KB
|
Application Note
|
||
Application Note
|
|||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
PDF574 KB Related Files:
|
Application Note
|
||
Application Note
|
|||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
PDF149 KB Related Files:
|
Application Note
|
||
PDF771 KB Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
PDF216 KB Related Files:
|
Application Note
|
||
PDF556 KB Related Files:
|
Application Note
|
||
Application Note
|
|||
Application Note
|
|||
Application Note
|
|||
Brochure
|
|||
Brochure
|
|||
Brochure
|
|||
PDF5.27 MB
|
Brochure
|
||
Brochure
|
|||
Flyer
|
|||
General Reliability Literature
|
|||
Manual - Development Tools
|
|||
Manual - Development Tools
|
|||
PDF693 KB
|
Manual - Development Tools
|
||
Manual - Development Tools
|
|||
Manual - Development Tools
|
|||
PDF6.27 MB
|
Manual - Development Tools
|
||
Other
|
|||
Other
|
|||
Product Change Notice
|
|||
Product Change Notice
|
|||
Product Change Notice
|
|||
PDF3.02 MB
|
Release Note
|
||
PDF2.64 MB
|
Release Note
|
||
Release Note
|
|||
Release Note
|
|||
Release Note
|
|||
PDF2.87 MB
|
Release Note
|
||
Release Note
|
|||
Release Note
|
|||
Release Note
|
|||
Release Note
|
|||
Release Note
|
|||
PDF1.52 MB
|
Release Note
|
||
Release Note
|
|||
Release Note
|
|||
PDF945 KB
|
Release Note
|
||
PDF1.45 MB
|
Release Note
|
||
PDF1.00 MB
|
Release Note
|
||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Tool News - Note
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
Design & Development
Software & Tools
Software & Tools
| e² studio -information for RZ FamilyEclipse-based Renesas integrated development environment (IDE). | IDE and Coding Tool | Renesas |
| RZ/A Software Development KitSoftware package for the RZ/A | Software Package | Renesas |
| RZ/A1H FreeRTOS™ Software PackageSoftware package for HMI software development kit using RZ/A1H. Support for camera input, LCD output, and image adjustment. | Software Package | Renesas |
| QE for Camera: Development Assistance Tool for Camera ApplicationsThis development assistance tool supports the development of embedded systems which use the camera functions of display controllers from Renesas. [Plugin for Renesas IDE "e2 studio"] | Solution Toolkit | Renesas |
| QE for Display: Development Assistance Tool for Display ApplicationsThis development assistance tool supports the development of embedded systems which use the LCD display functions of display controllers from Renesas. [Plugin for Renesas IDE "e² studio"] | Solution Toolkit | Renesas |
| RZ Smart ConfiguratorRZ Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins. | Solution Toolkit | Renesas |
| TES Guiliani'Prepaid by Renesas' TES Guiliani-Lite for RZ/A | Solution Toolkit | Renesas |
| USB DriversDevice drivers for USB communication using USB interface with built-in microcomputer and USB ASSP | USB | Renesas |
Sample Code
Sample Code
| Title | Type | Date | |
|---|---|---|---|
Related Files:
Application: Consumer Electronics, Industrial, Key Technology, Medical and Healthcare Solutions Compiler: GNU ARM Embedded Function: HMI IDE: e2 studio |
Sample Code |
||
Related Files:
Application: Automotive, Consumer Electronics, Key Technology, Medical and Healthcare Solutions Compiler: GNU ARM Embedded IDE: e2 studio |
Sample Code |
||
Related Files:
Compiler: ARMCC, GNUARM-NONE, ICCARM IDE: DS-5, e2 studio, IAR EWARM |
Sample Code |
||
Related Files:
Compiler: ARMCC, GNUARM-RZ, ICCARM IDE: DS-5, IAR EWARM |
Sample Code |
||
Related Files:
Compiler: ARMCC, GNUARM-RZ, ICCARM IDE: DS-5, IAR EWARM |
Sample Code |
||
Related Files:
IDE: e2 studio |
Sample Code |
||
ZIP13.74 MB Related Files:
Compiler: GNUARM-NONE IDE: e2 studio |
Sample Code |
||
ZIP7.74 MB Related Files:
Compiler: ARMCC, GNUARM-RZ, ICCARM IDE: DS-5, IAR EWARM |
Sample Code |
||
Related Files:
Compiler: ARMCC, GNUARM-RZ, ICCARM IDE: DS-5, IAR EWARM |
Sample Code |
||
Related Files:
Compiler: ARMCC, GNUARM-RZ, ICCARM IDE: DS-5, IAR EWARM |
Sample Code |
||
Related Files:
Compiler: ARMCC, GNUARM-RZ, ICCARM IDE: DS-5, IAR EWARM |
Sample Code |
||
ZIP8.05 MB Compiler: ARMCC, GNUARM-RZ, ICCARM IDE: DS-5, IAR EWARM |
Sample Code |
||
ZIP11.86 MB Related Files:
Compiler: GNUARM-NONE IDE: e2 studio |
Sample Code |
||
ZIP10.06 MB Related Files:
IDE: e2 studio |
Sample Code |
||
ZIP760 KB Related Files:
Compiler: GNUARM-NONE IDE: e2 studio |
Sample Code |
||
ZIP1.15 MB Related Files:
Compiler: GNUARM-NONE IDE: e2 studio |
Sample Code |
||
ZIP44.76 MB Compiler: ICCARM IDE: IAR EWARM |
Sample Code |
||
ZIP3.85 MB Related Files:
Compiler: GNUARM-NONE IDE: e2 studio |
Sample Code |
Boards & Kits
Boards & Kits
High Resolution Embedded GUI Solution Kit for RZ/A1H
The High Resolution Embedded GUI Solution kit (YLCDRZA1H) provides a quick and easy way to add a low-cost LCD touchscreen and communication functions to embedded...
Renesas Starter Kit+ for RZ/A1H
The Renesas Starter Kit+ for RZ/A1H has been developed to speed up device evaluation, code development and so reduce time to market. An Renesas Starter Kit+, as the...
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
Part Number |
Main CPU |
Operating Freq (Max) (MHz) |
Bit Size |
Sub CPU |
RAM (KB) |
Lead Count (#) |
Memory Interface |
GPU |
Accelerator |
PCIe Revision |
CAN (ch) |
Ethernet |
USB |
I/O Ports |
Pkg. Type |
Temp. Range |
PLP |
Data Flash (KB) |
RTC |
DMA |
Timer |
ADC |
Human Machine Interface |
Supply Voltage (V) |
CPU |
Series Name |
Buy / Sample |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cortex-A9 | 400 | 32 | - | 10240 | 324 | SDRAM/66MHz (32-bit) | - | - | - | 5 | 10/100M x 1 ch | USB2.0 × 2 ch (H/F) | 171 | FBGA | -40 to 85°C | 2031 Mar | 0 | Yes | Yes | 16-bit x 5-ch, 32-bit x 2-ch | 12-bit x 8-ch | Display Function | 3 - 3.6 | Cortex-A9 x 1 | RZ/A | ||
| Cortex-A9 | 400 | 32 | - | 10240 | 256 | SDRAM/66MHz (32-bit) | - | - | - | 5 | 10/100M x 1 ch | USB2.0 × 2 ch (H/F) | 139 | LFBGA | -40 to 85°C | 2031 Mar | 0 | Yes | Yes | 16-bit x 5-ch, 32-bit x 2-ch | 12-bit x 8-ch | Display Function | 3 - 3.6 | Cortex-A9 x 1 | RZ/A | ||
| Cortex-A9 | 400 | 32 | - | 10240 | 256 | SDRAM/66MHz (32-bit) | - | - | - | 5 | 10/100M x 1 ch | USB2.0 × 2 ch (H/F) | 139 | LQFP | -40 to 85°C | 2031 Mar | 0 | Yes | Yes | 16-bit x 5-ch, 32-bit x 2-ch | 12-bit x 8-ch | Display Function | 3 - 3.6 | Cortex-A9 x 1 | RZ/A | ||
| Cortex-A9 | 400 | 32 | - | 10240 | 256 | SDRAM/66MHz (32-bit) | - | - | - | 5 | 10/100M x 1 ch | USB2.0 × 2 ch (H/F) | 139 | LFBGA | -40 to 85°C | N/A | 0 | Yes | Yes | 16-bit x 5-ch, 32-bit x 2-ch | 12-bit x 8-ch | Display Function | 3 - 3.6 | Cortex-A9 x 1 | RZ/A | Get Samples, | |
| Cortex-A9 | 400 | 32 | - | 10240 | 256 | SDRAM/66MHz (32-bit) | - | - | - | 5 | 10/100M x 1 ch | USB2.0 × 2 ch (H/F) | 139 | LQFP | -40 to 85°C | N/A | 0 | Yes | Yes | 16-bit x 5-ch, 32-bit x 2-ch | 12-bit x 8-ch | Display Function | 3 - 3.6 | Cortex-A9 x 1 | RZ/A | Get Samples, | |
| Cortex-A9 | 400 | 32 | - | 10240 | 324 | SDRAM/66MHz (32-bit) | - | - | - | 5 | 10/100M x 1 ch | USB2.0 × 2 ch (H/F) | 171 | FBGA | -40 to 85°C | N/A | 0 | Yes | Yes | 16-bit x 5-ch, 32-bit x 2-ch | 12-bit x 8-ch | Display Function | 3 - 3.6 | Cortex-A9 x 1 | RZ/A | Get Samples, |
