The RH850/C1M-Ax microcontroller is equipped with an RH850 Family G3MH (C1M-A2 is dual)CPU core, which operates at a frequency of 240MHz for C1M-A1 and 320MHz for C1M-A2, providing high processing power. Along with the ROM, RAM and DMA, it includes various timers such as a motor control timer, various serial interfaces including CAN (CAN FD compatible), a 12-bit A/D converter (ADC), an R/D converter (RDC3A) that converts the resolver output signal to digital angle data, and a CPU and parallel motor control unit (EMU3), etc., providing peripheral functions that are ideal for motor control in HEVs/EVs.In addition, C1M-A2 can simultaneously control two motors.

Need help figuring out what you need to get started? Jump to the Design Support section for details.

Features

  • CPU Core:

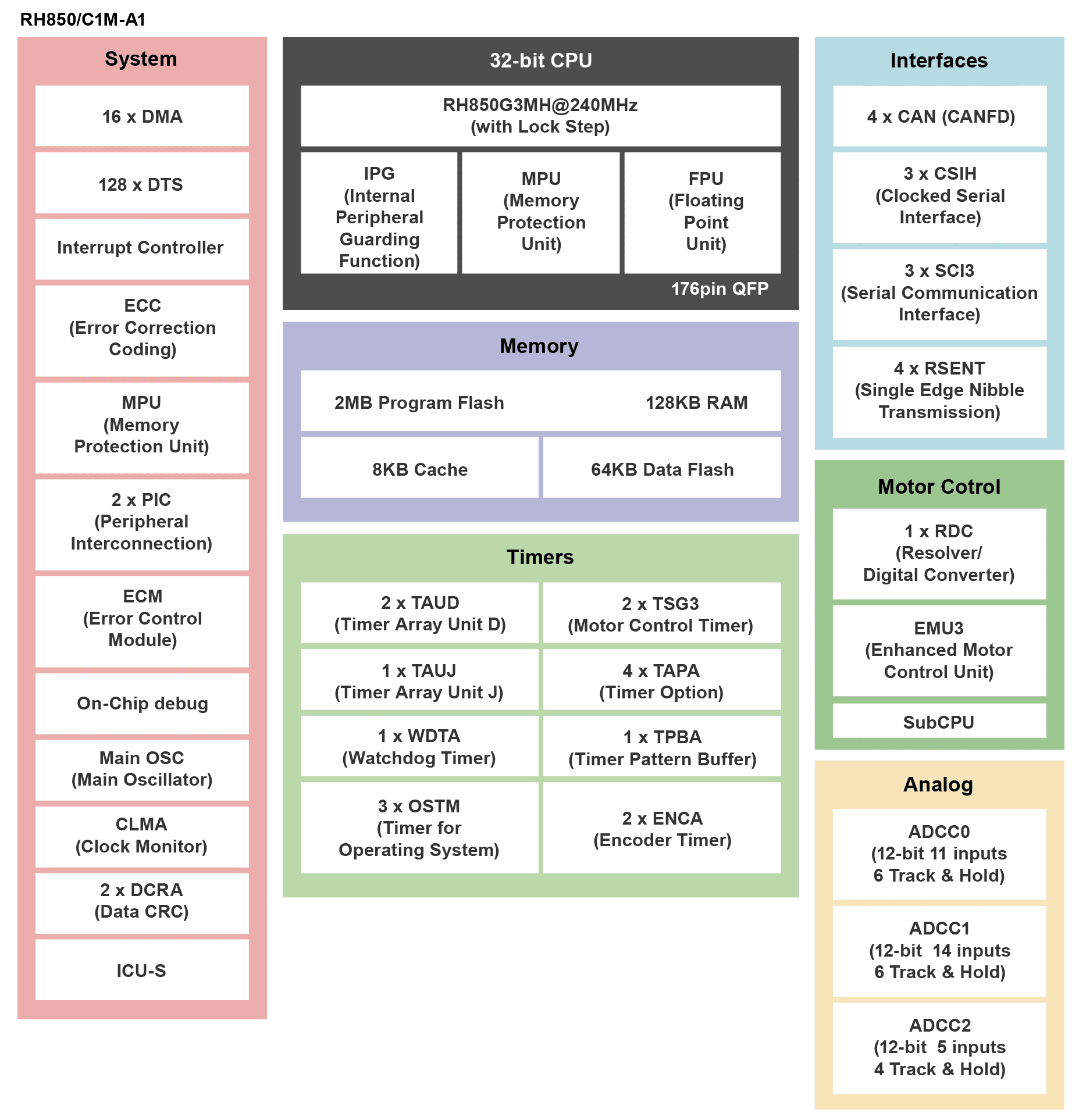

    • C1M-A1: 240MHz core (Inc. Lockstep dual core x1)

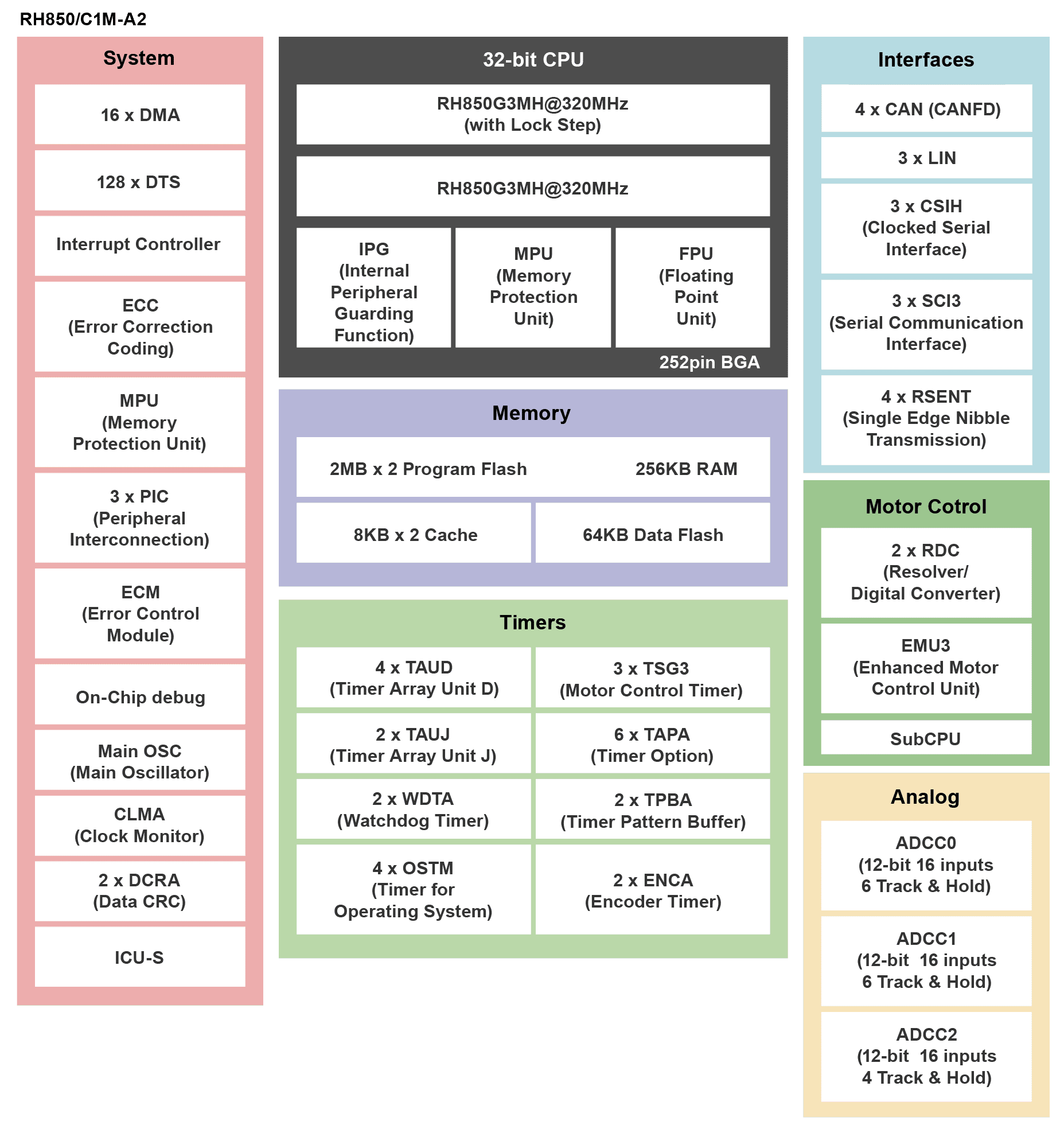

    • C1M-A2: 320MHz core x2 (Inc. Lockstep dual core x1)
    • FPU
  • Clock:
    • Main Oscillator: 20 MHz
    • PLL with selectable SSCG mode:  240 or 320 MHz
    • PLL without SSCG mode: 80 MHz
    • On-chip low-speed oscillator: 240 kHz
    • Data transfer: DMAC / DTS
  • Timer:
    • Timer array unit D (TAUD)  2 or 4 units
    • Timer array unit J (TAUJ)  1 or 2 units
    • Motor control timer (TSG3) 2 or 3 units
    • Encoder timer (ENCA) 2 units
  • Analog: SAR A/D Converter 30 or 48ch, 3 units
  • Communication Interfaces:
    • Clocked Serial Interface H (CSIH) 3 channels
    • CAN interface(RS-CANFD) 4 channels
    • LIN interface(RLIN3) 3 channels
    • Serial Communication Interface (SCI3) 3 channels
    • RSENT 4 channel
  • Motor Control:
    • Motor control timer (TSG3) 2 or 3 units
    • R/D converter (RDC3A) 1 or 2 units
    • Enhanced motor control unit (EMU3) 1 unit
  • Safety:
    • Multi-Input Signature Generator (MISG)
    • Clock Monitor
    • Watchdog Timer
    • Secure Watchdog Timer
    • Memory protection function
  • Power Supply Voltage:
    • 1.15 - 1.35 V (CPU core)
    • 4.5 - 5.5 V (I/O, System, AD converter, RD converter)
  • Temperature: Tj= -40 - +150°

Applications


Design Support

RH850 Family FAQs

Find answers to common questions, support articles and development hints.

Contact Support

Contact sales or technical support.

RenesasRulz Forum

Browse material, post questions and join moderated discussion related to Renesas products.

Hardware Tools

Programming Tools

Programming Tools Description Featured Documents Ordering
E2 Emulator On-chip debugging emulator for RH850 family and RL78 family. Also available as a flash memory programmer. pdf_icon_for_table.png User's Manual Buy
Renesas Flash Programmer (Programming GUI) The Renesas Flash Programmer provides usable and functional support for programming the on-chip flash memory of Renesas microcontrollers in each phase of development and mass production.
  • A simple GUI makes operations easy, even for first-time developers
  • PC-controlled programming via the E1 emulator or E2 emulator, a serial or USB connection
pdf_icon_for_table.png User's Manual

Evaluation Software

Buy

Software Tools

Compiler Toolchain

Company Company Logo Description
Green Hills Multi
Green Hills Software Logo
RH850 Embedded Software Solutions
  • Multi development environments
    Quickly develop, debug, test, and optimize embedded and real-time applications
  • Green Hills Optimizing Compilers
    Generating the smallest and fastest code from C, C++, and Ada
  • simrh850
    Full-feature multi-core instruction-accurate simulation tool that allows faster development and deployment of V850 and RH850 multi-core projects. Support for various shared-memory and isolated architectures, as well as complete support for RH850 hyper-threading capabilities
IAR Systems
iar
IAR Embedded Workbench provides extensive support for RH850 devices. IAR Embedded Workbench is a complete set of development tools with leading optimization technology for creating powerful automotive applications.

MCAL Software

Software Description Download
Renesas MCAL Renesas' MCAL (Microcontroller Abstraction Layer) software drivers can be obtained as a stand-alone software package. This package includes SPAL and COM based on AR4.2.2.
  • SPAL (including ADC, DIO, FLS, GPT, ICU, MCU, PORT, PWM, SPI, WDG)
  • COM (including CAN, LIN)
The software package is available free of charge and as is. In case you want to buy a different software package please contact us.
Software

MBD Solution

Software Description Featured Documents Download
Renesas IP Model for MILS

Renesas IP model for MILS is a model which realizes detailed functions of peripherals on MBD. It can be executed using the license key and the tools listed in the documentation.

  • Renesas IP BlockSet RH850/EMU3
  • Renesas IP BlockSet RH850/TSG3

The limited trial version software package is available free of charge and as is. In case you want to buy a different fully functional version software package please contact us.
Community: Renesas Rulz

pdf_icon_for_table.png Model Overview
pdf_icon_for_table.png Necessary Tools for IP Model
archive Software
Motor SW Driver Model Renesas' Motor SW Driver Model is a model which establishes compatibility of peripheral operations of MBD and C code. It can be executed using the license key and the tools listed in the documentation. The limited trial version software package is available free of charge and as is. In case you want to buy a different fully functional version software package please contact us.
Community: Renesas Rulz
pdf_icon_for_table.png Model Overview
pdf_icon_for_table.png Necessary Tools for SW Driver Model
archive Software

FuSa Documentation

Tool Description Featured Documents Download
Functional Safety Safety analysis for target applications with safety goals up to ASIL C is ongoing and planned to be published by e/o August 2021 - -

Documentation

Title language Type Format File Size Date
User Guides & Manuals
C1M-A1/2 ICUS Driver User's Manual 日本語 Manual PDF 83 KB
C1M-A1/2 ICUS User's Manual HW 日本語 Manual PDF 83 KB
C1M-A1/2 SWDT User's Manual HW 日本語 Manual PDF 50 KB
Errata for RH850/C1M-A User's Manual: Hardware 日本語 Manual PDF 5.20 MB
RH850/C1M-A Flash Memory User's Manual: Hardware Interface (rev 1.10) 日本語 Manual PDF 1.89 MB
RH850/C1M-A User's Manual: Hardware 日本語 Manual PDF 21.78 MB
RH850/G3MH User's Manual: Software 日本語 Manual PDF 5.17 MB
Application Notes & White Papers
RH850/C1M-Ax Clocked Serial Interface H (CSIH) 日本語 Application Note PDF 423 KB
RH850/C1M-Ax Main OSC 日本語 Application Note PDF 316 KB
RH850/C1M-Ax Motor Control Timer (TSG3) 日本語 Application Note PDF 378 KB
RH850/C1M-Ax Serial Communication Interface 3 (SCI3) 日本語 Application Note PDF 204 KB
RH850/C1M-Ax Timer Array Unit D (TAUD) 日本語 Application Note PDF 646 KB
Security-Conscious Debugging Methods for RH850 Devices (Main-Core Debugging) 日本語 Application Note PDF 1.17 MB
CAN Controller Usage: Applications and Frequently Asked Questions Application Note PDF 1.81 MB
CAN Communication Time Measurement Solution (E2 Emulator, CS+) 日本語 Application Note PDF 2.09 MB
RV40F DataFlash Usage Application Note PDF 271 KB
Using GHS Compiler with RH850 Application Note PDF 410 KB
Tool News
[Featured Tool] Improved debugging efficiency for the RX and RL78 families Introducing external trigger I/O function of the E2 emulator 日本語 Tool News - Featured Tool PDF 247 KB
[Notification] E2 Emulator, a High-Performance On-Chip Debugging Emulator for R-Car D1 with ARM® Cortex®-A7 and RH850 Family 日本語 Tool News - Featured Tool PDF 239 KB
[Note] C Compiler Package for RH850 Family (No.30-33) 日本語 Tool News - Note PDF 290 KB
[Notes] CS+ Integrated Development Environment 日本語 Tool News - Note PDF 127 KB
[Notification] Flash Programmer Survey Invitation 日本語 Tool News - Notification PDF 29 KB
[Notification] Isolator for E1 Emulator Compatible with E2 Emulator and E2 Emulator Lite 日本語 Tool News - Notification PDF 147 KB
[Notification] Immediately Debugging a Problem with the Power Supplied! E2 Emulator Providing Hot Plug Debugging 日本語 Tool News - Notification PDF 300 KB
[Notification] Renesas Flash Programmer Command-Line Option Function that is Effective for Programming of Renesas MCU Containing Flash Memory 日本語 Tool News - Notification PDF 185 KB
[Upgrade to revision] C Compiler Package for RH850 Family V2.03.00 日本語 Tool News - Release PDF 153 KB
[Upgrade to revision] CS+ Integrated Development Environment V8.05.00 日本語 Tool News - Release PDF 144 KB
[Upgrade to revision] Programming GUI for PG-FP6 Flash Memory Programmer (FP6 Terminal) V1.05.01 日本語 Tool News - Release PDF 57 KB
[Upgrade to revision] Renesas Flash Programmer V3.08.01 日本語 Tool News - Release PDF 81 KB
[Upgrade to revision] CS+ Device Information for RH850 V8.04.01 日本語 Tool News - Release PDF 92 KB
[Upgrade to revision] Programming GUI for PG-FP6 Flash Memory Programmer (FP6 Terminal) V1.05.00 日本語 Tool News - Release PDF 72 KB
[Upgrade to revision] Renesas Flash Programmer V3.08.00 日本語 Tool News - Release PDF 83 KB
[Upgrade to revision] CS+ Integrated Development Environment V8.04.00 日本語 Tool News - Release PDF 491 KB
[Upgrade to revision] Programming GUI for PG-FP6 Flash Memory Programmer (FP6 Terminal) V1.04.02 日本語 Tool News - Release PDF 74 KB
[Upgrade to revision] Renesas Flash Programmer V3.06.02 日本語 Tool News - Release PDF 80 KB
[Upgrade to revision] Device Information (Managed by CS+) for RH850 Family V6.00.01 日本語 Tool News - Release PDF 170 KB
[New release] The E2 Emulator, a New On-Chip Debugging Emulator 日本語 Tool News - Release PDF 128 KB
[Upgrade to revision] CS+ Utilities for the Real-time Operating Systems (RI850V4 V2, RI600V4, RI78V4 V2, and RI600PX) 日本語 Tool News - Release PDF 190 KB
Other
Safety and Security Support Program for Automotive 日本語 Brochure PDF 372 KB
[Flyer] E2Emulator[RTE0T00020KCE00000R] 日本語, 简体中文 Flyer PDF 381 KB
Renesas Software and Tools Flash Memory Programmer PG-FP6 日本語, 简体中文 Flyer PDF 417 KB
CHASSIS AND SAFETY APPLICATIONS Flyer PDF 900 KB
Microcontroller solutions for Flyer PDF 2.01 MB
Semiconductor Package Mount Manual 日本語, 简体中文 Other PDF 10.28 MB
Semiconductor Reliability Handbook 日本語 Other PDF 14.70 MB
QFN Mounting Manual 日本語, 简体中文 Other PDF 3.19 MB
GHS Multi Operating Precautions Release Note PDF 250 KB
C1M-A Tools Introduction Training PDF 1.07 MB
Introduction RH850/C1M-Ax Training PDF 2.21 MB
RH850/C1M-Ax Workshop Training ZIP 13.01 MB

Downloads

Title language Type Format File Size Date
Software
[Evaluation Software] CS+ for CC V8.05.00 (Single Download) 日本語 Evaluation Software ZIP 719.07 MB
BSDL for C1M-A1 Software BSDL 19 KB
BSDL for C1M-A2 Software BSDL 24 KB
Device File for C1M-A2 Software DVF 5.42 MB
Device file for C1M-A1 Software DVF 5.41 MB
CS+ Cycle Accurate Simulator for RH850/C1x V1.04.00 日本語 Software EXE 3.51 MB
AUTOSAR_RH850_C1M-Ax_MCAL_Ver42.01.00_QM_MP Software ZIP 31.21 MB
GHS Multi Configuration Files Software ZIP 6.37 MB
GHS Multi Configuration Files with USB driver Software ZIP 17.59 MB
E1, E20 Self-Checking Program V.1.01.00 日本語 Software EXE 1.50 MB
Upgrades
RH850 Compiler CC-RH V2.03.00 日本語 Upgrade - Compiler ZIP 16.50 MB
RH850 Compiler CC-RH V2.02.00 日本語 Upgrade - Compiler ZIP 16.28 MB
Software for Floating License Management V1.00.00 日本語 Upgrade - Compiler EXE 134.85 MB
CS+ for CC common program V8.05.00 日本語 Upgrade - IDE ZIP 243.98 MB
Differential update program V8.05.00 for CS+ for CC common program V8.02.00 or later 日本語 Upgrade - IDE ZIP 80.87 MB
CS+ Device Information for RH850 V8.04.01 日本語 Upgrade - IDE ZIP 89.87 MB
CS+ Device Information for RH850 V8.04.00 日本語 Upgrade - IDE ZIP 89.88 MB
CS+ QE V9.04.00 日本語 Upgrade - IDE ZIP 4.02 MB
CS+ for CC Emulator Utilities V1.03.00 日本語 Upgrade - IDE ZIP 14.18 MB
Update Manager V2.03.01 日本語 Upgrade - IDE ZIP 3.44 MB
CS+ Utilities V3.05.00 日本語 Upgrade - IDE EXE 3.62 MB
USB Driver for Renesas E-Series V1.01.00 日本語 Upgrade - IDE ZIP 5.07 MB
[Trial Software] RI850V4 V2.01.01 Real-time OS for RH850 Family 日本語 Upgrade - OS ZIP 17.03 MB
Parameter File for RH850 Family: RH850 V1.01 日本語 Upgrade - Programmer ZIP 6 KB

Software & Tool Pages

Title Type Description Company
IAR Embedded Workbench® for RH850 Software Package IAR Embedded Workbench is a complete set of development tools with leading optimization technology for creating powerful automotive applications. Renesas
Renesas MCAL Software Package Renesas' MCAL (Microcontroller Abstraction Layer) software drivers can be obtained as a stand-alone software package. Renesas
RI850V4 V2 Real-time OS for RH850 Family ITRON OS μITRON4.0 Specification real-time OS for RH850 Family [Required IDE : CS+]
Renesas
C Compiler Package for RH850 Family Compiler/Assembler C Compiler and IDE for RH850 Family [IDE: CS+]
Renesas
E1 emulator [R0E000010KCE00] (Discontinued product) (Discontinued) Emulator On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RH850, RL78, RX, V850, 78K0R, 78K0, R8C] Renesas
E20 emulator [R0E000200KCT00] Emulator On-chip debugging emulator. Also available as a flash memory programmer. For RX600 or RX700 Series MCU, trace functions and Real-time RAM monitor functions available. For MCUs other than RX600 or RX700, the available debugging function corresponds to that of E1 Emulator. [Support MCU/MPU: RX, RL78, RH850, V850, 78K0R, 78K0, R8C] Renesas
E2 emulator [RTE0T00020KCE00000R] Emulator On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX] Renesas
e² studio IDE and Coding Tool Eclipse-based Renesas integrated development environment (IDE).
[Support MCU/MPU: RA, RE, RX, RL78, RH850, Renesas Synergy, RZ]
(Note: You need to install compiler separately as an additional software)
(Note: No separate e² studio installation required for RA FSP, this will be installed as part of the FSP with e² studio installer (Platform Installer) on GitHub.)
Renesas
CS+ IDE and Coding Tool Renesas integrated development environment (IDE) [Support MCU/MPU: RH850, V850, RX, RL78, 78K0R, 78K0] Important: CS+ is not generally promoted to U.S. and European customers. Renesas
INCA IDE and Coding Tool INCA tools are used for ECU development and test as well as for validation and calibration of electronically controlled systems in the vehicle, on the test bench, or in a virtual environment on the PC. Renesas
RH850 Multicore Model-Based Environment [Embedded Target for RH850 Multicore] Model-Based Development The Embedded Target for RH850 Multicore is a RH850 model-based multicore environment that simplifies complex driving control for the autonomous-driving era. In addition to the multicore support of the PILS tool for automatic configuration of environments, Embedded Target for Renesas CS+, it can also be interlinked with a model-based parallelization tool from eSOL Co., Ltd. Renesas
PG-FP6 Programmer (Unit/SW) Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C] Renesas
Renesas Flash Programmer (Programming GUI) Programmer (Unit/SW) Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78KR, 78K0] Renesas
FL-PR6オプション 簡単書込みスイッチ Programmer (Unit/SW) FL-PR6 の操作部をボックス化。操作性・耐久性・視認性に優れた書込みスイッチです。 Renesas
FL-PR6フラッシュメモリプログラマ Programmer (Unit/SW) FL-PR6フラッシュメモリプログラマ Renesas
Cycle-Accurate Simulator for RH850 Simulator Instruction simulator that can measure times with accuracy close to actual machine of RH850 under PC environment. For a fee. [Support IDE : CS+]
Renesas
Simulator for CS+ of RH850 Family Simulator Simulator for CS+ of RH850 Family [Support IDE : CS+] (Note: This product is included in Compiler Package and is not available separately.)
Renesas
ASCET-DEVELOPER Other Hardware ETAS ASCET-DEVELOPER (ASCET 7) is a tool for developing application software for embedded systems using graphical models and textual programming notations. Renesas
ETK / FETK / XETK – ECU Interfaces Other Hardware The Ethernet-based ETK / FETK / XETK interfaces by ETAS provide direct access to the measurement variables and control parameters of an ECU. Renesas
DESK-LABCAR Other Hardware The ETAS DESK-LABCAR is a professional, compact Hardware-in-the-Loop (HiL) testing system that encourages earlier testing by bringing the testing environment closer to the developer. Renesas

Recommended Peripheral Devices

Analog/Power Device Recommended Product Features Featured Document Ordering
Power Management IC RAA270000KFT Ideal power solution for RH850/E1x/C1x. Integrated fault diagnosis and monitor functions. RAA270000KFT Data sheet (PDF) Contact Sales
Gate Driver R2A25110KSP IGBT Gate Driver with insulating function (micro-isolator), isolation voltage: 2.5KVrms, excessive current protection function, mirror clamp function, soft turnoff function, etc. R2A25110KSP Datasheet (PDF) Contact Sales
