Overview

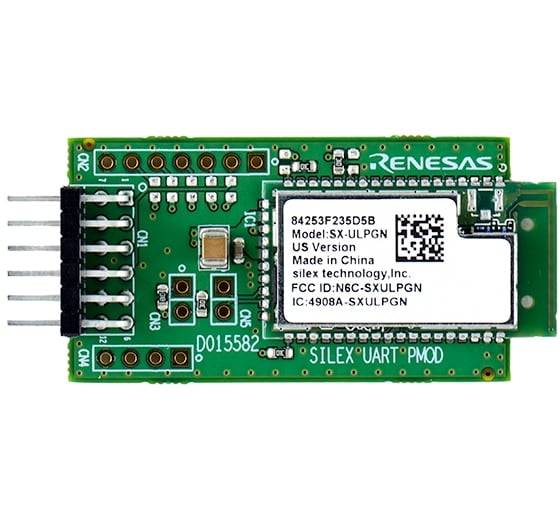

Thr Wi-Fi Pmod Expansion Board enables quick prototyping of wireless connectivity solutions using a variety of Renesas microcontroller (MCU) kits. It features an SX-ULPGN, a single-band 2.4GHz 802.11n module based on the Qualcomm QCA4010 System-on-Chip (SoC).

MCUs Supported

Getting Started

  1. RA Microcontrollers - In order to use the Wi-Fi Pmod Expansion Board with an RA MCU evaluation kit, refer to the Wi-Fi example project for that kit.
    • The project files (including binary/hex files) of the Wi-Fi example project for a kit are provided in the RA example project bundle (-exampleprojects.zip) for that kit which is available with Renesas' Flexible Software Package (FSP). Example: ek-ra6m3-exampleprojects.zip
    • The source code of the Wi-Fi example projects are also available at RA FSP Example Projects on GitHub. Browse to ra-fsp-examples/example_projects/<kit_name>/wifi_<kit_name>_ep. Example: ra-fsp-examples/example_projects/ek_ra6m3/wifi/wifi_ek_ra6m3_ep
  2. RX Microcontrollers - In order to use Wi-Fi Pmod Expansion Board with RX Microcontrollers, refer to the RX65N Cloud Kit.

Certifications

The Wi-Fi Pmod Expansion Board meets the following certifications/standards. Refer to the Wi-Fi Pmod Expansion Board documentation for disclaimer, precautions and more details on the certifications.

Radio Certifications

  • FCC 47 CFR Part 15B
  • CE: Radio Equipment Directive (RED) 2014-53-EU

Material Selection, Waste, Recycling, and Disposal Standards

  • EU RoHS
  • China SJ/T 113642014, 10-year environmental protection use period.
Wi-Fi Pmod Expansion Board
Wi-Fi Pmod Expansion Board
  • IEEE 802.11b/g/n compliant, 2.4GHz, HT20, MCS0-7, up to 13-ch
  • 1x1 single stream system
  • One UART and one HS-UART MCU host interface
  • Full suite of AT command supports
  • 12dBm~17dBm transmit power
  • -89dBm~-96dBm receive sensitivity
  • 76mA Rx, 124mA Tx, 13µA standby power consumption
  • WPA, WPA2, WPS, WEP 64/128 security
  • Station, AP, Concurrent, Wi-Fi direct operating modes
  • IPv4/IPv6, TCP/UPD network protocols
SX-ULPGN Ultra-Low-Power Wi-Fi IoT Module

Documentation

Title
Type Date
Wi-Fi Pmod™ Expansion Board – Quick Start Guide
PDF 281 KB 日本語 		Quick Start Guide
Wi-Fi Pmod - Design Package
ZIP 429 KB 		Schematic
2 items

Design & Development

Software & Tools
Flexible Software Package (FSP)
FSP is an enhanced software package designed to provide easy-to-use, scalable, high-quality software for embedded system designs using Renesas RA Family of Arm Microcontrollers. Note: FSP with e² studio Installer (Platform Installer) will install the e² studio tool, FSP packs, GCC toolchain and Segger J-Link drivers required to use this software. No additional installations are required.
 Software Package Renesas
Quick-Connect IoT Platform
Quick-Connect IoT platform enables fast prototyping by providing compatible hardware and software building blocks.
 Other Hardware Renesas
2 items

Boards & Kits

Renesas RX65N Cloud Kit

RX65N-Cloud-Kit

Evaluation
Order Now

Renesas RX65N Cloud Kit

The Renesas RX65N Cloud Kit is an RX65N microcontroller-based cloud communications evaluation kit which is an ideal evaluation environment for IoT device developers....

Featured Documents:
Quick Start Guide for Pre-Installed Demo with the RX65N Cloud Kit

Product Options

    Processing table
    Description
    Buy / Sample
    Part Number
    RTK00WFMX0B01000BE
    play_circleActive
    memory
    		 802.11b/g/n 2.4G Wi-Fi Pmod Expansion Board
    RTK00WFMX0B00000BE
    play_circleActive
    memory
    		 CE, TELEC
