5.0V 32K x 8 Asynchronous Static RAM
Jump to Page Section:
Overview
Description
The 71256 5V CMOS SRAM is organized as 32K x 8. The circuit also offers a reduced power standby mode for significant system level power and cooling savings. The low-power (L) version also offers a battery backup data retention capability allowing operation off a 2V battery. Fully static asynchronous circuitry is used; no clocks or refreshes are required for operation. Military grade product is available.

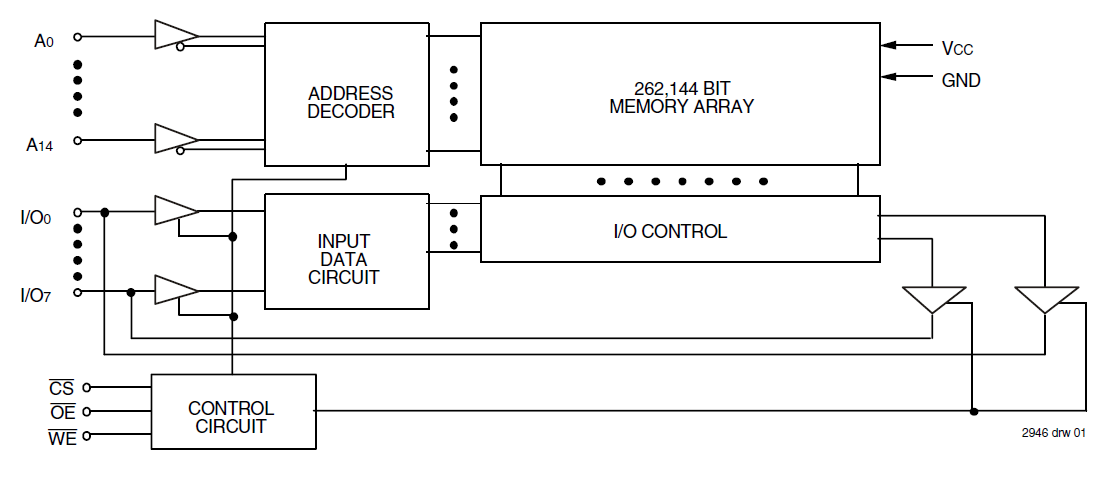

Features
- High-speed address/chip select time – Military: 25/35/45/55/70/85/100ns (max.)
- Commercial/Industrial: 20/25/35ns (max.) low power only
- Low-power operation
- Battery Backup operation – 2V data retention
- Input and output directly TTL-compatible
- Available in standard 28-pin (300 or 600 mil) ceramic DIP, 28-pin (300 mil) SOJ
- Military product compliant to MIL-STD-883, Class B
Documentation
|
|
Date | |
|---|---|---|
| PDF 249 KB | Datasheet | |
| PDF 471 KB 日本語 | Guide | |
| PDF 1.11 MB | End Of Life Notice | |
| PDF 1.27 MB 日本語 | Guide | |
| PDF 1.29 MB | End Of Life Notice | |
| PDF 1.22 MB | End Of Life Notice | |
| PDF 1.15 MB | End Of Life Notice | |
| PDF 938 KB | End Of Life Notice | |
| PDF 909 KB | End Of Life Notice | |
| PDF 748 KB | Product Change Notice | |
| PDF 108 KB | Product Change Notice | |
| PDF 27 KB | Product Change Notice | |
| PDF 24 KB | Product Change Notice | |
| PDF 68 KB | Product Change Notice | |
14 items
|
||
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
Pkg. Type |
Lead Count (#) |
Temp. Grade |
Pb (Lead) Free |
Carrier Type |
Buy / Sample |
|
|---|---|---|---|---|---|---|
| Part Number | ||||||
| CDIP | 28 | M | No | Tube |
