Overview

The CA91L862A (QSpan II) is a PCI-to-Host processor bridge for the Freescale PowerQUICC (MPC860/850/821), the QUICC (MC68360), and the MC68040 processors. The QSpan II operates at speeds up to 50 MHz on the processor bus, with programmable parity and burst/prefetch capability. It provides 32-bit / 33 MHz PCI 2.2 support for embedded processor applications.

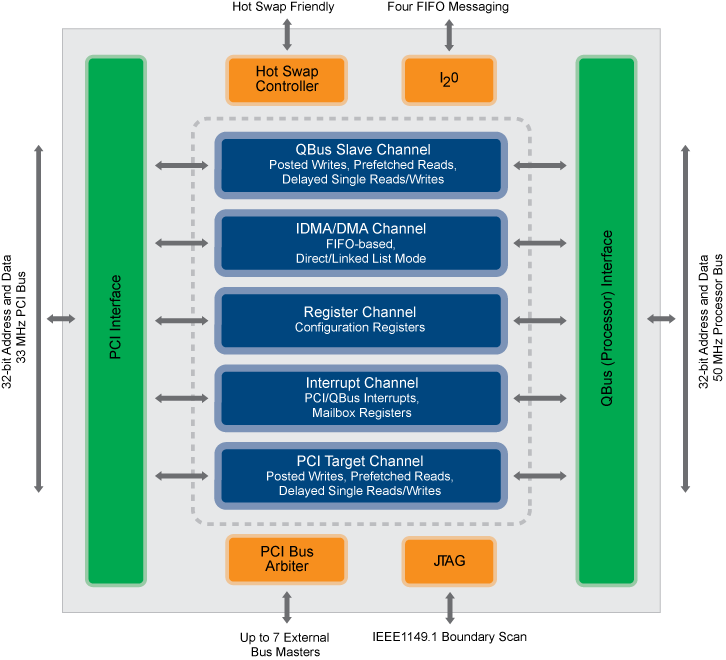

CA91L862A - Block Diagram
CA91L862A - Block Diagram
  • Operates up to 50 MHz on the processor bus
  • Integrated PCI bus arbiter
  • CompactPCI Hot Swap Friendly
  • Serial EEPROM interface for Plug and Play compatibility on PCI
  • Universal PCI signaling (3.3V and 5V compliant)
  • High-performance DMA controller with support for Direct and Linked List modes
  • Mailbox registers for passing parameters between host and embedded environments

Documentation

Title Type Date
QSpan II User Manual
PDF2.24 MB
Manual - Hardware
QSpan II Device Errata
PDF42 KB
Device Errata
