Overview

The 8T49N241-EVK is designed to help the customer evaluate the 8T49N241 Universal Frequency Translator (UFT 3G). When the board is connected to a PC running IDT Timing Commander software™ through USB, the device can be configured and programmed through a graphical interface or through register settings, to generate frequencies with best-in-class performance.

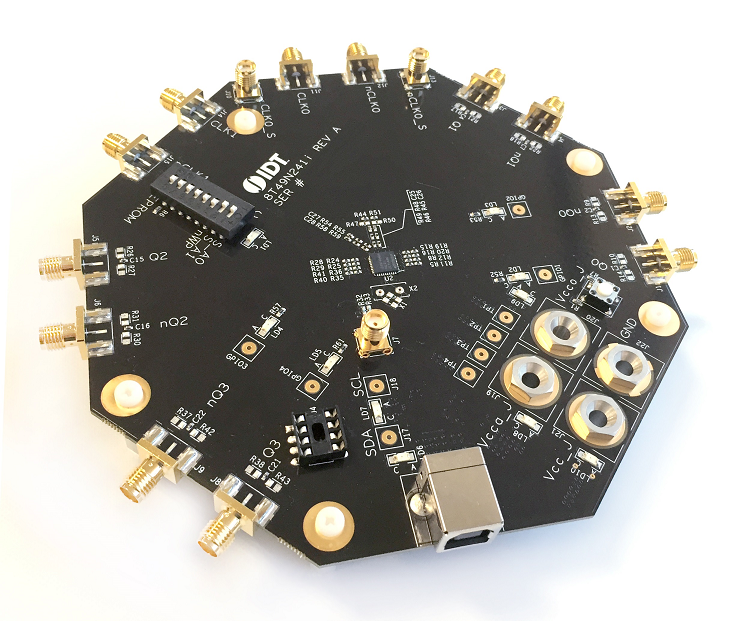

8t49n241-EVK angle

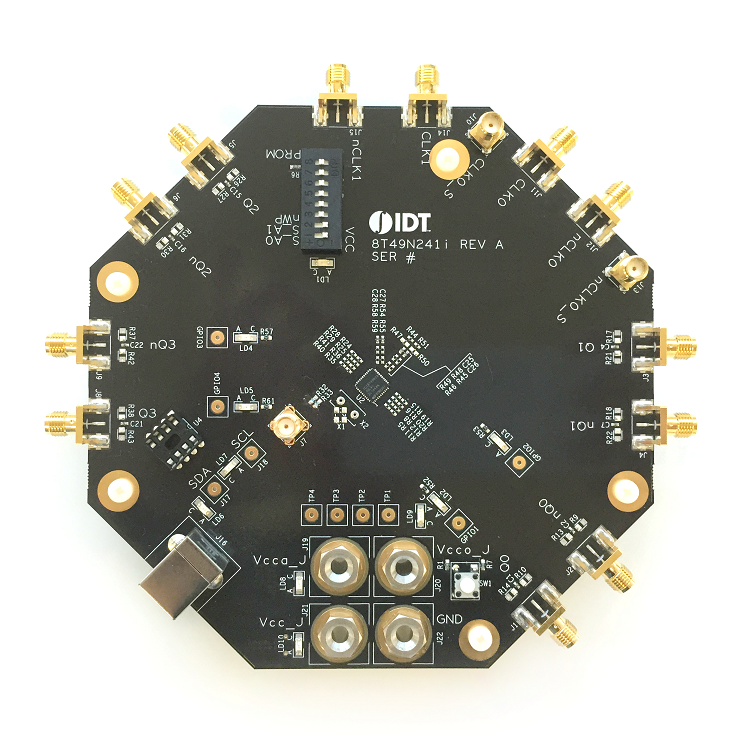

8t49n241-EVK flat
8t49n241-EVK angle
8t49n241-EVK flat
  • Board comes pre-populated with the 8T49N241
  • Four LVPECL Outputs capable of generating any output frequency using IDT Timing Commander software™
  • SMA connectors for each output pair
  • Outputs terminate to 50 ohms on a scope
  • USB Cable

Documentation

Type Title Date
Manual - Hardware
8T49N24x Evaluation Board User Guide
PDF 2.06 MB
Application Note
Timing Commander Installation Guide
PDF 348 KB
