Programming Boards for VersaClock® 7 Programmable Clock
Jump to Page Section:
Overview
Description

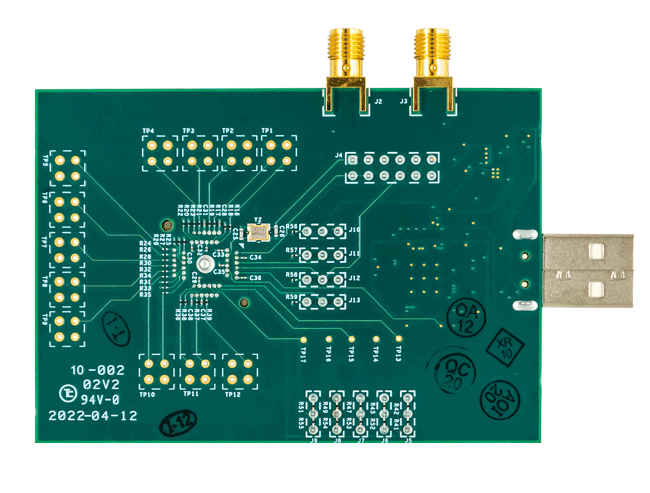

The VersaClock 7 programmer board is made to ease the programming of RC21012, RC31012 blank devices. With the on-board USB interface, RICBox™ GUI can be used to communicate with the blank device in the socket for configuration and programming.
Features
- Programmer board is powered using USB port.
- Programmer board uses RICBox™ GUI – to program the blank parts
- Program VersaClock 7 –RCx1008, RC31008 blank part in the socket
Documentation
| Document title | Document type Type | Date Date | |
|---|---|---|---|
| PDF 1.13 MB | Manual - Hardware | ||
| PDF 496 KB | Guide | ||
| PDF 1.73 MB | Manual - Software | ||
| PDF 161 KB | Schematic | ||
4 items
|
|||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Renesas IC Toolbox (RICBox) The Renesas IC Toolbox (RICBox) software platform enables customers to configure Renesas devices on evaluation kits when attached to the computer running the software.
|
Software Package | Renesas |
1 item
|
||
