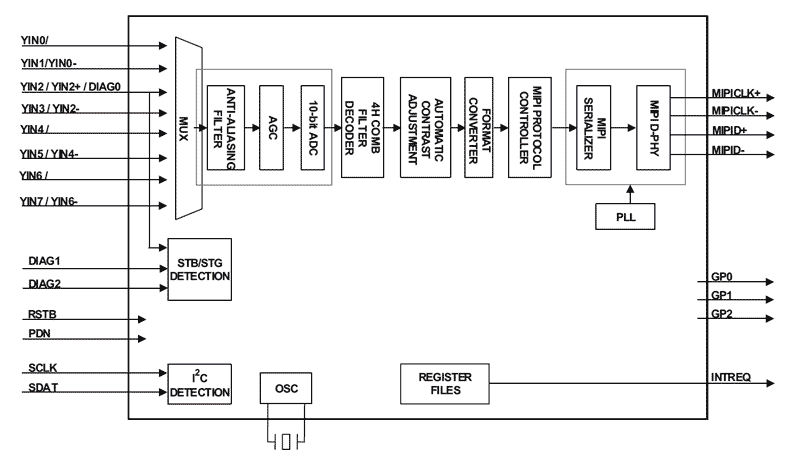

The TW9992 is a low power NTSC/PAL analog video decoder that is designed for automotive applications. It supports single-ended, differential and pseudo differential composite video inputs. Integrated short-to-battery and short-to-ground detection, advanced image enhancement capabilities such as the programmable Automatic Contrast Adjustment (ACA) and the MIPI-CSI2 output interface make the TW9992 an ideal solution for demanding automotive camera applications.

Features

  • Software selectable analog input control allows for combinations of single-ended CVBS, and differential CVBS
  • Built-in analog anti-alias filter
  • Two 10-bit ADCs and analog clamping circuit
  • Fully programmable static gain or automatic gain control for the Y channel
  • Programmable white peak control for the Y channel
  • 4-H adaptive comb filter Y/C separation
  • PAL delay line for color phase error correction
  • Digital subcarrier PLL for accurate color decoding
  • Digital horizontal PLL for synchronization processing and pixel sampling
  • Advanced synchronization processing and sync detection for handling nonstandard and weak signal
  • Automatic color control and color killer
  • Chroma IF compensation
  • VBI slicer supporting industrial standard data services
  • VBI data passthrough, raw ADC data output
  • Programmable output cropping
  • Automatic Contrast Adjustment (ACA)
  • RGB565
  • Programmable hue, brightness, saturation, contrast and sharpness.
  • Image enhancement with peaking and CTI
  • MIPI 1.1 compliant unidirectional output format
  • YUV 422 or RGB565 output format
  • Output voltage 1.8V to 3.3V with 3.3V tolerance
  • Low power consumption: 100mW typical
  • Power save and Power-down mode
  • Short-to-battery detection test
  • Short-to-ground detection test
  • Two-wire MPU serial bus interface
  • Supports real time control interface
  • Single 27MHz crystal for all operations
  • Supports 24.54MHz and 29.5MHz crystal for high resolution square pixel format decoding
  • 3.3V tolerant I/O
  • 1.8V/3.3V power supply
  • 32 Ld QFN (WQFN with wettable flanks)
  • TW9992AT-NA1-GE is AEC-Q100

Product Options

Part Number Part Status Pkg. Type Carrier Type MOQ Buy Sample
Active WFQFN Tray 490
Availability
Active WFQFN Reel 6000
Availability
Active QFN Tray 490
Availability
Active QFN Reel 6000
Availability

Documentation & Downloads

Title Other Languages Type Format File Size Date
Datasheets & Errata
TW9992 Datasheet Datasheet PDF 1.55 MB
TW9992 Data Short Short Form Datasheet PDF 184 KB
Application Notes & White Papers
ADAS Safety Focus: Around View Systems 日本語, 简体中文 White Paper PDF 370 KB
