SoC Optimized for Automotive Application in Stereo Front Cameras
Jump to Page Section:
Back to top
Explore ECAD Models
Overview
Description
R-Car V3H delivers best-in-class TOPS/Watt for cutting-edge computer vision, supports the latest NCAP 2020 requirements, including driver monitoring systems, and provides a migration path toward NCAP 2025.
High Performance Deep Learning
Building on the state-of-the-art recognition technology introduced with the R-Car V3H in February 2018, which includes integrated IP for convolutional neural networks (CNN), the updated R-Car V3H delivers 4 times the performance for CNN processing compared to the earlier version and is achieving up to overall 7.2 TOPS processing including all Computer Visions IPs– while maintaining low power consumption levels.
Cuting-edge FuSa Support
The highly integrated SoC supporting up to ASIL C Metrics safety goals on realtime domain is reducing the need for an external safety microcontroller to manage sensor fusion and final decision actions. The R-Car V3H features a suite of proven IPs that support the perception stack, sensor fusion with radar and/or Lidar, ISP with up to 8 MPixel cameras support, allowing OEMs and Tier 1s to achieve quicker time to market with lower Bill of Materials costs.
R-Car Software Development Kit
The new R-Car SDK (Software Development Kit) is an easy to start & easy to use development framework for the R-Car V Series SOCs from the successful Renesas Autonomy Platform.
Features

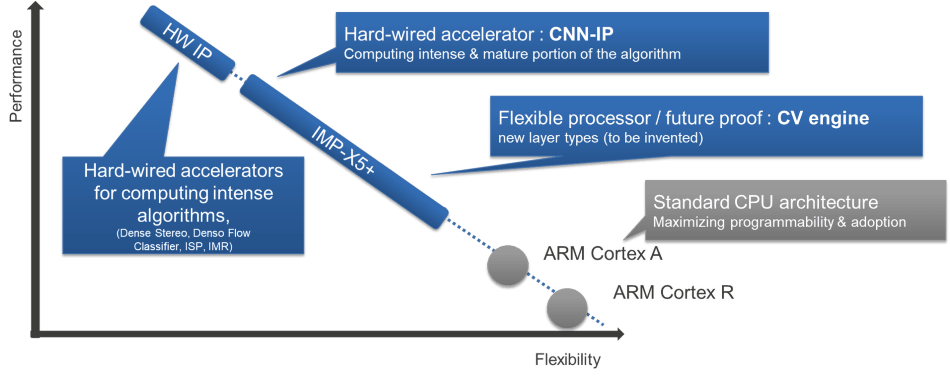

- Low power consumption and highly-efficient image recognition engine delivers up to 7.2 TOPS, including 3.7 TOPS for CNN, with optimized performance-to-power balance
- Quad Arm® Cortex®-A53 for application programming and dual Cortex-R7 lockstep cores to run AUTOSAR, supporting ASIL D development process for systematic capability for the full SOC

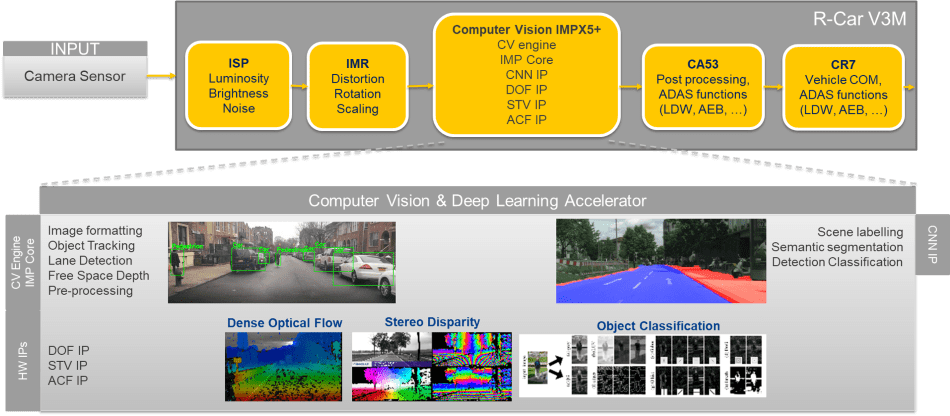

- Features a full set of video processing and image recognition IP for advanced sensing and recognition, including CNN-IP, computer vision engine, image-distortion-correction IPs, stereovision, classifier and dense optical flow
- Integrated ISP enables high level of integration for reduced cost. Supports 8 MPixel sensor and latest RGB-IR standard
- Integrates a full set of automotive peripherals including CAN, Ethernet AVB, and FlexRay
- Supporting metric targets for ASIL B (sensor layer, application processors) and ASIL C (realtime domain) safety goals
- Fully hardware and software compatible with the currently mass-produced R-Car V3H SoC version
- Open solution for front camera supported by Renesas and its ecosystem of partners
Applications
- Front Smart Camera for NCAP
- Surround View with 3D Visualization
- Driver and Occupant Monitoring System
- Lidar System
- Intelligent Survey Camera
- Robotics
- Industrial Applications
Partner Video: eCube Development Platform based on R-Car V3H for Intelligent Cameras based on Deep Learning (eSoftThings)
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF2.68 MB
|
Manual - Hardware
|
||
PDF40.63 MB
|
Manual - Hardware
|
||
PDF1.33 MB
|
Application Note
|
||
PDF2.07 MB
|
Application Note
|
||
PDF1.19 MB
|
Application Note
|
||
R-Car Series, 3rd Generation Functions, Usage, and Restrictions of the Video Capturing Based on CSI2 PDF685 KB
|
Application Note
|
||
PDF299 KB
|
Application Note
|
||
PDF871 KB
|
Application Note
|
||
PDF966 KB
|
Application Note
|
||
PDF2.12 MB
|
Application Note
|
||
PDF387 KB
|
Application Note
|
||
PDF3.16 MB
|
Datasheet
|
||
PDF1.56 MB
|
Datasheet
|
||
PDF890 KB
|
Flyer
|
||
XLSX741 KB
|
Guide
|
||
ZIP31.44 MB
|
Guide
|
||
XLSX93 KB
|
Guide
|
||
PDF1.27 MB
|
Guide
|
||
PDF678 KB
|
Guide
|
||
PDF635 KB
|
Manual - Hardware
|
Design & Development
Software & Tools
Software & Tool Pages
| Title | Type | Company |
|---|---|---|
| e² studio for R-CarIntegrated Software Development Environment. Innovative and Open Development Environment in order to ease SW Development for Computer Vision and Deep Learning Algorithms. New developers can download an evaluation licence for e² studio free of charge. For a commercial licence, please contact a Renesas representative. | IDE and Coding Tool | Renesas |
| 3D Surround View With and Without GPUGPU version (R-Car H3 / M3) • 4x 2MP @ 30fps input • 4k @ 60fps output • Cogent color harmonization • Dynamic 3D bowl, dynamic blend zones • Transparent car (Historical view) • Detection features IMR version (R-Car V3H / V3M) • 4x 2MP 30fps input | Software Package | Cogent Embedded Inc. |
| Atlas Camera Optimization Suite for R-Car by AlgoluxThe Atlas Camera Optimization Suite is the industry’s first set of machine learning tools and workflows that automatically optimizes camera architectures for optimal image quality or for computer vision. Through a secure cloud-enabled interface, Atlas significantly improves computer vision results in days vs. traditional approaches that deliver suboptimal results even after many months of manual ISP tuning. | Software Package | Algolux |
| Autobrains AI SolutionAutobrains provides video perception SW. Revolutionary, self-learning AI leveraging R-Car V Series assets. | Software Package | AutoBrains Technologies Ltd. |
| Automotive SoC Consulting ServiceR-Car Online Consultation is a service where you can receive various consultations regarding R-Car V3H and R-Car V3M. We propose various solutions according to the customer’s situation, such as consultation for customers who are considering R-Car for the first time, learning of image recognition and deep learning using R-Car, and construction of evaluation environment. With this development consulting service for automotive SoC, we will shorten the introduction time of customers and solve problems at an early stage. | Software Package | Hitachi Industry & Control Solutions, Ltd. |
| Driver Monitoring Solution on R-Car - Vision based ADAS algorithms development on R-Car V3 M/HDriver Monitoring Solution on R-Car. In-cabin camera-based driver monitoring Works with RGB, RGB+IR and IR only sensors CNN and non-CNN based models available to optimize processor load. Suite of Vision based ADAS algorithms development on R-Car V3 M/H, comprising of vulnerable road-user detection, vehicle detection, traffic sign recognition, and traffic light recognition along with complete R&D services for developing ADAS solutions. | Software Package | PathPartner Technology Pvt Ltd |
| INTEGRITY® RTOSThe INTEGRITY® RTOS is built around a partitioning architecture to provide embedded systems with total reliability, absolute security, and maximum real-time performance. | Software Package | Green Hills Software LLC |
| ISP Solutions for R-Car V3H & R-Car V3MR-Car V3x ISP solutions, ISP Pipeline • Raw data correction • Lens correction • Noise reduction • Demosaic • Exposure control • White balance • Color correction • Color space conversion: RGB or YUV output PC Tuning Tools • Real-time Tuning • Off-line Tuning | Software Package | Cogent Embedded Inc. |
| Perception SW Technology for Automated DrivingBrodmann17 offers patented, software-only perception technology for automated driving, ushering in the next generation of perception solutions. Brodmann17’s patented technology relies on the company’s own IP, built from the ground up for edge devices without depending on open source. | Software Package | Brodmann17 Ltd. |
| QNX's ASIL Real Time Operating SystemBlackberry provides ASIL compliant RTOS and BSP stack optimised for Renesas R-Car V3H & R-Car V3M. | Software Package | BlackBerry Limited |
| R-Car Hardware using OpenCL and SYCLCodeplay's Solution for Renesas R-Car developers. ComputeSuite for R-Car™ enables developers to accelerate applications on R-Car hardware using OpenCL and SYCL. | Software Package | Codeplay Software |
| RT-RK - Expertise on Renesas' Computer Vision and CNNConsulting and services on computer vision and machine learning to optimize the performance of Tier 1 and OEM algorithm on Renesas products | Software Package | RT-RK Automotive LLC |
| SVNet, Deep Learning Embedded Software by StradvisionSVNet is a deep learning and camera-based embedded perception software for ADAS & Autonomous Vehicles use cases. There are millions of vehicles powered by SVNet from level 2 ADAS to level 4 Autonomous Vehicles in the production pipeline in Germany and China. | Software Package | StradVision, Inc. |
| Safety Support Program Consultancy for R-Car Automotive ApplicationsAVL Software and Functions GmbH provides System FuSa Consultancy for Renesas R-Car SOCs | Software Package | AVL Software and Functions GmbH |
Sample Code
Boards & Kits
Boards & Kits
eCUBE Development Platform by Lacroix
eCUBE allows ADAS developers to save precious time and effort when they prototype and evaluate their innovative use cases on a new platform.
Featured Documents:
R-Car V3H Starter Kit
Software development for advanced driver assistance systems (ADAS) and automated driving (AD) applications has been increasing in scale and complexity in recent years, in order to accelerate the development of autonomous driving and to develop new functionality that attractively differentiate vehicles.
Featured Documents:
EagleCAM Smart Camera Platform by LUPA
Featured Documents:
ADAS & Automated Driving Solution R-Car V3H Reference Board / Condor-I
The combination of the R-Car, the PMIC and the clock generators provides a high-efficiency and high-end ADAS solution that supports image input, image output and high-speed input / output IF.
R-Car Software Development Kit
The new R-Car SDK (Software Development Kit) is an easy to start & easy to use development framework for the R-Car V Series SOCs from the successful Renesas Autonomy Platform.
Re-inventing SW development for Automotive Applications
Automakers are increasingly turning to deep learning as they look for new ways to enable smart camera applications and automated driving systems for next-generation vehicles.
Featured Documents:
eCUBE DVP Development Platform (Camera Board for R-Car V3H Starter Kit) by Lacroix
Camera board for R-Car V3H Starter Kit with the tuned ISP pipeline of IMX390 & AR0220
eCUBE DVP is a camera board for R-Car V3H Starter Kit. It contributes to R-Car V3H evaluation with actual camera input data. eCUBE DVP also supports display output via HDMI interface. The user is able to easily connect a camera (IMX390/AR0220) to eCUBE DVP without any SW setting because the tuned ISP pipeline firmware is already implemented into the eCUBE DVP environment.
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Support
Resources
| R-Car Consortium | Page |
| Phantom AI Collaborates with Renesas on Full Stack ADAS Development | External Link |
| V3H Starter Kit Wiki on eLinux.org | External Link |
play_circle_filledVideos & Training
Autonomous AI Realized with Low Power Consumption on R-Car V3H (Cortica)
Cortica demonstrates at their booth and in-vehicle their unsupervised learning technology using the highly power-efficient CNN IP available in Renesas’ R-Car V3H SoC for premium front cameras, which is also equipped in the R-Car V3M for high-volume NCAP front cameras. Cortica demonstrates excellent detection of objects, whereas the implementation consumes very low power consumption on the scalable Renesas R-Car V3M and R-Car V3H SoCs.
Video List
News & Blog Posts
Specification
- Four 1.0GHz Arm® Cortex®-A53 MPCore™ cores
- Dual lockstep 800MHz Arm® Cortex®-R7 core
- Memory controller for LPDDR4-3200 with 32 bits × 1 channel
- Image recognition engine (IMP-X5-V3H)
- Dedicated hardware accelerator for CNN, dense optical flow, stereovision, and object classification
- Dual image signal processor (ISP)
- Video output (4 lanes × 1 channel LVDS, 1 channel digital)
- Video input (4 lanes × 2 channels MIPI-CSI2, 2 channels digital)
- Gigabit Ethernet and AVB Ethernet
- PCI Express interface
