R-Car S4 Reference Board/Spider
This solution provides a complete development environment with hardware and software for automotive gateway applications to support the new E/E architecture.
Automotive System-on-Chip (SoC) for Car Server/Communication Gateway
Jump to Page Section:
Overview
Description

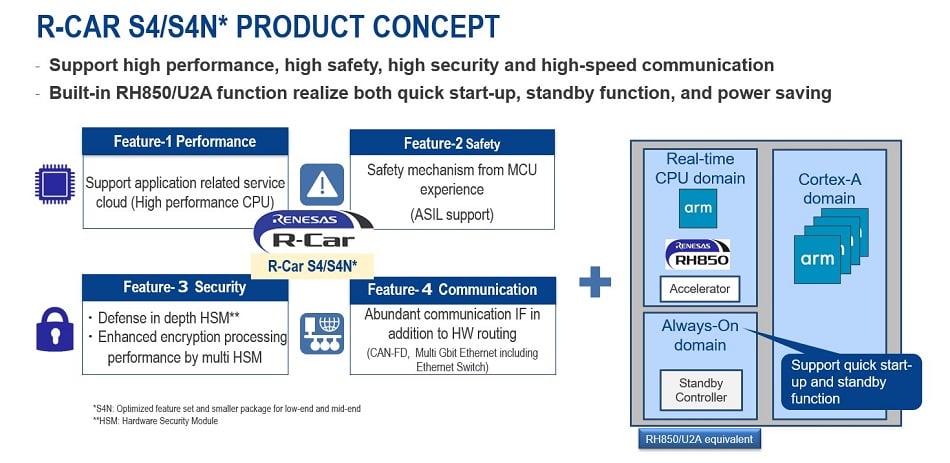

R-Car S4 enables to launch Car Server/CoGW with high performance, high-speed networking, high security and high functional safety levels that are required as E/E architectures evolve into domains and zones. The R-Car S4 solution allows designers to re-use up to 88 percent of software code developed for 3rd generation R-Car SoCs and RH850 MCU applications. The software package supports the real-time cores with various drivers and basic software such as Linux BSP and hypervisors.

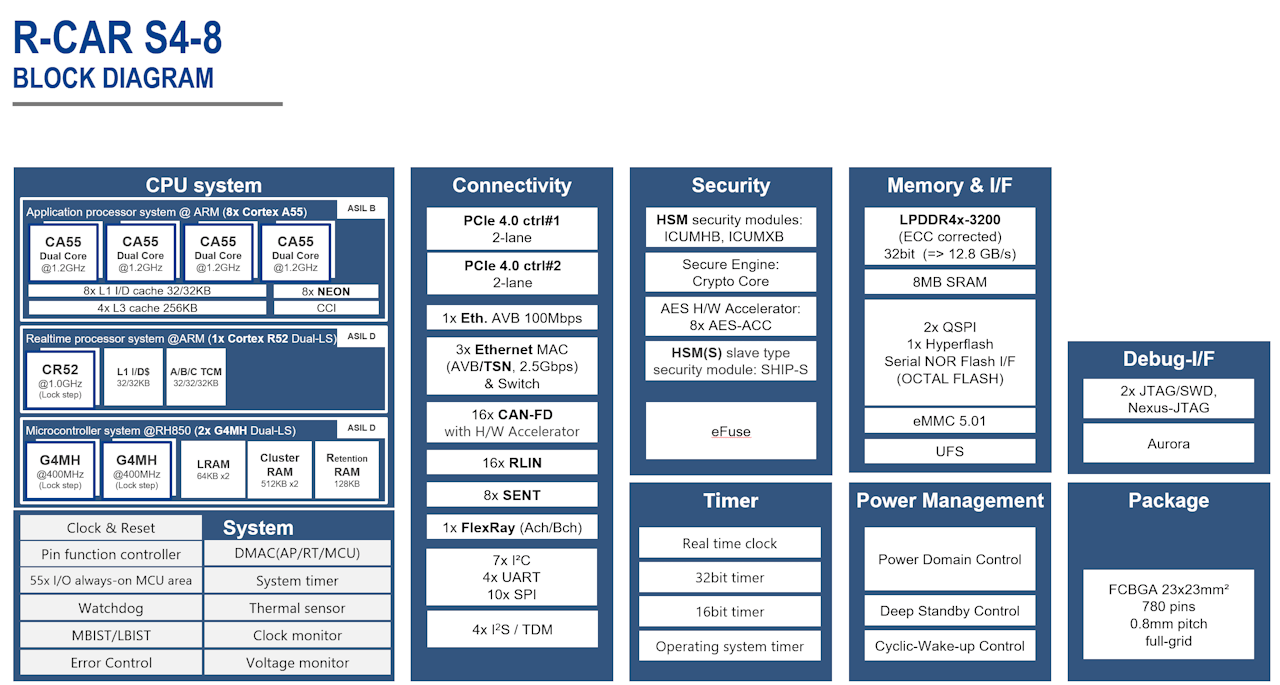

Features
- Eight 1.2 GHz Cortex A55 cores, one 1.0 GHz Cortex® R52 dual core (lock-step) and two 400 MHz RH850 G4MH dual cores (lock-step) deliver up to 27 kDMIPS application performance plus greater than 5.3 kDMIPS real-time performance
- Abundant automotive interfaces including 16x CAN FD, 16x LIN, 8x SENT, 1x FlexRay, 2x 2-lane PCIe 4.0 allow a wide range of connectivity inside the vehicle
- Integrated 3-port Ethernet TSN switch offers bandwidth of 3 x 2.5 Gbps to deliver fast and low-latency communication in the vehicle backbone and to the outside world
- Incorporated 8MB SRAM to execute code on the RH850 G4MH core with low latency
- Multiple hardware security modules (HSMs) and firewall IP provide enhanced security protection against cyber attacks
- R-Car S4 is compliant to ISO-26262 and supports functional safety according to ASIL B and ASIL D
Comparison
Applications
Applications
- Vehicle computers
- Communication gateways
- Domain servers
- Application servers
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Hardware | PDF 113.12 MB | |
| Guide | PDF 1.82 MB 日本語 | |
| Application Note | PDF 3.78 MB | |
| Application Note | PDF 1.30 MB | |
| Application Note | PDF 1.04 MB 日本語 | |
| Application Note | PDF 793 KB 日本語 | |
| Application Note | PDF 614 KB 日本語 | |
| Application Note | PDF 689 KB | |
| Guide | PDF 671 KB 日本語 | |
| Guide | PDF 642 KB 日本語 | |
| Guide | ZIP 4.75 MB | |
| Guide | XLSM 2.83 MB | |
| Guide | XLSX 112 KB | |
| Guide | PDF 636 KB 日本語 | |
| Guide | PDF 619 KB 日本語 | |
| Guide | XLSM 2.83 MB | |
| Application Note | ZIP 485 KB 日本語 | |
| Application Note | PDF 763 KB | |
| Application Note | PDF 767 KB 日本語 | |
| Application Note | PDF 715 KB 日本語 | |
| Flyer | PDF 746 KB | |
| Application Note | PDF 871 KB | |
| Manual - Hardware | PDF 14.23 MB | |
| Guide | PDF 1.42 MB 日本語 | |
| Application Note | PDF 1.00 MB 日本語 | |
| Guide | PDF 683 KB 日本語 | |
| Flyer | PDF 2.19 MB | |
| White Paper | PDF 888 KB | |
28 items
|
||
Design & Development
Software & Tools
Important Note
Please refer to R-Car S4 SDK download guide material (PDF) to download the right packages that fit your needs.
Please refer to R-Car S4 SDK download guide material (PDF) to download the right packages that fit your needs.
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Multi-Core Debug and Trace Tool Multiple heterogeneous processor cores (Arm core/ RH850 core) integrated in R-Car S4 can be debugged and traced simultaneously. This allows for shorter time to identify the cause and analyze problems in systems where multiple cores work together to achieve a function.
|
IDE and Coding Tool | Renesas |
| Virtual Turnkey Platform The virtual turnkey platform is a software development kit (R-Car SDK) with pretested software libraries and sample code on the virtual development environment R-Car Virtual Platform (VPF).
|
Solution Toolkit | Renesas |
| R-Car Virtual Platform The R-Car Virtual Platform (VPF) accelerates in-vehicle software development for next-generation vehicles.
|
Simulator | Renesas |
| e² studio for R-Car Integrated Software Development Environment. Innovative and Open Development Environment in order to ease SW Development for Computer Vision and Deep Learning Algorithms.
|
IDE and Coding Tool | Renesas |
| AosEdge Platform - Distribution Management Platform for Connected Car AosEdge is a V2C (Vehicle to Cloud) platform that can deliver and run software that provides a new UX (user experience) for connected cars.
|
Software Package | EPAM Systems, Inc. |
| Renesas MCAL Renesas' MCAL (Microcontroller Abstraction Layer) software drivers can be obtained as a stand-alone software package.
|
Software Package | Renesas |
| Debug and Trace Tools for Multi-Devices These tools facilitate the analysis and identification of the causes of problems that occur in the software that operates cooperatively on the CPUs of multiple devices.
|
IDE and Coding Tool | Renesas |
| Co-Simulation Environment for Multi-Devices This is a multi-device operation simulation environment that integrates a group of simulators such as the R-Car Virtual Platform that are provided for the individual devices to enable coordinated operation.
|
Simulator | MathWorks, Australian Semiconductor Technology Company, Synopsys |
| High-Speed Simulator for Software Development A high-speed simulation environment based on QEMU.
|
Simulator | Renesas |
| Distributed Processing Software for Multi-Devices This software maximizes the performance of hardware by distributing the functions of the application to multiple SoCs or CPUs and HWIPs inside the microcontroller.
|
Solution Toolkit | Renesas |
| R-Car S4 Whitebox SDK - Integrated Development Platform for Connected Services and Gateway Application The R-Car S4 Whitebox SDK is an integrated development platform that accelerates the development of connected services applications. All software is provided as an all-in-one package under a Free of Charge (FoC) license.
|
Software Package | Renesas |
11 items
|
||
Software Downloads
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Software & Tools - Software | PDF 163 KB | |
| Software & Tools - Software | PDF 315 KB | |
| Software & Tools - Software | ZIP 24.22 MB | |
| Software & Tools - Software | ZIP 261 KB | |
| Software & Tools - Software | ZIP 259 KB | |
| Software & Tools - Software | ZIP 532 KB | |
| Software & Tools - Software | ZIP 213 KB | |
| Software & Tools - Software | ZIP 129 KB | |
| Software & Tools - Software | ZIP 22.86 MB | |
| Software & Tools - Software | ZIP 7.32 MB | |
| Software & Tools - Other | ZIP 2.99 MB | |
| Software & Tools - Software | ZIP 227 KB | |
| Software & Tools - Software | ZIP 240.96 MB | |
| Software & Tools - Software | ZIP 249.00 MB | |
| Software & Tools - Software | ZIP 286.44 MB | |
| Software & Tools - Software | ZIP 127.02 MB | |
| Software & Tools - Software | GZ 412.48 MB | |
| Software & Tools - Software | ZIP 1,353.43 MB | |
| Software & Tools - Software | ZIP 2,562.29 MB | |
| Software & Tools - Software | GZ 791.74 MB | |
| Software & Tools - Software | ZIP 182.89 MB | |
21 items
|
||
Sample Code
Boards & Kits
Boards & Kits
R-Car S4 Starter Kit
The R-Car S4 Starter Kit is a low-cost, readily available development board for building software using the Renesas R-Car S4 system on chip (SoC). The SoC delivers high...
Featured Documents:

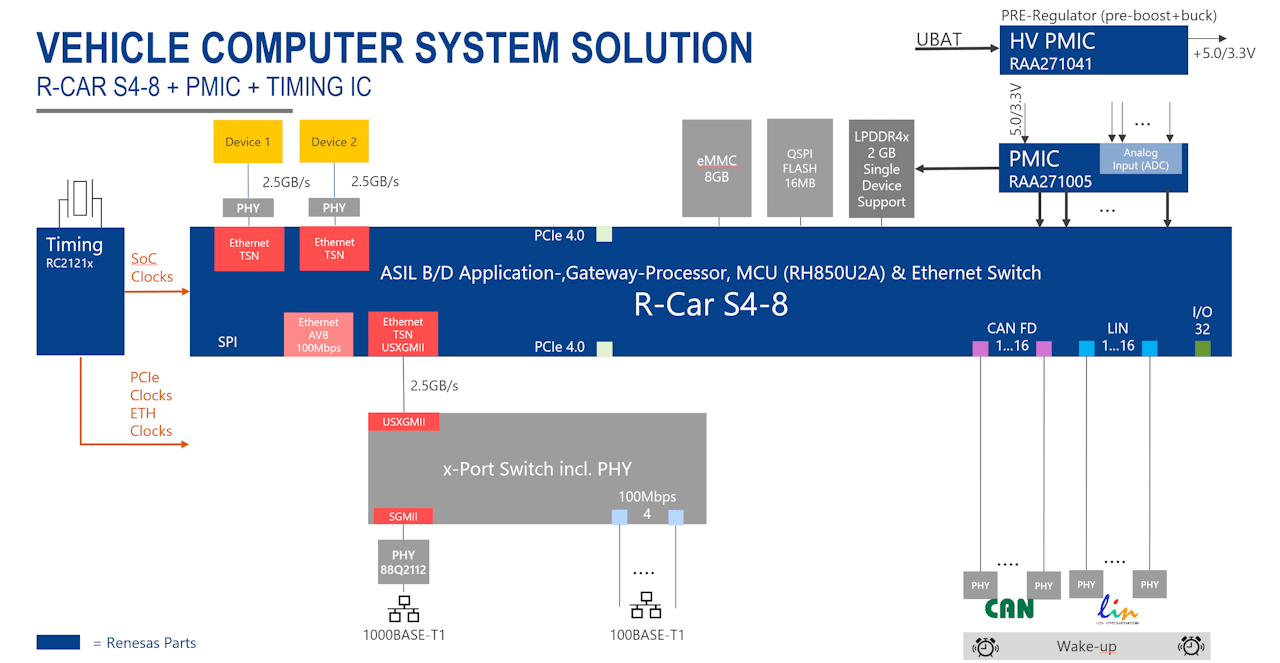

Vehicle Computer Generation 4
The VC4 is based on a complete Renesas chipset. The centerpiece is the R-Car S4 with 8x Cortex®A55 cores, 1x Cortex® R52 core 2x RH850 G4MH delivering up to 27K DMIPS...
Featured Documents:
Support
Resources
| R-Car Market Place | External Link |
| R-Car Consortium | Page |
| Automotive Power Management | Product Sub-Category |
| Vehicle Computer Generation 4 | External Link |
| R-Car Solution Matching System | External Link |
| R-Car Solution Request Site | External Link |
Videos & Training
How to Use e² studio for R-Car - Create a New Project
This video describes how to create a new project in e² studio.
Video List
