Digitally Controlled Potentiometer (XDCP™)
Jump to Page Section:
Overview
Description

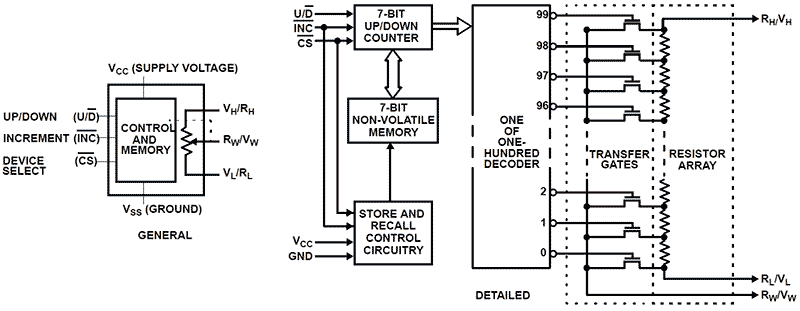

The X9C102, X9C103, X9C104, X9C503 are Intersil's digitally controlled (XDCP) potentiometers. The device consists of a resistor array, wiper switches, a control section, and non-volatile memory. The wiper position is controlled by a three-wire interface. The potentiometer is implemented by a resistor array composed of 99 resistive elements and a wiper switching network. Between each element and at either end are tap points accessible to the wiper terminal. The position of the wiper element is controlled by the CS, U/D, and INC inputs. The position of the wiper can be stored in non-volatile memory and then be recalled upon a subsequent power-up operation. The device can be used as a three-terminal potentiometer or as a two-terminal variable resistor in a wide variety of applications ranging from control to signal processing to parameter adjustment.
Features
- Solid-State Potentiometer
- Three-Wire Serial Interface
- 100 Wiper Tap Points
- Wiper Position Stored in Non-volatile Memory and Recalled on Power-up
- 99 Resistive Elements
- Temperature Compensated
- End-to-End Resistance, ±20%
- Terminal Voltages, ±5V
- Low Power CMOS
- VCC = 5V
- Active Current, 3mA max.
- Standby Current, 750µA max.
- High Reliability
- Endurance, 100,000 Data Changes per Bit
- Register Data Retention, 100 years
- X9C102 = 1kΩ
- X9C103 = 10kΩ
- X9C503 = 50kΩ
- X9C104 = 100kΩ
- Packages
- 8 Ld SOIC
- 8 Ld PDIP
- Pb-Free Available (RoHS Compliant)
Comparison
Applications
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 617 KB | |
| End Of Life Notice | PDF 603 KB | |
| Manual - Development Tools | PDF 1.40 MB | |
| Price Increase Notice | PDF 257 KB | |
| Price Increase Notice | PDF 227 KB | |
| End Of Life Notice | PDF 219 KB | |
| Product Advisory | PDF 363 KB | |
| Product Change Notice | PDF 237 KB | |
| Product Change Notice | PDF 204 KB | |
| Product Change Notice | PDF 152 KB | |
| Application Note | PDF 281 KB | |
| Application Note | PDF 750 KB | |
| Application Note | PDF 534 KB | |
| Application Note | PDF 467 KB | |
| Application Note | PDF 324 KB | |
| Application Note | PDF 239 KB | |
| Application Note | PDF 384 KB | |
| Application Note | PDF 513 KB | |
| Application Note | PDF 251 KB | |
| Application Note | PDF 259 KB | |
| Other | PDF 315 KB | |
| Application Note | PDF 503 KB | |
| Application Note | PDF 287 KB | |
23 items
|
||
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
Pkg. Type |
Carrier Type |
MOQ |
Buy / Sample |
|
|---|---|---|---|---|
| Part Number | ||||
| SOICN | Tube | 800 | Get Samples, | |
| SOICN | Reel | 2500 | ||
| SOICN | Tube | 800 | Get Samples, | |
| SOICN | Reel | 2500 | Get Samples, |
