True Digital PWM Controller (Single-Phase, Single-Rail)
Jump to Page Section:
Overview
Description

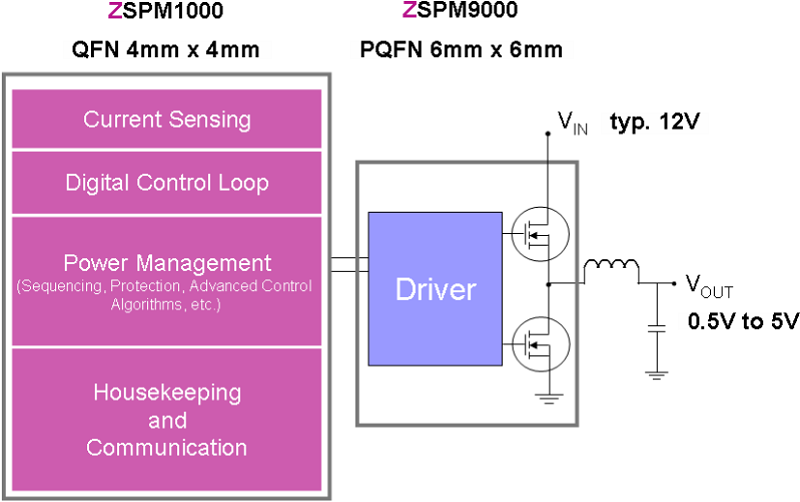

The ZSPM1000 is a configurable true-digital single-phase PWM controller for high-current, non-isolated DC/DC supplies. It operates as a synchronous step-down converter in a single-rail and single-phase configuration. The ZSPM1000 integrates a digital control loop, optimized for maximum flexibility and stability, as well as load step and steady-state performance. In addition, a rich set of protection and monitoring functions is provided. On-chip, non-volatile memory (NVM) and an I2C interface facilitate configuration. IDT's PC-based Pink Power Designer™ provides a user-friendly and easy-to-use interface to the device for communication and configuration. It can guide the user through the design of the digital compensator and offers intuitive configuration methods for additional features, such as protection and sequencing.
Features
- Programmable digital control loop
- Advanced, digital control techniques: Tru-sample Technology™, State-Law Control™ (SLC), and Sub-cycle Response™ (SCR)
- Improved transient response and noise immunity
- Discontinuous conduction mode (DCM)
- Protection features: over-current protection, over-voltage protection (VIN, VOUT), under-voltage protection (VIN, VOUT), overloaded startup, and restart and delay
- Fuse-based NVM for improved reliability
- Operation from a single 5V or 3.3V supply
- Optional PMBus™ address selection without external resistors
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 194 KB | Datasheet - Short-form | ||
| PDF 262 KB | Application Note | ||
| PDF 397 KB | Application Note | ||
| PDF 725 KB | Datasheet | ||
| 7Z 1.21 MB | Guide | ||
| PDF 173 KB | Guide | ||
| PDF 1.44 MB | Guide | ||
| PDF 1.33 MB | Manual - Development Tools | ||
| PDF 1.16 MB | Manual - Development Tools | ||
| PDF 284 KB | Presentation | ||
| PDF 3.24 MB | Presentation | ||
| PDF 1.85 MB | Presentation | ||
| PDF 590 KB | Presentation | ||
| PDF 100 KB | Schematic | ||
14 items
|
|||
Design & Development
Software & Tools
Boards & Kits
Boards & Kits
ZSPM8000 Evaluation Kit for the ZSPM1000 PWM Controller and ZSPM9000 DrMOS
The ZSPM8000-KIT supports evaluation of DC/DC point-of-load (POL) applications. The kit incorporates the ZSPM1000 digital PWM controller IC and the ZSPM9000 DrMOS power...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| VFQFPN | 24 | -40 to 125°C | Reel | ||
| VFQFPN | 24 | -40 to 85°C | Reel |
