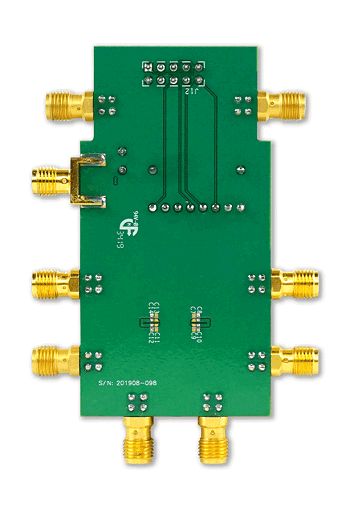

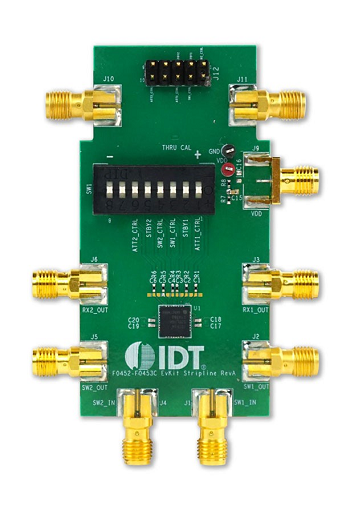

The F0452CEVB is a fully populated test board enabling easy evaluation of the F0452C RF Switch / LNA performance.


  • RF connectors for each RF input and ouput “Thru” calibration line for easy calibration prior to making RF measurements.
  • The eval kit has a number of control features available:
    • Refer to the EVkit Application Circuit, EV kit picture and applications information in the datasheet to properly connect to and control the evaluation board features.
    • All bias and logic controls are applied to the appropriate pins of the pin header located on the evaluation board.


Title language Type Format File Size Date
star F0452C Datasheet
PDF 1.58 MB


Title language Type Format File Size Date
RF Digital Control Software Installer
Software & Tools - Software
ZIP 169.81 MB
