RL78/G13A

Renesas MCU Guide

Download the mobile app

View

Overview

The General-purpose microcomputer with lower operating current than RL78/G13.

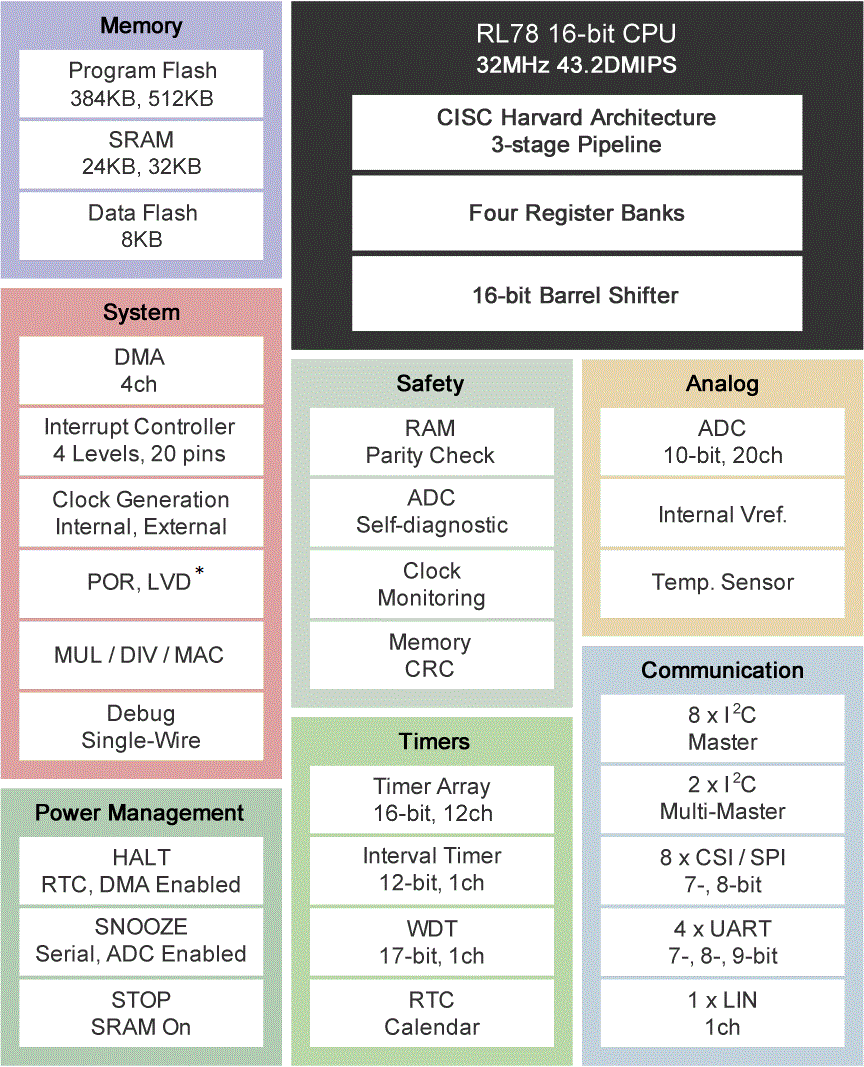

CPU: RL78 core, Max. 32MHz
Voltage: 1.6V to 5.5V
Package: 48 to 100-pin LFQFP, 44-pin LQFP
Memory: SRAM Max. 32KB, Program Flash Max. 512KB
Timer: 16-bit Timer (ch) x 8, Watchdog Timer (ch) x 1, 12-bit Interval Timer x 1 ch
PWM: PWM Output x 7
On-chip Oscillator Freq. (MHz): High-Speed: 32, 24, 16, 12, 8, 4, 1MHz Low-speed: 15kHz
Others: RTC, Power-On Reset, Low Voltage Detection

	Air Conditioner (High-End)
	Air Conditioner (Low-End)
	Refrigerator (High-End)
	Washing Machine (High-End)

Applications

Office Automation
Home Appliance
Healthcare
Security

Documentation

Title	Type	Date
RL78/G13A Data Sheet Rev.1.10 PDF1.25 MB	Datasheet	Sep 18, 2020
RL78/G13A User's Manual Hardware Rev.1.10 PDF6.42 MB日本語	Manual - Development Tools	Sep 18, 2020
FS2012 Sample application - Sample Code PDF3.21 MB日本語 Related Files: Sample Code	Application Note	Mar 3, 2023
HS300x Sample application - Sample Code PDF3.64 MB日本語 Related Files: Sample Code	Application Note	Mar 3, 2023
OB1203 Sample application - Sample Code PDF4.31 MB日本語 Related Files: Sample Code	Application Note	Mar 3, 2023
RL78 Family FS1015 Sensor Control Module Software Integration System PDF182 KB Related Files: Sample Code	Application Note	Mar 3, 2023
RL78 Family FS2012 Sensor Control Module Software Integration System PDF188 KB Related Files: Sample Code	Application Note	Mar 3, 2023
RL78 Family FS3000 Sensor Control Module Software Integration System PDF182 KB Related Files: Sample Code	Application Note	Mar 3, 2023
RL78 Family HS300x Sensor Control Module Software Integration System PDF189 KB Related Files: Sample Code	Application Note	Mar 3, 2023
RL78 Family HS400X Sensor Control Module Software Integration System PDF189 KB Related Files: Sample Code	Application Note	Mar 3, 2023
RL78 Family OB1203 Sensor Control Module Software Integration System PDF188 KB Related Files: Sample Code	Application Note	Mar 3, 2023
RL78 Family Sensor Control Modules Software Integration System PDF2.03 MB	Application Note	Mar 3, 2023
RL78 Family Sensor I2C Communication Middleware Control Module Software Integration System PDF190 KB Related Files: Sample Code	Application Note	Mar 3, 2023
RL78 Family ZMOD4410, ZMOD4450 and ZMOD4510 Sensor Control Module Software Integration System PDF189 KB Related Files: Sample Code	Application Note	Mar 3, 2023
ZMOD4xxx Sample application - Sample Code PDF4.72 MB日本語 Related Files: Sample Code	Application Note	Mar 3, 2023
RL78 Flash Programmer (RL78 Protocol B) Rev.1.00 PDF797 KB日本語 Related Files: Sample Code	Application Note	Feb 16, 2023
RL78 Flash Programmer (RL78 Protocol C) Rev.1.00 PDF823 KB日本語 Related Files: Sample Code	Application Note	Feb 16, 2023
RL78 Flash Programmer (RL78 Protocol A) Rev.1.00 PDF820 KB日本語 Related Files: Sample Code	Application Note	Feb 16, 2023
RL78 Family Open Source FAT File System M3S-TFAT-Tiny: Introduction Guide Rev.2.01 PDF294 KB日本語 Related Files: Sample Code	Application Note	Nov 9, 2022
RL78 Family SPI mode MultiMediaCard Driver: Introduction Guide Rev.2.01 PDF556 KB日本語 Related Files: Sample Code	Application Note	Nov 9, 2022
RL78 Family FFT Library: Deployment Guide Rev.1.07 PDF305 KB日本語 Related Files: Sample Code	Application Note	Sep 26, 2022
RL78 Family RL78 Digital Signal Controller Library - Filter Rev.2.03 PDF961 KB日本語 Related Files: Sample Code	Application Note	Sep 26, 2022
RL78 Family M3S-S2-Tiny: Introduction Guide Rev.2.01 PDF237 KB日本語 Related Files: Sample Code	Application Note	Sep 16, 2022
RL78/G14, RL78/G1C, RL78/L12, RL78/L13, RL78/L1C, RL78/G23 Group Clock Synchronous Single Master Control Software Using CSI Mode of Serial Array Unit Rev.1.07 PDF665 KB日本語 Related Files: Sample Code	Application Note	Aug 4, 2022
RX Family, RL78 Family, 78K0R/Kx3-L Macronix International MX25/66L Family Serial NOR Flash Memory Control Software Rev.1.04 PDF890 KB日本語 Related Files: Sample Code	Application Note	Aug 4, 2022
How to use CUnit in e² studio (GCC for RX) PDF998 KB日本語	Application Note	Jul 12, 2022
RL78 Family SHA Hash Function Library: Introduction Guide Rev.2.01 PDF271 KB日本語 Related Files: Sample Code	Application Note	Jun 30, 2022
RL78 Family RL78 Hardware CRC Functions PDF1.49 MB Related Files: Sample Code	Application Note	Jun 24, 2022
RL78 Family RL78 Internal Temperature Sensor Calibration (Using IAR Toolchain) PDF542 KB Related Files: Sample Code	Application Note	Jun 24, 2022
RL78 Family Real-Time-Clock Watch Error Correction function Rev.1.10 PDF711 KB Related Files: Sample Code	Application Note	Jun 24, 2022
RL78/G10 Wi-Fi module (ESP-WROOM-02) control sample software for TCP/IP Slave Transmission/Reception Rev.1.10 PDF745 KB日本語 Related Files: Sample Code	Application Note	Jun 24, 2022
RL78/G12 Remotely Controllable Button Pusher Rev.1.10 PDF432 KB日本語 Related Files: Sample Code	Application Note	Jun 24, 2022
RL78 Software Porting Guide RL78/G13 sample code porting (CC-RL) (CS+, e2 studio) Rev.1.00 PDF5.64 MB日本語	Application Note	Apr 4, 2022
Smart Configurator, Code Generator Project Porting Procedures for CS+ and e² studio PDF1.42 MB日本語	Application Note	Mar 7, 2022
RL78/G13 Timer Array Unit (Pulse Interval Measurement (Both edges)) CC-RL Rev.1.00 PDF625 KB日本語 Related Files: RL78/G13 Timer Array Unit (Pulse Interval Measurement (Both edges) CC-RL Rev.2.00 - Sample Code	Application Note	Aug 16, 2021
RL78/G13 Timer Array Unit (Pulse Interval Measurement) CC-RL Rev.2.00 PDF563 KB日本語 Related Files: RL78/G13 Timer Array Unit (Pulse Interval Measurement) CC-RL Rev.3.00 - Sample Code	Application Note	Aug 16, 2021
Integrated Development Environment e² studio: How to use EGit in e² studio Rev.1.01 PDF1.79 MB日本語	Application Note	Jul 26, 2021
RL78/G13 Safety Function (A/D Test) CC-RL Rev.1.01 PDF571 KB日本語 Related Files: Sample Code	Application Note	Jun 2, 2021
RL78/G14 Modbus ASCII/RTU (R01AN5380EJ0102) Rev.1.02 PDF1.76 MB日本語 Related Files: RL78/G14 Modbus ASCII/RTU Rev.1.02 - Sample Code	Application Note	Apr 5, 2021
LIN Controller Usage: Applications and Frequently Asked Questions Rev.2.01 PDF1.03 MB	Application Note	Jan 5, 2021
RL78/G14, H8/36109 Migration Guide from H8 to RL78: 14-Bit PWM Rev.1.00 PDF304 KB日本語	Application Note	Dec 21, 2020
RL78/G14, H8/36109 Migration Guide from H8 to RL78: A/D Converter Rev.1.00 PDF419 KB日本語	Application Note	Dec 21, 2020
RL78/G14, H8/36109 Migration Guide from H8 to RL78: Band-Gap Regulator, Power-On Reset & Low-Voltage Detection Circuits Rev.1.00 PDF264 KB日本語	Application Note	Dec 21, 2020
RL78/G14, H8/36109 Migration Guide from H8 to RL78: CPU architecture Rev.1.00 PDF290 KB日本語	Application Note	Dec 21, 2020
RL78/G14, H8/36109 Migration Guide from H8 to RL78: Clock Pulse Generators Rev.1.00 PDF383 KB日本語	Application Note	Dec 21, 2020
RL78/G14, H8/36109 Migration Guide from H8 to RL78: Exception Handling Rev.1.00 PDF378 KB日本語	Application Note	Dec 21, 2020
RL78/G14, H8/36109 Migration Guide from H8 to RL78: I/O Ports Rev.1.00 PDF216 KB日本語	Application Note	Dec 21, 2020
RL78/G14, H8/36109 Migration Guide from H8 to RL78: IIC2 Rev.1.00 PDF261 KB日本語	Application Note	Dec 21, 2020
RL78/G14, H8/36109 Migration Guide from H8 to RL78: Power supply circuit Rev.1.00 PDF224 KB日本語	Application Note	Dec 21, 2020
RL78/G14, H8/36109 Migration Guide from H8 to RL78: Power-Down Modes Rev.1.00 PDF501 KB日本語	Application Note	Dec 21, 2020
RL78/G14, H8/36109 Migration Guide from H8 to RL78: ROM (Flash memory) Rev.1.00 PDF283 KB日本語	Application Note	Dec 21, 2020
RL78/G14, H8/36109 Migration Guide from H8 to RL78: Realtime Clock (RTC) Rev.1.00 PDF380 KB日本語	Application Note	Dec 21, 2020
RL78/G14, H8/36109 Migration Guide from H8 to RL78: SCI3 Rev.1.00 PDF439 KB日本語	Application Note	Dec 21, 2020
RL78/G14, H8/36109 Migration Guide from H8 to RL78: Timer V Rev.1.00 PDF481 KB日本語	Application Note	Dec 21, 2020
RL78/G14, H8/36109 Migration Guide from H8 to RL78: Watchdog Timer Rev.1.00 PDF248 KB日本語	Application Note	Dec 21, 2020
RL78/G14, H8/36109 Migration Guide from H8 to RL78: Timer B1 Rev.1.00 PDF323 KB日本語	Application Note	Dec 18, 2020
RL78/G14, H8/36109 Migration Guide from H8 to RL78: Timer RC Rev.1.00 PDF413 KB日本語	Application Note	Dec 18, 2020
RL78/G14, H8/36109 Migration Guide from H8 to RL78: Timer RD Rev.1.00 PDF551 KB日本語	Application Note	Dec 7, 2020
RL78/G13 Serial Interface IICA (for Slave Transmission/Reception) CC-RL Rev.2.01 PDF588 KB日本語 Related Files: Sample Code	Application Note	Dec 4, 2020
RL78/G13 Serial Interface IICA (for Master Transmission/Reception) CC-RL Rev.2.01 PDF598 KB日本語 Related Files: Sample Code	Application Note	Nov 25, 2020
7-Segment LED Lighting Control (Arduino API) Rev.1.00 PDF951 KB日本語 Related Files: RL78/G14 7-Segment LED Lighting Control (Arduino API) Rev.1.00	Application Note	Jul 10, 2020
Arduino API Introduction Guide Rev.1.00 PDF1.65 MB日本語	Application Note	Jun 30, 2020
RL78/G13, 78K0/Kx2 Migration Guide from 78K0 to RL78:Serial Interface IIC0 to Serial Interface IICA Rev.1.00 PDF330 KB日本語	Application Note	Nov 11, 2019
IEC60730/60335 Self Test Library of CARL78 for RL78 MCU extended Application Notes (R01AN4823EJ0110) Rev.1.10 PDF2.36 MB日本語 Related Files: IEC60730/60335 Self Test Library of CARL78 for RL78 MCU extended Application Notes - Sample Code (r01an4823ej0110)	Application Note	Oct 9, 2019
IEC60730/60335 Self Test Library of CCRL78 for RL78 MCU extended Application Notes (R01AN4819EJ0110) Rev.1.10 PDF2.09 MB日本語 Related Files: IEC60730/60335 Self Test Library of CCRL78 for RL78 MCU extended Application Notes - Sample Code (r01an4819ej0110)	Application Note	Oct 9, 2019
RL78/G13, 78K0/Kx2 Migration Guide from 78K0 to RL78: Standby Function Rev.1.00 PDF262 KB日本語	Application Note	Oct 4, 2019
RL78/G13, 78K0/Kx2 Migration Guide from 78K0 to RL78: Interrupt Functions Rev.1.00 PDF464 KB日本語	Application Note	Sep 12, 2019
RL78/G13, 78K0/Kx2 Migration Guide from 78K0 to RL78: A/D Converter Rev.1.00 PDF446 KB日本語	Application Note	Sep 9, 2019
RL78/G13, 78K0/Kx2 Migration Guide from 78K0 to RL78: Serial interface CSIA0 to Serial Array Unit Rev.1.00 PDF338 KB日本語	Application Note	Jul 31, 2019
RL78/G13, 78K0/Kx2 Migration Guide from 78K0 to RL78: Serial interface UART0 to Serial Array Unit Rev.1.00 PDF434 KB日本語	Application Note	Jul 24, 2019
RL78/G13, 78K0/Kx2 Migration Guide from 78K0 to RL78: Serial interface UART6 to Serial Array Unit Rev.1.00 PDF441 KB日本語	Application Note	Jul 24, 2019
RL78/G13, 78K0/Kx2 Migration Guide from 78K0 to RL78: Serial interfaces CSI10 and CSI11 to Serial Array Unit Rev.1.00 PDF278 KB日本語	Application Note	Jul 5, 2019
RL78/G13, 78K0/Kx2 Migration Guide from 78K0 to RL78: Power-on-Clear Circuit, Low-Voltage Detector Rev.1.00 PDF390 KB日本語	Application Note	Jun 28, 2019
RL78/G13, 78K0/Kx2 Migration Guide from 78K0 to RL78: Watch timer to Real-time clock Rev.1.00 PDF387 KB日本語	Application Note	Jun 7, 2019
RL78/G13, 78K0/Kx2 Migration Guide from 78K0 to RL78: Watchdog Timer Rev.1.00 PDF387 KB日本語	Application Note	Jun 4, 2019
RL78/G13, 78K0/Kx2 Migration Guide from 78K0 to RL78: Reset function Rev.1.00 PDF253 KB日本語	Application Note	May 31, 2019
RL78/G13, 78K0/Kx2 Migration Guide from 78K0 to RL78: CPU architecture Rev.1.00 PDF222 KB日本語	Application Note	May 24, 2019
RL78/G13 CPU Clock Changing and Standby Settings (Assembly) CC-RL Rev.1.11 PDF961 KB日本語, 简体中文 Related Files: Sample Code RL78/G13 CPU时钟切换和待机设定（汇编语言篇） CC-RL Rev.1.00 - Sample Code	Application Note	May 20, 2019
RL78/G13 CPU Clock Changing and Standby Settings (C Language) CC-RL Rev.1.11 PDF976 KB日本語, 简体中文 Related Files: Sample Code RL78/G13 CPU时钟切换和待机设定（C语言篇） CC-RL Rev.1.00 - Sample Code	Application Note	May 20, 2019
RL78/G13, 78K0/Kx2 Migration Guide from 78K0 to RL78: Port Functions Rev.1.00 PDF324 KB日本語	Application Note	May 16, 2019
CAN Controller Usage: Applications and Frequently Asked Questions Rev.2.03 PDF1.81 MB	Application Note	May 15, 2019
RL78/G13, 78K0/Kx2 Migration Guide from 78K0 to RL78: Clock Generator Rev.1.00 PDF373 KB日本語	Application Note	May 8, 2019
RL78/G13 Software UART CC-RL Rev.1.00 PDF443 KB日本語 Related Files: Sample Code	Application Note	May 7, 2019
RL78/G13, 78K0/Kx2 Migration Guide from 78K0 to RL78: 16-Bit Timer/Event Counter 00 and 01 to Timer Array Unit Rev.1.00 PDF640 KB日本語	Application Note	Mar 29, 2019
RL78/G13, 78K0/Kx2 Migration Guide from 78K0 to RL78: 8-Bit Timer/Event Counters 50 and 51 to Timer Array Unit Rev.1.00 PDF470 KB日本語	Application Note	Mar 29, 2019
RL78/G13, 78K0/Kx2 Migration Guide from 78K0 to RL78: 8-Bit Timers H0 and H1 to Timer Array Unit Rev.1.00 PDF503 KB日本語	Application Note	Mar 29, 2019
RL78/G13, 78K0/Kx2 Migration Guide from 78K0 to RL78: Clock Output/ Buzzer Output Control Circuit Rev.1.00 PDF317 KB日本語	Application Note	Mar 29, 2019
RL78/G13, 78K0/Kx2 Migration Guide from 78K0 to RL78: Key Interrupt Rev.1.00 PDF316 KB日本語	Application Note	Mar 29, 2019
RL78/G13, 78K0/Kx2 Migration Guide from 78K0 to RL78: Multiplier/Divider Rev.1.00 PDF391 KB日本語	Application Note	Mar 29, 2019
RL78/G13, 78K0/Kx2 Migration Guide from 78K0 to RL78: Option byte Rev.1.00 PDF330 KB日本語	Application Note	Mar 29, 2019
Random Number Generator Rev.1.02 PDF560 KB	Application Note	Nov 28, 2018
RL78/G14, R8C/36M Group Migration Guide from R8C to RL78: Flash Memory Rev.1.00 PDF412 KB日本語	Application Note	Oct 26, 2018
RL78/G13 Measurement of Standby Mode Supply Current CC-RL Rev.1.00 PDF573 KB日本語 Related Files: Sample Code	Application Note	Sep 28, 2018
RL78/G14, R8C/36M Group Migration Guide from R8C to RL78: D/A converter Rev.1.00 PDF305 KB日本語	Application Note	Sep 26, 2018
RL78/G14, R8C/36M Group Migration Guide from R8C to RL78: Power Control Rev.1.00 PDF380 KB日本語	Application Note	Sep 5, 2018
RL78 Family RL78 I2C Multimaster Rev.1.00 PDF653 KB Related Files: Sample Code	Application Note	Aug 31, 2018
RL78/G14, R8C/36M Group Migration Guide from R8C to RL78: Reset Function Rev.1.00 PDF199 KB日本語, 简体中文	Application Note	Jun 27, 2018
RL78/G13 Evening Out the Variations in Brightness of Multiple LEDs CC-RL Rev.1.00 PDF931 KB日本語 Related Files: Sample Code	Application Note	Jun 22, 2018
RL78/G14, R8C/36M Group Migration Guide from R8C to RL78: I2C bus Interface (R01AN4107EJ0100) Rev.1.00 PDF181 KB日本語, 简体中文	Application Note	May 8, 2018
RL78/G14, R8C/36M Group Migration Guide from R8C to RL78: Synchronous Serial Communication Unit (SSU) Rev.1.00 PDF1.35 MB日本語 Related Files: Sample Code	Application Note	Apr 19, 2018
IEC60730/60335 Self Test Library of CCRL78 for RL78 MCU Application Notes (R01AN4822EJ0210) PDF3.59 MB日本語 Related Files: Sample Code	Application Note	Feb 8, 2018
RL78/G14, R8C/36M Group Migration Guide from R8C to RL78: Timer RC to Timer Array Unit Rev.1.00 PDF695 KB日本語 Related Files: Sample Code RL78/G14、R8C/36Mグループ R8CからRL78への移行ガイド：タイマRC→タイマ・アレイ・ユニット Rev.1.01 - Sample Code	Application Note	Jan 24, 2018
RL78 Software Migration Guide Source Code Migration from Assembly Language to C Language CC-RL Rev.1.01 PDF1.64 MB日本語, 简体中文	Application Note	Jan 23, 2018
RL78/G14, R8C/36M Group Migration Guide from R8C to RL78: Serial Interface Rev.1.00 PDF1.42 MB日本語 Related Files: Sample Code	Application Note	Dec 22, 2017
RL78/G14, R8C/36M Group Migration Guide from R8C to RL78: A/D Converter Rev.1.00 PDF1.74 MB日本語 Related Files: Sample Code	Application Note	Dec 21, 2017
RL78/G13 Serial Array Unit for 3-Wire Serial I/O (Master Transmission/Reception) CC-RL Rev.2.01 PDF435 KB日本語 Related Files: Sample Code	Application Note	Sep 21, 2017
RL78/G14, R8C/36M Group Migration Guide from R8C to RL78: Timer RB to Timer Array Unit Rev.1.00 PDF1.41 MB日本語 Related Files: Sample Code RL78/G14、R8C/36Mグループ R8CからRL78への移行ガイド：タイマRB→タイマ・アレイ・ユニット Rev.1.00 - Sample Code	Application Note	Aug 1, 2017
RL78/G14, R8C/36M Group Migration Guide from R8C to RL78: Timer RF to Timer Array Unit Rev.1.00 PDF662 KB日本語 Related Files: Sample Code RL78/G14, R8C/36Mグループ R8CからRL78への移行ガイド：タイマRF Rev.1.00 - Sample Code	Application Note	Aug 1, 2017
Current Consumption Tuning Solution for RL78 family (E2 Emulator, e² studio) Rev.1.00 PDF2.07 MB日本語	Application Note	Jul 16, 2017
Current Consumption Tuning Solution for RL78 family (E2 Emulator,CS+) Rev.1.00 PDF1.91 MB日本語	Application Note	Jul 16, 2017
CE Conformity Declaration PDF86 KB	Application Note	Jun 5, 2017
Table of Hazardous Substance PDF87 KB	Application Note	Jun 5, 2017
RL78 Family Software-based Part Number Reading Out Rev.1.00 PDF242 KB日本語, 简体中文	Application Note	May 26, 2017
IAR Embedded Workbench for RL78 Programming Techniques Rev.1.00 PDF701 KB	Application Note	Apr 14, 2017
RL78 Family C compiler CC-RL Programming Techniques Rev.1.10 PDF1.21 MB日本語	Application Note	Apr 10, 2017
Replacement Guide for R8C Family to RL78 Family (CcnvNC30) Rev.1.00 PDF987 KB日本語, 简体中文 Related Files: Sample Code R8CファミリからRL78ファミリへの置き換えガイド(CcnvNC30) Rev.1.00 - Sample Code 从R8C转至RL78的迁移指南（CcnvNC30） Rev.1.00 - Sample Code	Application Note	Dec 22, 2016
Replacement Guide from 78K0 Family to RL78 Family (CcnvCA78K0) Rev.1.00 PDF1.47 MB日本語, 简体中文 Related Files: Sample Code 从78K0转至RL78的迁移指南（CcnvCA78K0） Rev.1.00 - Sample Code	Application Note	Nov 8, 2016
RL78/G13 EEPROM Emulation Library Pack01 Rev.1.10 PDF385 KB日本語 Related Files: Sample Code	Application Note	Jun 1, 2016
RL78/G13 Flash Data Library Type04 Rev.1.20 PDF426 KB日本語 Related Files: Sample Code	Application Note	Jun 1, 2016
RL78/G13 Self-Programming (Received Data via CSI) Rev.1.10 PDF310 KB日本語 Related Files: Sample Code	Application Note	Jun 1, 2016
RL78/G13 Self-Programming (Received Data via IIC) Rev.1.10 PDF326 KB日本語 Related Files: Sample Code	Application Note	Jun 1, 2016
RL78/G13 Self-Programming (Received Data via UART) Rev.1.10 PDF317 KB日本語 Related Files: Sample Code	Application Note	Jun 1, 2016
RL78/G14, RL78/G1C, RL76/L12, RL78/L13, RL78/L1C Group I2C Bus Single Master Control Software Using IICA Serial Interface Rev.1.04 PDF829 KB日本語 Related Files: RL78/G14, RL78/G1C, RL78/L12, RL78/L13, RL78/L1C Group I2C Bus Single Master Control Software Using IICA Serial Interface Rev.1.04 - Sample Code	Application Note	Mar 31, 2016
RX Family, RL78 Family Renesas R1EX24xxx Series Serial EEPROM Control Software Rev.1.03 PDF688 KB日本語 Related Files: Sample Code	Application Note	Mar 31, 2016
RX Family, RL78 Family, 78K0R/Kx3-L Micron Technology M25P Series Serial Flash memory Control Software Rev.1.06 PDF2.46 MB日本語 Related Files: Sample Code	Application Note	Mar 31, 2016
RX Family, RL78 Family, 78K0R/Kx3-L Micron Technology M45PE Series Serial Flash memory Control Software Rev.1.06 PDF2.02 MB日本語 Related Files: Sample Code	Application Note	Mar 31, 2016
RX Family, RL78 Family, 78K0R/Kx3-L Micron Technology N25Q Serial NOR Flash Memory Control Software Rev.1.04 PDF775 KB日本語 Related Files: Sample Code	Application Note	Mar 31, 2016
RX Family, RL78 Family, 78K0R/Kx3-L Micron Technology P5Q Serial Phase Change Memory Control Software Rev.1.04 PDF732 KB日本語 Related Files: Sample Code	Application Note	Mar 31, 2016
RX Family, RL78 Family, 78K0R/Kx3-L Renesas R1EX25xxx Series Serial EEPROM Control Software Rev.1.06 PDF1.79 MB日本語 Related Files: Sample Code	Application Note	Mar 31, 2016
RX Family, RL78 Family, 78K0R/Kx3-L Spansion S25FLxxxS MirrorBit® Flash Non-Volatile Memory Control Software Rev.1.04 PDF801 KB日本語 Related Files: Sample Code	Application Note	Mar 31, 2016
RL78 Software Migration Guide Migrating from CA78K0R to CC-RL (CS+) Rev.1.00 PDF3.19 MB日本語, 简体中文	Application Note	Feb 26, 2016
RL78/G13 EEPROM Control by Microwire Communications CC-RL Rev.1.00 PDF605 KB日本語 Related Files: Sample Code	Application Note	Feb 22, 2016
RL78/G13 Serial Array Unit (SAU)(EEPROM Control Using Simplified IIC) CC-RL [for CS+, e2studio] Rev.1.00 PDF775 KB日本語 Related Files: Sample Code	Application Note	Feb 22, 2016
RL78/G13 High-speed On-chip Oscillator (HOCO)Clock Frequency Correction CC-RL Rev.1.00 PDF490 KB日本語 Related Files: Sample Code	Application Note	Feb 15, 2016
RL78/G13 Self-Programming (Received Data via IIC) CC-RL Rev.1.00 PDF318 KB日本語 Related Files: Sample Code	Application Note	Feb 8, 2016
RL78/G13 A/D converter One-shot conversion mode(Low power) Rev.1.00 PDF1.30 MB日本語, 简体中文 Related Files: Sample Code	Application Note	Feb 5, 2016
RL78/G13 Usage Example of the Code Generator (Sample Program) Rev.1.00 PDF1.32 MB日本語, 简体中文 Related Files: Sample Code	Application Note	Feb 5, 2016
RL78/G13 Self-Programming (Received Data via CSI) CC-RL Rev.1.00 PDF322 KB日本語 Related Files: Sample Code	Application Note	Jan 29, 2016
RL78/G13 EEPROM Control by Microwire Communications Rev.1.10 PDF438 KB日本語 Related Files: Sample Code RL78/G13 Microwire 通信によるEEPROM 制御 Rev.1.00 - Sample Code	Application Note	Dec 22, 2015
RL78/G13 Multiple PWM generation using DMA CC-RL Rev.1.00 PDF129 KB日本語 Related Files: Sample Code	Application Note	Dec 15, 2015
RL78/G13 A/D Converter (Software Trigger and Sequential Conversion Modes) CC-RL Rev.2.00 PDF226 KB日本語 Related Files: Sample Code	Application Note	Aug 20, 2015
RL78/G13 Low-power Consumption Operation CC-RL Rev.2.00 PDF391 KB日本語 Related Files: Sample Code	Application Note	Aug 20, 2015
RL78/G13 Renesas Starter Kit Sample Code (CS+ for CC-RL) Rev.1.00 PDF540 KB日本語 Related Files: Sample Code	Application Note	Aug 4, 2015
RL78/G13 Initialization CC-RL Rev.2.00 PDF459 KB日本語 Related Files: Sample Code	Application Note	Jul 1, 2015
RL78/G13 Real-Time Clock CC-RL Rev.2.00 PDF156 KB日本語 Related Files: Sample Code	Application Note	Jul 1, 2015
RL78/G13 Serial Array Unit (UART Communication) CC-RL Rev.2.00 PDF232 KB日本語 Related Files: Sample Code	Application Note	Jul 1, 2015
RL78/G13 Serial Array Unit for 3-Wire Serial I/O (Slave Transmission/Reception) CC-RL Rev.2.00 PDF234 KB日本語 Related Files: Sample Code	Application Note	Jul 1, 2015
RL78/G13 Timer Array Unit (Interval Timer) CC-RL Rev.2.00 PDF207 KB日本語 Related Files: Sample Code	Application Note	Jul 1, 2015
RL78/G13 Timer Array Unit (PWM Output) CC-RL Rev.2.00 PDF266 KB日本語 Related Files: Sample Code	Application Note	Jul 1, 2015
RL78/G13 Clock Generator(Clock Switching) CC-RL Rev.1.00 PDF247 KB日本語 Related Files: Sample Code	Application Note	May 28, 2015
RL78/G13 DMA Controller (PWM Output) CC-RL Rev.1.00 PDF189 KB日本語 Related Files: Sample Code	Application Note	May 28, 2015
RL78/G13 DMA Controller(3-Wire Serial I/O Sequential Reception) CC-RL Rev.1.00 PDF202 KB日本語 Related Files: Sample Code	Application Note	May 28, 2015
RL78/G13 DMA Controller(UART Sequential Reception) CC-RL Rev.1.00 PDF203 KB日本語, 简体中文 Related Files: Sample Code RL78/G13 DMA控制器（UART连续接收） CC-RL Rev.1.00 - Sample Code	Application Note	May 28, 2015
RL78/G13 Data Flash Library Type04 CC-RL Rev.1.00 PDF357 KB日本語 Related Files: Sample Code	Application Note	May 28, 2015
RL78/G13 Key Interrupt Function CC-RL Rev.2.00 PDF186 KB日本語 Related Files: Sample Code	Application Note	May 28, 2015
RL78/G13 Safety Function (Flash Memory CRC Operation Function) CC-RL Rev.1.00 PDF234 KB日本語 Related Files: Sample Code	Application Note	May 28, 2015
RL78/G13 Safety Function (Frequency Detection) CC-RL Rev.1.00 PDF339 KB日本語 Related Files: Sample Code	Application Note	May 28, 2015
RL78/G13 Self-Programming (Received Data via UART) CC-RL Rev.1.00 PDF237 KB日本語 Related Files: Sample Code	Application Note	May 28, 2015
RL78/G13 Voltage Detector(Reset Mode) CC-RL Rev.1.00 PDF126 KB日本語 Related Files: Sample Code	Application Note	May 28, 2015
RL78/G13 A/D Converter (SNOOZE Mode) CC-RL Rev.1.00 PDF270 KB日本語 Related Files: Sample Code	Application Note	Apr 16, 2015
RL78/G13 DMA Controller(A/D Converter in Sequential Conversion Mode) CC-RL Rev.1.00 PDF277 KB日本語 Related Files: Sample Code	Application Note	Apr 16, 2015
RL78/G13 Low-power Consumption Operation (CSI in SNOOZE Mode) CC-RL Rev.1.00 PDF340 KB日本語 Related Files: Sample Code	Application Note	Apr 16, 2015
RL78/G13 Low-power Consumption Operation (UART in SNOOZE Mode) CC-RL Rev.1.00 PDF266 KB日本語 Related Files: Sample Code	Application Note	Apr 16, 2015
RL78/G13 Multiplier and Divider/Multiply-Accumulator (A/D Converter in Sequential Conversion Mode) CC-RL Rev.1.00 PDF256 KB日本語 Related Files: Sample Code	Application Note	Apr 16, 2015
RL78/G13 A/D Converter (Software Trigger and Sequential Conversion Modes) [for CubeSuite+, IAR, and e2 studio] Rev.2.01 PDF213 KB日本語, 简体中文 Related Files: Sample Code RL78/G13 A/Dコンバータ（ソフトウエア・トリガ、連続変換モード）【開発環境：CubeSuite+、IAR、e2 studio】 Rev.3.01 - Sample Code RL78/G13 群A/D 转换器（软件触发、连续转换模式） Rev.1.00 - Sample Code	Application Note	May 16, 2014
RL78/G13 Initialization [for CubeSuite+, IAR, and e2 studio] Rev.2.01 PDF293 KB日本語, 简体中文 Related Files: Sample Code RL78/G13 初期設定【開発環境：CubeSuite+、IAR、e2 studio】 Rev.3.01 - Sample Code RL78/G13 群初始设定 Rev.1.00 - Sample Code	Application Note	May 16, 2014
RL78/G13 Serial Array Unit (SAU)(EEPROM Control Using Simplified IIC) [for CubeSuite+, IAR, and e2 studio] Rev.2.01 PDF851 KB日本語, 简体中文 Related Files: Sample Code RL78/G13群串行阵列单元（SAU）（通过简易IIC控制EEPROM篇） Rev.1.01 - Sample Code	Application Note	May 16, 2014
Application execution in RAM (RL78) Rev.1.00 PDF792 KB	Application Note	Apr 2, 2014
RL78/G13 Serial Array Unit (UART Communication) Rev.2.00 PDF223 KB日本語, 简体中文 Related Files: Sample Code RL78/G13 シリアル・アレイ・ユニット（UART 通信） Rev.3.00 - Sample Code RL78/G13群串行阵列单元（UART通信） Rev.1.00 - Sample Code	Application Note	Mar 24, 2014
RL78/G14, M16C/62P Group Migration Guide from M16C/62P to RL78/G14: A/D Converter Rev.1.00 PDF893 KB日本語, 简体中文	Application Note	Mar 6, 2014
RL78 Family VDE Certified IEC60730/60335 Self Test Library (European) v201 PDF1.42 MB Related Files: RL78 Family VDE Certified IEC60730/60335 Self Test Library (Japanese) - Sample Code v201	Application Note	Mar 4, 2014
RL78/G14, H8/3687 Group Migration Guide from H8/3687 to RL78/G14: Interrupts (Exception Handling) Rev.1.00 PDF477 KB日本語, 简体中文	Application Note	Mar 3, 2014
RL78/G14, H8/3687 Group Migration Guide from H8/3687 to RL78/G14:I/O Ports Rev.1.00 PDF347 KB日本語	Application Note	Mar 3, 2014
RL78/G14, M16C/62P Group Migration Guide from M16C/62P to RL78/G14: Interrupts Rev.1.00 PDF528 KB日本語, 简体中文	Application Note	Mar 3, 2014
RL78/G14, R8C/36M Group Migration Guide from R8C to RL78: Power-on Reset and Voltage Detector Rev.1.00 PDF221 KB日本語, 简体中文	Application Note	Feb 14, 2014
RL78/G13 High-speed On-chip Oscillator (HOCO) Clock Frequency Correction Rev.2.00 PDF1.29 MB日本語, 简体中文 Related Files: Sample Code RL78/G13 高速オンチップ・オシレータ・クロック周波数補正 Rev.3.00 - Sample Code RL78/G13群高速内部振荡器的时钟频率校正 Rev.1.01 - Sample Code	Application Note	Dec 27, 2013
RL78/G13 Key Interrupt Function Rev.2.00 PDF510 KB日本語, 简体中文 Related Files: Sample Code RL78/G13 キー割り込み機能 Rev.3.00 - Sample Code RL78/G13群键中断功能 Rev.1.00 - Sample Code	Application Note	Dec 27, 2013
RL78/G13 Real-Time Clock Rev.2.00 PDF214 KB日本語, 简体中文 Related Files: Sample Code RL78/G13 リアルタイム・クロック Rev.3.00 - Sample Code RL78/G13群实时时钟 Rev.1.00 - Sample Code	Application Note	Dec 27, 2013
RL78/G13 Serial Array Unit for 3-Wire Serial I/O (Master Transmission/Reception) Rev.2.00 PDF737 KB日本語, 简体中文 Related Files: Sample Code RL78/G13 シリアル・アレイ・ユニット 3 線シリアルI/O（マスタ送受信） Rev.3.00 - Sample Code 串行阵列单元 3线串行I/O（主发送/接收） Rev.1.00 - Sample Code	Application Note	Dec 27, 2013
RL78/G13 Serial Array Unit for 3-Wire Serial I/O (Slave Transmission/Reception) Rev.2.00 PDF686 KB日本語, 简体中文 Related Files: Sample Code RL78/G13 シリアル・アレイ・ユニット 3 線シリアルI/O（スレーブ送受信） Rev.3.00 - Sample Code RL78/G13群串行阵列单元 3线串行I/O（从发送/接收） Rev.1.00 - Sample Code	Application Note	Dec 27, 2013
RL78/G13 Serial Interface IICA (for Master Transmission/Reception) Rev.2.00 PDF885 KB日本語, 简体中文 Related Files: Sample Code RL78/G13 シリアル・インタフェースIICA（マスタ送受信） Rev.3.00 - Sample Code RL78/G13群串行接口IICA（主发送/接收） Rev.1.01 - Sample Code	Application Note	Dec 27, 2013
RL78/G13 Serial Interface IICA (for Slave Transmission/Reception) Rev.2.00 PDF720 KB日本語, 简体中文 Related Files: Sample Code RL78/G13 シリアル・インタフェースIICA（スレーブ送受信） Rev.3.00 - Sample Code RL78/G13群串行接口IICA（从发送/接收） Rev.1.01 - Sample Code	Application Note	Dec 27, 2013
RL78/G13 Timer Array Unit (Interval Timer) Rev.2.00 PDF541 KB日本語, 简体中文 Related Files: Sample Code RL78/G13 タイマ・アレイ・ユニット（インターバル・タイマ） Rev.3.00 - Sample Code RL78/G13群定时器阵列单元（间隔定时器） Rev.1.00 - Sample Code	Application Note	Dec 27, 2013
RL78/G13 Timer Array Unit (PWM Output) Rev.2.00 PDF703 KB日本語, 简体中文 Related Files: Sample Code RL78/G13 タイマ・アレイ・ユニット（PWM出力） Rev.3.00 - Sample Code RL78/G13群定时器阵列单元（PWM输出） Rev.1.01 - Sample Code	Application Note	Dec 27, 2013
RL78/G13 Timer Array Unit (Pulse Interval Measurement) Rev.2.00 PDF125 KB日本語, 简体中文 Related Files: Sample Code RL78/G13 タイマ・アレイ・ユニット（パルス間隔測定） Rev.3.00 - Sample Code RL78/G13群定时器阵列单元（脉冲间隔测量） Rev.1.00 - Sample Code	Application Note	Dec 27, 2013
RL78/G14, M16C/62P Group Migration Guide from M16C/62P to RL78/G14: I/O Ports Rev.1.00 PDF346 KB日本語, 简体中文	Application Note	Dec 10, 2013
RL78/G14, R8C/36M Group Migration Guide from R8C to RL78: Timer RE to Real-time Clock Rev.1.00 PDF272 KB日本語, 简体中文	Application Note	Dec 2, 2013
RL78/G13 Low-power Consumption Operation (UART in SNOOZE Mode) Rev.2.00 PDF263 KB日本語 Related Files: Sample Code	Application Note	Dec 1, 2013
RL78/G13 Low-power Consumption Operation Rev.2.10 PDF324 KB日本語 Related Files: Sample Code	Application Note	Dec 1, 2013
RL78/G14, R8C/36M Group Migration Guide from R8C to RL78: Timer RA to Timer Array Unit Rev.1.00 PDF344 KB日本語, 简体中文	Application Note	Nov 18, 2013
RL78/G13 A/D Converter (SNOOZE Mode) Rev.1.00 PDF289 KB日本語 Related Files: Sample Code	Application Note	Sep 30, 2013
RL78/G13 Basic Initialisation for GNURL78 v13.01 Toolchain Rev.1.00 PDF359 KB Related Files: Sample Code	Application Note	Jun 7, 2013
RL78/G13 High-speed On-chip Oscillator (HOCO) Clock Frequency Correction for GNURL78 v13.01 Toolchain Rev.1.00 PDF1.43 MB Related Files: Sample Code	Application Note	Jun 7, 2013
RL78/G13 Sample Tutorial for RL78/G13 using the RL78/G13 RSK (For e2studio) Rev.1.00 PDF207 KB Related Files: RL78/G13 Sample Tutorial for RL78/G13 using the RL78/G13 RSK (For e²studio) Rev.1.00 - Sample Code	Application Note	Jun 7, 2013
RL78/G13 Utilising I2C in Master Mode (Using GNURL78 v13.01 Toolchain) Rev.1.00 PDF210 KB Related Files: RL78/G13 Utilising I²C in Master Mode (Using GNURL78 v13.01 Toolchain) Rev.1.00 - Sample Code	Application Note	Jun 7, 2013
RL78/G13 Utilising I2C in Slave Mode (Using GNURL78 v13.01 Toolchain) Rev.1.00 PDF231 KB Related Files: RL78/G13 Utilising I²C in Slave Mode (Using GNURL78 v13.01 Toolchain) Rev.1.00 - Sample Code	Application Note	Jun 7, 2013
RL78/G13 Utilising Low Voltage Detection (LVD) (Using GNURL78 v13.01 Toolchain) Rev.1.00 PDF208 KB Related Files: Sample Code	Application Note	Jun 7, 2013
RL78/G13 Utilising the ADC in One Repeat Mode (Using GNURL78 v13.01 Toolchain) Rev.1.00 PDF202 KB Related Files: Sample Code	Application Note	Jun 7, 2013
RL78/G13 Utilising the ADC in One Shot Mode (Using GNURL78 v13.01 Toolchain) Rev.1.00 PDF218 KB Related Files: Sample Code	Application Note	Jun 7, 2013
RL78/G13 Utilising the DMAC (Using GNURL78 v13.01 Toolchain) Rev.1.00 PDF259 KB Related Files: Sample Code	Application Note	Jun 7, 2013
RL78/G13 Utilising the Low Power Snooze Mode (Using GNURL78 v13.01 Toolchain) Rev.1.00 PDF267 KB Related Files: Sample Code	Application Note	Jun 7, 2013
RL78/G13 Utilising the Real Time Clock (Using GNURL78 v13.01 Toolchain) Rev.1.00 PDF207 KB Related Files: Sample Code	Application Note	Jun 7, 2013
RL78/G13 Utilising the Serial Array Unit (SAU) for LIN Communications (Using GNURL78 v13.01 Toolchain) Rev.1.00 PDF215 KB Related Files: Sample Code	Application Note	Jun 7, 2013
RL78/G13 Utilising the Serial Array Unit (SAU) in Async Mode (Using GNURL78 v13.01 Toolchain) Rev.1.00 PDF209 KB Related Files: Sample Code	Application Note	Jun 7, 2013
RL78/G13 Utilising the Serial Array Unit (SAU) in Sync Mode (Using GNURL78 v13.01 Toolchain) Rev.1.00 PDF230 KB Related Files: Sample Code	Application Note	Jun 7, 2013
RL78/G13 Utilising the Timer Array Unit (TAU) (Using GNURL78 v13.01 Toolchain) Rev.1.00 PDF476 KB Related Files: Sample Code	Application Note	Jun 7, 2013
RL78/G13 Utilising the Watch Dog Timer (Using GNURL78 v13.01 Toolchain) Rev.1.00 PDF207 KB Related Files: Sample Code	Application Note	Jun 7, 2013
RL78/G13 Voltage Detector (Reset Mode) for GNURL78 v13.01 Toolchain Rev.1.00 PDF371 KB Related Files: Sample Code	Application Note	Jun 7, 2013
RL78/G14, R8C/36M Group Migration Guide from R8C to RL78: I/O ports Rev.1.00 PDF224 KB日本語, 简体中文	Application Note	Jun 1, 2013
RL78/G14, R8C/36M Group Migration Guide from R8C to RL78: Interrupts Rev.1.00 PDF286 KB日本語, 简体中文	Application Note	Jun 1, 2013
RL78/G13 Flash Self Programming: Execution: Application Note Rev.1.02 PDF1.04 MB日本語 Related Files: Sample Program for RL78/G13 group Flash Self Programming: Execution Rev.1.02 - Sample Code	Application Note	Feb 15, 2013
RL78/G14, R8C/36M Group Migration Guide from R8C to RL78: Watchdog timer Rev.1.00 PDF102 KB日本語, 简体中文 Related Files: Sample Code RL78/G14群、R8C/36M群由RL78替换R8C：看门狗定时器 Rev.1.00 - Sample Code	Application Note	Feb 12, 2013
RL78/G13 Boot Loader through SCI Rev.1.00 PDF1.08 MB Related Files: Sample Code	Application Note	Jan 22, 2013
RL78 Family CubeSuite+ Startup Guide Rev.1.00 PDF1.04 MB日本語	Application Note	Aug 24, 2012
RL78/G13 DMA Controller (A/D Converter in Sequential Conversion Mode) Rev.1.01 PDF233 KB日本語 Related Files: Sample Code RL78/G13 DMAコントローラ（A/Dコンバータ　連続変換モード） Rev.1.00 - Sample Code	Application Note	Apr 20, 2012
78K0, 78K0R, RL78 and V850 Devices Flash Protection and Security Setting Guide Rev.1.01 PDF1.41 MB	Application Note	Mar 31, 2012
RL78/G13 Multiple PWM generation using DMA Rev.1.00 PDF161 KB日本語, 简体中文 Related Files: Sample Code RL78/G13群使用DMA生成多重PWM	Application Note	Mar 31, 2012
RL78/G13 Clock Generator (Clock Switching) Rev.1.00 PDF681 KB日本語, 简体中文 Related Files: Sample Code RL78/G13 クロック発生回路（クロック切り替え） Rev.1.01 - Sample Code RL78/G13群时钟发生电路（时钟切换） Rev.1.00 - Sample Code	Application Note	Mar 15, 2012
RL78/G13 DMA Controller (3-Wire Serial I/O Sequential Reception) Rev.1.00 PDF531 KB日本語 Related Files: Sample Code	Application Note	Mar 15, 2012
RL78/G13 DMA Controller (PWM Output) Rev.1.00 PDF548 KB日本語 Related Files: Sample Code	Application Note	Mar 15, 2012
RL78/G13 DMA Controller (UART Sequential Reception) Rev.1.00 PDF574 KB日本語 Related Files: Sample Code	Application Note	Mar 15, 2012
RL78/G13 Multiplier and Divider/Multiply-Accumulator (A/D Converter in Sequential Conversion Mode) Rev.1.00 PDF668 KB日本語 Related Files: Sample Code	Application Note	Mar 15, 2012
RL78/G13 Safety Function (Flash Memory CRC Operation Function) Rev.1.00 PDF651 KB日本語, 简体中文 Related Files: Sample Code	Application Note	Mar 15, 2012
RL78/G13 Basic Initialisation for Cubesuite+ and IAR Toolchain Rev.1.00 PDF189 KB Related Files: Sample Code	Application Note	Mar 13, 2012
RL78/G13 High-speed On-chip Oscillator (HOCO) Clock Frequency Correction for Cubesuite+ and IAR Toolchain Rev.1.00 PDF424 KB Related Files: Sample Code	Application Note	Mar 13, 2012
RL78/G13 Voltage Detector (Reset Mode) for Cubesuite+ and IAR Toolchain Rev.1.00 PDF129 KB Related Files: Sample Code	Application Note	Mar 13, 2012
M16C/65C Group and RL78/G13, RL78/G14 Rev.1.00 PDF90 KB日本語, 简体中文	Application Note	Mar 5, 2012
R8C/36M Group, RL78/G13, RL78/G14 Peripheral Function Comparison between R8C/36M Group and RL78/G13, RL78/G14 Rev.1.01 PDF245 KB日本語, 简体中文	Application Note	Mar 5, 2012
RL78/G13 Low-power Consumption Operation (CSI in SNOOZE Mode) Rev.1.00 PDF890 KB日本語, 简体中文 Related Files: Sample Code RL78/G13群低功耗（SNOOZE模式CSI篇） Rev.1.01 - Sample Code	Application Note	Feb 28, 2012
RL78/G13 Safety Function (Frequency Detection) Rev.1.00 PDF855 KB日本語, 简体中文 Related Files: Sample Code RL78/G13群安全功能（频率检测功能） Rev.1.00 - Sample Code	Application Note	Feb 27, 2012
RL78/G13 Safety Function (A/D Test) Rev.1.00 PDF632 KB日本語, 简体中文 Related Files: Sample Code RL78/G13群安全功能（A/D测试） Rev.1.00 - Sample Code	Application Note	Feb 15, 2012
RL78/G13 Renesas Starter Kit Sample Code for Cubesuite + Toolchain Rev.1.00 PDF277 KB Related Files: Sample Code	Application Note	Jan 27, 2012
RL78/G13 Renesas Starter Kit Sample Code for IAR Toolchain Rev.1.00 PDF221 KB Related Files: Sample Code	Application Note	Jan 27, 2012
RL78 Minimizing Power Consumption when Sensing Switch Inputs Rev.1.00 PDF104 KB	Application Note	Jan 12, 2012
RL78/G13 ADC in One Shot Mode Sample Code Rev.1.00 PDF232 KB Related Files: Sample Code	Application Note	Nov 23, 2011
RL78/G13 ADC in Repeat Mode Sample Code Rev.1.00 PDF220 KB Related Files: Sample Code	Application Note	Nov 23, 2011
RL78/G13 Sample Tutorial for RL78/G13 using the RL78/G13 RSK Rev.1.00 PDF219 KB Related Files: Sample Code	Application Note	Nov 23, 2011
RL78/G13 Ultilising the Real Time Clock Sample Code Rev.1.00 PDF215 KB Related Files: Sample Code	Application Note	Nov 23, 2011
RL78/G13 Utilising the DMAC Sample Code Rev.1.00 PDF220 KB Related Files: Sample Code	Application Note	Nov 23, 2011
RL78/G13 Utilising the I2C in Master Mode Sample Code Rev.1.00 PDF221 KB Related Files: Sample Code	Application Note	Nov 23, 2011
RL78/G13 Utilising the I2C in Slave Mode Sample Code Rev.1.00 PDF217 KB Related Files: Sample Code	Application Note	Nov 23, 2011
RL78/G13 Utilising the Low Voltage Detection (LVD) Sample Code Rev.1.00 PDF219 KB Related Files: Sample Code	Application Note	Nov 23, 2011
RL78/G13 Utilising the Serial Array Unit (SAU) in Async Mode Sample Code Rev.1.00 PDF220 KB Related Files: Sample Code	Application Note	Nov 23, 2011
RL78/G13 Utilising the Serial Array Unit (SAU) in LIN Communications Sample Code Rev.1.00 PDF221 KB Related Files: Sample Code	Application Note	Nov 23, 2011
RL78/G13 Utilising the Serial Array Unit (SAU) in Sync Mode Sample Code Rev.1.00 PDF221 KB Related Files: Sample Code	Application Note	Nov 23, 2011
RL78/G13 Utilising the Snooze Mode Sample Code Rev.1.00 PDF222 KB Related Files: Sample Code	Application Note	Nov 23, 2011
RL78/G13 Utilising the Timer Array Unit (TAU) Sample Code Rev.1.00 PDF221 KB Related Files: Sample Code	Application Note	Nov 23, 2011
RL78/G13 Utilising the Watchdog Timer (WDT) Sample Code Rev.1.00 PDF232 KB Related Files: Sample Code	Application Note	Nov 23, 2011
RL78/G13 Pulse Oximeter Reference Design Rev.1.00 PDF1.37 MB	Application Note	Nov 15, 2011
RL78/G13 and RX62N/RX621 Digital Stethoscope Reference Design Rev.1.00 PDF1.34 MB	Application Note	Nov 15, 2011
RL78 BLDC Motor Control Rev.1.00 PDF1.51 MB	Application Note	Nov 7, 2011
RL78 Microcontrollers (RL78 Protocol A) Programmer Edition Application Note PDF3.28 MB日本語, 简体中文	Application Note	Nov 7, 2011
RL78 Family Notes and Countermeasures Against Noise Rev.1.00 PDF230 KB日本語, 简体中文	Application Note	Oct 4, 2011
RL78/G13 Voltage Detector (Reset Mode) Rev.1.00 PDF379 KB日本語, 简体中文 Related Files: Sample Code RL78/G13 電圧検出回路（リセット・モード） Rev.2.00 - Sample Code	Application Note	Sep 30, 2011
RL78 Family RL78 Low Power MCU Application Note Rev.1.00 PDF1.06 MB	Application Note	Sep 23, 2011
RL78/G13 Sample Tutorial for RL78/G13 using the RL78/G13 RSK (Using IAR Toolchain) Rev.1.00 PDF347 KB Related Files: Sample Code	Application Note	Sep 12, 2011
RL78/G13 Utilising I2C in Master Mode (Using IAR Toolchain) Rev.1.00 PDF348 KB Related Files: Sample Code	Application Note	Sep 12, 2011
RL78/G13 Utilising I2C in Slave Mode (Using IAR Toolchain) Rev.1.00 PDF347 KB Related Files: Sample Code	Application Note	Sep 12, 2011
RL78/G13 Utilising the ADC in One Shot Mode (Using IAR Toolchain) Rev.1.00 PDF347 KB Related Files: Sample Code	Application Note	Sep 12, 2011
RL78/G13 Utilising the ADC in Repeat Mode (Using IAR Toolchain) Rev.1.00 PDF347 KB Related Files: Sample Code	Application Note	Sep 12, 2011
RL78/G13 Utilising the DMAC (Using IAR Toolchain) Rev.1.00 PDF347 KB Related Files: Sample Code	Application Note	Sep 12, 2011
RL78/G13 Utilising the Real Time Clock (Using IAR Toolchain) Rev.1.00 PDF346 KB Related Files: Sample Code	Application Note	Sep 12, 2011
RL78/G13 Utilising the Serial Array Unit (SAU) for LIN Communications (Using IAR Toolchain) Rev.1.00 PDF349 KB Related Files: Sample Code	Application Note	Sep 12, 2011
RL78/G13 Utilising the Serial Array Unit (SAU) in Async Mode (Using IAR Toolchain) Rev.1.00 PDF347 KB Related Files: Sample Code	Application Note	Sep 12, 2011
RL78/G13 Utilising the Serial Array Unit (SAU) in Sync Mode (Using IAR Toolchain) Rev.1.00 PDF348 KB Related Files: Sample Code	Application Note	Sep 12, 2011
RL78/G13 Utilising the Timer Array Unit (TAU) (Using IAR Toolchain) Rev.1.00 PDF368 KB Related Files: Sample Code	Application Note	Sep 12, 2011
RL78/G13 Utilising the Watch Dog Timer (Using IAR Toolchain) Rev.1.00 PDF347 KB Related Files: Sample Code	Application Note	Sep 12, 2011
RL78G13 Utilising Low Voltage Detection (LVD) (Using IAR Toolchain) Rev.1.00 PDF347 KB Related Files: RL78/G13 Utilising Low Voltage Detection (LVD) (Using IAR Toolchain) Rev.1.00 - Sample Code	Application Note	Sep 12, 2011
RL78/G13 Group Multiple PWM generation using DMA Rev.1.00 PDF134 KB Related Files: Sample Code	Application Note	Aug 2, 2011
EEPROM Emulation Library EEL-T01 RL78 Series Rev.1.00 PDF1.13 MB	Application Note	Jun 17, 2011
RL78 Window Watchdog Timer Rev.1.00 PDF714 KB	Application Note	Apr 6, 2011
RL78 Bootloader - One Image (R11AN0470EU0100) Rev.1.00 PDF690 KB Related Files: RL78 Bootloader - One Image (D6004601) Rev.1.00 - Sample Code	Application Note	Aug 31, 2010

Microcontrollers & Microprocessors

Analog Products

Automotive Products

Clocks & Timing

Interface

Memory & Logic

Power & Power Management

Programmable Mixed-signal, ASIC & IP Products

RF Products

Sensor Products

Space & Harsh Environment

Wireless Connectivity

Applications

Design Resources

Sales & Support

About

Language

Region

Account

Low Power, Lower Operating Current Microcontrollers for General Purpose Applications

Microcontrollers & Microprocessors

Overview

Applications

Documentation

Language

Region

RL78/G13A

Low Power, Lower Operating Current Microcontrollers for General Purpose Applications

featured_play_listOverview

Description

Features

Applications

Applications

Documentation

Overview
