Nano Power, Push/Pull Output Comparator
Jump to Page Section:
Back to top
Explore ECAD Models
Overview

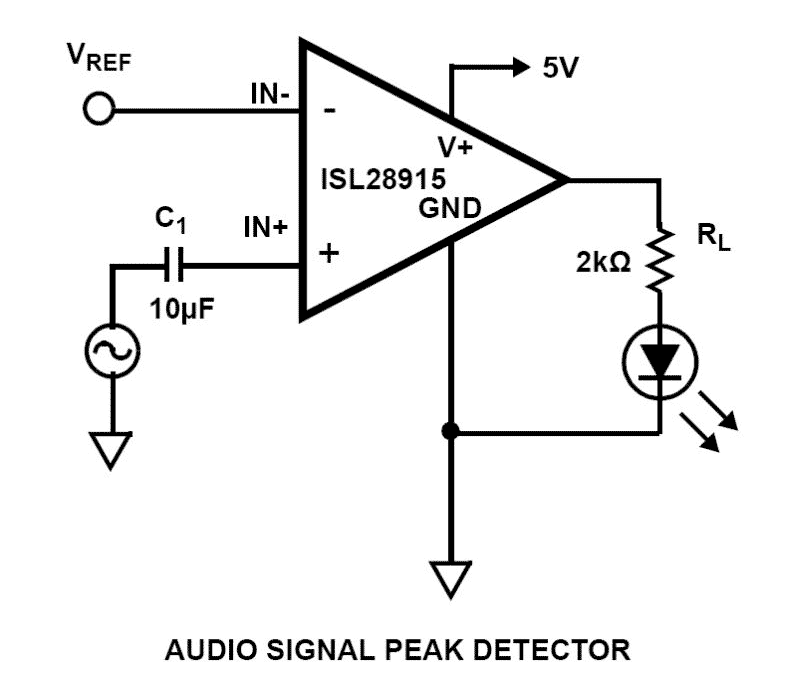

Description
The ISL28915 is a nano power comparator optimized for low-power applications. This device is designed for single-supply operation from 1. 8V to 5. 5V and typically consumes 500nA of supply current. These devices also feature a push/pull output stage with rail-to-rail input and output swing (RRIO), allowing for maximum battery usage. The combination of small footprint, low power, single supply, and rail-to-rail operation makes them ideally suited for all battery operated devices. The ISL28915 features an enable pin and is offered in the 6 Ld SOT-23 package. The device operates over the -40°C to +125°C temperature range.
Features
- Low Active Current: 600nA Max
- Low Disable Current: 20nA Max
- Propagation Delay: 150µs
- Rail-to-Rail Input/Output Voltage Range (RRIO)
- Wide Supply Range: 1.8V to 5.5V
- Operating Temperature Range: -40°C to +125°C
Applications
Applications
- Battery-Powered/Portable Systems
- Telemetry and Remote Systems
- Alarm and Monitoring Systems
- Oscillator Circuits
- Window Comparators
- Threshold Detectors/Discriminators
Design & Development
Boards & Kits
Boards & Kits
Flower Reference Design Featuring 4.5V - 18V Input Switching Regulator
Renesas' flower reference design showcases a diverse portfolio of products for broad market applications. From power management to precision analog and specialty ICs, we've got you covered for your designs.
The Flower Power reference design highlights Renesas' 4.5V – 18V input switching regulator. This board utilizes the ISL85005, 5A device as a representative of this full line-up of wide-input switching regulators.
Snowflake Ornament Reference Design Featuring Power and Analog Components
Renesas is ready for the cold with a full lineup of power and analog components spec'd to operate down to -40 °C. The snowflake ornament reference design has a series of LEDs that fade on and off in an eye-pleasing pattern and plays the familiar song "Let it Snow, Let it Snow, Let it Snow" via a small buzzer when the button on the back of the board is pressed.
The brightness of the LEDs adjust to the ambient light in the room in order to keep the brightness appropriate to the surroundings.
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
ISL28915FH6Z-T7 Active Samples Available |
SOT23 | Reel | 6000 | Get Samples, |
