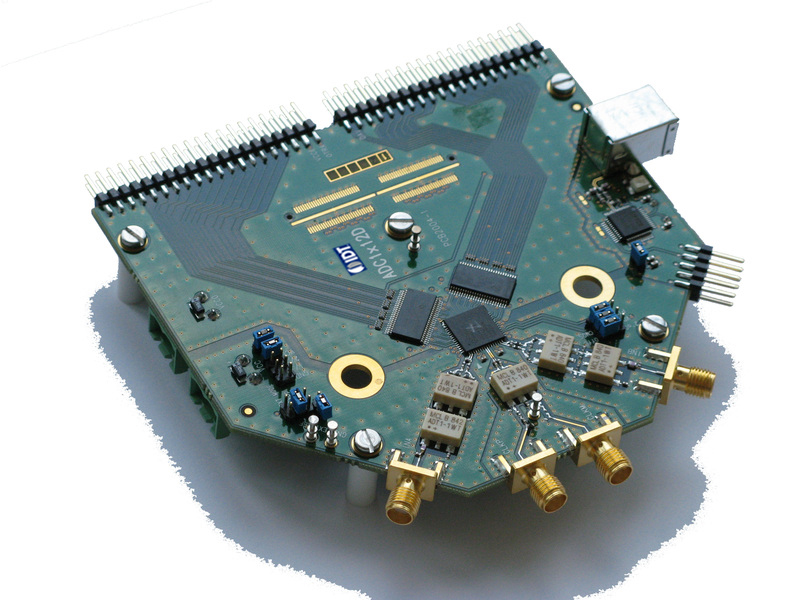

ADC1412D065F1 demo board; CMOS version; SPI, Regulators and CMOS buffer on board
Jump to Page Section:
Overview
Description
IDT's dual channel ADC demonstration board is suitable for dynamic performances evaluation from low to high IF configuration with LVCMOS outputs. A Data acquisition board can be used to easily analyze the ADC performances in the design and prototyping phase
Features
- SMA connector for clock and analog inputs signal
- CMOS (buffered outputs)
Product Options
Processing table
| BD0 | BOARD | 0 | I | No |
