RAA215300 Evaluation Board
The RAA215300 evaluation platform demonstrates the features and the performance of the RAA215300 high-performance, low-cost 9-channel PMIC designed for 32-bit and...
Overview
Description

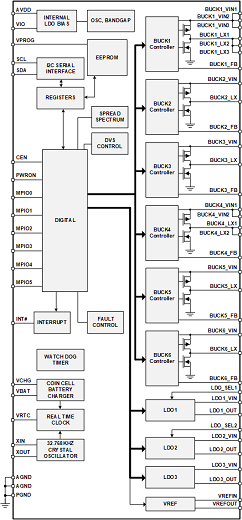

The RAA215300 is a high-performance, low-cost 9-channel PMIC designed for 32-bit and 64-bit MCU and MPU applications. It supports DDR3, DDR3L, DDR4, and LPDDR4 memory power interfaces. The internally compensated regulators, built-in Real-Time Clock (RTC), 32kHz crystal oscillator, and coin cell battery charger provide a highly integrated, small-footprint power solution ideal for System-on-Module (SoM) applications. The spread spectrum feature and ultrasonic mode provide an effective solution for noise-sensitive RF and audio applications.
For more information or to request documentation, please contact your local Renesas sales representative.
Features
- Input operating voltage range: 2.7V to 5.5V
- 6 synchronous buck regulators (supporting 5A, 3.5A, 2x1.5A, 1A, 0.6A)
- 3 LDOs (supporting 2x300mA, 50mA), with bypass mode support
- Dedicated VTTREF for DDR memory
- Auto PFM/PWM, FPWM, and ultrasonic modes, with selectable PWM fSW
- Built-in 32kHz crystal oscillator (with bypass), RTC, and coin cell battery/super cap charger
- DVS and Sleep modes
- Internally compensated
- Spread Spectrum
- I²C Serial Interface (up to 1MHz)
- Internal Programmable NVM (EEPROM)
- 6 Programmable MPIOs
- WatchDog timer
- Fault protections
- Pb-free (RoHS compliant)
Comparison
Applications
- MCU/MPU/SoC Consumer and Industrial Power
- Li-ion Battery System Power
- FPGA System Power
- Building/Factory Automation System Power
