MCU Selection Table

Product Selection Table

Processing table

Part Number (98) Featured Products (0) Additional Products	PLP Logical Operator	Family Name RA RL78 RX RZ Logical Operator	CPU ARM CM23 ARM CM33 ARM CM4 Cortex-A15 x 2 Cortex-A15 x 4 + Cortex-A7 x 4 Cortex-A53 x 2 Cortex-A55 x 1 Cortex-A55 x 1 + Cortex-M33 x 1 Cortex-A55 x 2 + Cortex-M33 x 1 Cortex-A57 x 2 + Cortex-A53 x 4 + Cortex-R7 x 1 Cortex-A57 x 2 + Cortex-R7 x 1 Cortex-A57 x 4 + Cortex-A53 x 4 + Cortex-R7 x 1 Cortex-A7 x 1 + Cortex-M3 x 1 Cortex-A7 x 2 Cortex-A7 x 2 + Cortex-M3 x 1 Cortex-A9 x 1 Cortex-M3 x 1 Cortex-R4F x 1 Cortex-R4F x 1 + Cortex-M3 x 1 Cortex-R52 x 1 Cortex-R52 x 2 RISC-V (AX45MP Single) RL78 RXv1 RXv2 RXv3 Logical Operator	Operating Freq (Max) (MHz)	Program Memory (KB)	Data Flash (KB)	RAM (KB)	Lead Count (#) 10 16 20 24 25 30 32 36 38 40 44 48 52 56 64 80 83 85 100 112 121 128 144 145 176 177 196 208 224 225 233 256 266 272 320 324 361 400 456 501 551 552 831 841 1022 Logical Operator	Supply Voltage (V) 1.6 - 3.6 1.6 - 5.5 1.7 - 5.5 1.8 - 3.6 1.8 - 5.5 1.9 - 5.5 2 - 5.5 2.4 - 3.6 2.4 - 5.5 2.7 - 3.6 2.7 - 5.5 2.97 - 3.63 3 - 3.6 3.1 - 3.5 3.135 - 3.465 Logical Operator	Bit Size 8 16 32 64 Logical Operator	Temp. Range -25 to 75°C -40 to 105°C -40 to 110°C -40 to 125°C -40 to 85°C Logical Operator	RTC No Yes Logical Operator	LVD No Yes Logical Operator	DMA DMAC x 4ch DMAC x 8ch DTC No Yes Logical Operator	I/O Ports 7 8 10 12 13 14 16 17 18 19 20 21 22 23 24 25 26 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 56 57 58 59 60 61 63 65 68 69 70 71 72 73 74 76 77 78 79 80 81 82 84 85 89 90 91 92 93 95 97 100 110 112 114 115 119 120 122 123 131 132 133 134 135 137 139 151 156 160 170 171 177 183 188 194 208 209 244 Logical Operator	Timer 12-bit Interval Timer x 1-ch 12-bit interval x 1-ch 12-bit x 1-ch 16-bit Asynchronous Timer x 2 16-bit timer RJ x 2-ch 16-bit x 10-ch 16-bit x 11-ch 16-bit x 12-ch 16-bit x 13-ch 16-bit x 15-ch 16-bit x 16-ch 16-bit x 17-ch 16-bit x 18-ch 16-bit x 19-ch 16-bit x 2-ch 16-bit x 24-ch 16-bit x 3-ch 16-bit x 4-ch 16-bit x 5-ch 16-bit x 6-ch 16-bit x 7-ch 16-bit x 8-ch 16-bit x 9-ch 32-bit Asynchronous Timer x 2 32-bit x 1-ch 32-bit x 10-ch 32-bit x 11-ch 32-bit x 12-ch 32-bit x 13-ch 32-bit x 14-ch 32-bit x 15-ch 32-bit x 18-ch 32-bit x 2-ch 32-bit x 3-ch 32-bit x 32-ch 32-bit x 4-ch 32-bit x 5-ch 32-bit x 7-ch 32-bit x 8-ch 32-bit x 9-ch 8-bit x 2-ch 8-bit x 3-ch 8-bit x 4-ch 8-bit x 6-ch 8-bit x 8-ch Asynchronous Timer x 2ch Asynchronous Timer x 6ch Low-Power 16-bit Asynchronous Timer x 6 Low-Power 32-bit Asynchronous Timer x 2-ch Logical Operator	Other Timers 16-bit Asynchronous Timer x 6 Logical Operator	ADC - 0 10-bit x 10-ch 10-bit x 11-ch 10-bit x 12-ch 10-bit x 13-ch 10-bit x 15-ch 10-bit x 17-ch 10-bit x 20-ch 10-bit x 26-ch 10-bit x 3-ch 10-bit x 4-ch 10-bit x 6-ch 10-bit x 7-ch 10-bit x 8-ch 10-bit x 9-ch 10-bit/8-bit x 10-ch 10-bit/8-bit x 11-ch 10-bit/8-bit x 3-ch 10-bit/8-bit x 4-ch 10-bit/8-bit x 6-ch 10-bit/8-bit x 7-ch 10-bit/8-bit x 8-ch 10-bit/8-bit x 9-ch 12-bit x 10-ch 12-bit x 11-ch 12-bit x 12-ch 12-bit x 13-ch 12-bit x 14-ch 12-bit x 15-ch 12-bit x 16-ch 12-bit x 17-ch 12-bit x 18-ch 12-bit x 19-ch 12-bit x 2-ch 12-bit x 20-ch 12-bit x 22-ch 12-bit x 24-ch 12-bit x 26-ch 12-bit x 28-ch 12-bit x 29-ch 12-bit x 30-ch 12-bit x 4-ch 12-bit x 5-ch 12-bit x 6-ch 12-bit x 7-ch 12-bit x 8-ch 12-bit x 9-ch 14-bit x 11-ch 14-bit x 14-ch 14-bit x 18-ch 14-bit x 18-ch and more... 14-bit x 8-ch 16-bit x 1-ch(differential) 16-bit x 10-ch 16-bit x 12-ch(single end) 16-bit x 17-ch(single end) 16-bit x 18-ch 16-bit x 29-ch 16-bit x 3-ch(differential) 16-bit x 4-ch(differential) 16-bit x 5-ch(single end) 16-bit x 8-ch(single end) 24-bit x 3-ch (Delta-Sigma) 24-bit x 4-ch (Delta-Sigma) 24-bit x 1-ch(differential) 24-bit x 2-ch(differential) 24-bit x 2-ch(single end) 24-bit x 3-ch (Delta-Sigma) 24-bit x 3-ch(differential) 24-bit x 4-ch (Delta-Sigma) 24-bit x 4-ch(differential) 24-bit x 4-ch(single end) 24-bit x 6-ch(single end) 24-bit x 8-ch(single end) 8/10/12-bit x 26-ch Logical Operator	DAC 10-bit x 2-ch 12-bit x 1-ch 12-bit x 2 ch 12-bit x 2-ch 12-bit x 4-ch 8-bit x 1-ch 8-bit x 2-ch No Logical Operator	CAN (ch) 0 1 2 3 5 Logical Operator	Ethernet - 10/100M x 1 ch 10/100M x 2 ch 10/100M x 2 ch (option) 10/100M/1G x 1 ch 10/100M/1G x 1/2 ch 10/100M/1G x 2 ch 10/100M/1G x 3 ch 10/100M/1G x 5 ch No Yes Logical Operator	USB - No USB Endpoints x 10 USB Endpoints x 10 USB Endpoints x 20 USB Endpoints x 5 USB Full-Speed Support USB Hi-Speed Support USB Host USB Isochronous Transfer Support USB Peripheral USB Ports (ch) x 1 USB Ports (ch) x 2 USB2.0 x 1 ch (1H/F/OTG) USB2.0 x 2 ch (1H, 1H/F) USB2.0 x 2 ch (1H, 1H/F/OTG) USB2.0 x 2 ch (1H,1H/F/OTG) USB2.0 × 2 ch (H/F) USB2.0 ×2 ch (1H, 1H/F) USB2.0 ×2 ch (1H, 1H/F/OTG) USB2.0 ×2 ch (1H,1H/F/OTG) USB2.0 ×2 ch (H/F/OTG) USB2.0 ×2ch (H/F) USB3.0 x 1 ch (DRD), USB2.0 x 2 ch (1H, 1H/F/OTG) USB3.0 x 1ch (DRD), USB2.0 x 2ch (1H, 1H/F/OTG) USB3.0 x1 ch (H), USB2.0 x 3 ch (2H, 1H/F) USB3.0 ×1 ch (DRD), USB2.0 ×1 ch (H/F) USB3.0 ×1 ch (DRD), USB2.0 ×2 ch (1H, 1H/F/OTG) USB3.0 ×1 ch (H), USB2.0 x2ch (1H, 1H/F) USB3.1 Gen1 x 1 ch (H/F) Logical Operator	Human Machine Interface - 2D drawing engine Camera Interface PDC Capacitive Sensing Unit 10ch Capacitive Sensing Unit 11ch Capacitive Sensing Unit 12ch Capacitive Sensing Unit 14ch Capacitive Sensing Unit 18ch Capacitive Sensing Unit 20ch Capacitive Sensing Unit 24ch Capacitive Sensing Unit 26ch Capacitive Sensing Unit 27ch Capacitive Sensing Unit 30ch Capacitive Sensing Unit 32ch Capacitive Sensing Unit 36ch Capacitive Sensing Unit 4ch Capacitive Sensing Unit 6ch Capacitive Sensing Unit 7ch Capacitive Sensing Unit 8ch Capacitive Sensing Unit 9ch Capacitive Sensor Capasitive touch sensing unit Display Function Graphics LCD Controller JPEG codec LCD Display Interface 4com x 20seg or 8com x 16seg LCD Display Interface 4com x 40seg or 8com x 36seg LCD Display Interface 4com x 9seg LCD Display Interface 4com × 38seg or 8com × 34seg LCD Segment Count x 120 LCD Segment Count x 144 LCD Segment Count x 176 LCD Segment Count x 208 LCD Segment Count x 224 LCD Segment Count x 240 LCD Segment Count x 256 LCD Segment Count x 27 LCD Segment Count x 280 LCD Segment Count x 304 LCD Segment Count x 320 LCD Segment Count x 328 LCD Segment Count x 36 LCD Segment Count x 376 LCD Segment Count x 416 LCD Segment Count x 52 No Remote control signal receiver Serial sound interface Video In Logical Operator	Security & Encryption - 128-bit Unique ID 3DES AES AES(128/192/256) AES(128/256) AES128 AES256 ARC4 Arm TrustZone DSA ECC GHASH Hash Key Management MD5 RSA SHA-1 SHA-224 SHA-256 Secure boot TRNG TSIP-Lite:AES(128/256) TSIP-Lite:CMAC TSIP-Lite:GMAC TSIP-Lite:Key management TSIP-Lite:TRNG TSIP:3DES TSIP:AES(128/256) TSIP:CMAC TSIP:ECC TSIP:GMAC TSIP:HMAC TSIP:Key management TSIP:MD5 TSIP:RSA TSIP:SHA-1 TSIP:SHA-256 TSIP:TRNG Logical Operator	Watchdog Timer (#) 1 2 3 Logical Operator	I2C (#) 0 1 2 3 4 5 6 7 8 9 10 11 13 14 15 16 17 19 Logical Operator	SPI (#) 0 1 2 3 4 5 6 7 8 9 10 11 13 14 15 16 17 19 Logical Operator	Capacitive Touch Sensing Unit (ch) (#) 0 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 24 26 27 30 32 36 Logical Operator	Power-On Reset No Yes Logical Operator	LIN (#) 0 1 2 3 Logical Operator	UART (#) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 18 Logical Operator	Delta-Sigma A/D Converter No Yes Logical Operator
RA2A1 PDF 32-bit Microcontrollers with 48MHz Arm® Cortex®-M23 and Integration of 24-bit Sigma-Delta ADC	2033 Oct	RA	ARM CM23	48	256	8	32	32, 36, 40, 48, 64	1.6 - 5.5	32	-40 to 85°C, -40 to 105°C	No, Yes	No, Yes	DTC	20, 22, 25, 33, 40, 49	16-bit x 3-ch, 16-bit x 4-ch, 16-bit x 6-ch, 32-bit x 1-ch and more...		16-bit x 1-ch(differential), 16-bit x 3-ch(differential) and more...	8-bit x 2-ch, 12-bit x 1-ch	1	No	USB Endpoints x 5, USB Host, USB Peripheral, USB Ports (ch) x 1	Capacitive Sensing Unit 26ch	AES128, AES256, TRNG	2	2	1, 2	9, 11, 16, 26	No	0	3	No
RA2E1 PDF 48MHz Arm® Cortex®-M23 Entry Level General-Purpose Microcontroller	2037 Dec	RA	ARM CM23	48	128, 32, 64	4	16	25, 32, 36, 48, 64	1.6 - 5.5	32	-40 to 85°C, -40 to 105°C	No, Yes	No, Yes	DTC	21, 26, 30, 40, 56	16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch		12-bit x 8-ch, 12-bit x 10-ch, 12-bit x 12-ch, 12-bit x 13-ch					Capacitive Sensing Unit 10ch, Capacitive Sensing Unit 11ch and more...	AES128, AES256, TRNG	2			10, 11, 14, 20, 30	Yes			No
RA2E2 PDF 48MHz Arm® Cortex®-M23 Ultra-Low Power General Purpose Microcontroller	2037 Dec	RA	ARM CM23	48	16, 32, 64	2	8	16, 20, 24	1.6 - 5.5	32	-40 to 85°C, -40 to 105°C, -40 to 125°C	No	No, Yes	DTC	12, 16, 20	16-bit x 6-ch, 32-bit Asynchronous Timer x 2		12-bit x 4-ch, 12-bit x 7-ch, 12-bit x 8-ch						AES128, AES256, TRNG	2			0	Yes			No
RA2L1 PDF 48MHz Arm® Cortex®-M23 Ultra-Low power General Purpose Microcontroller	2037 Dec	RA	ARM CM23	48	256, 128	8	32	48, 64, 80, 100	1.6 - 5.5	32	-40 to 85°C, -40 to 105°C	Yes	Yes	DTC	37, 53, 69, 85	16-bit Asynchronous Timer x 2, 16-bit x 3-ch, 16-bit x 6-ch, 32-bit x 4-ch		12-bit x 9-ch, 12-bit x 13-ch, 12-bit x 17-ch, 12-bit x 19-ch	12-bit x 1-ch	1	No	No	Capacitive Sensing Unit 20ch, Capacitive Sensing Unit 30ch and more...	AES128, AES256, TRNG				20, 30, 32	No			No
RA4E1 PDF 100MHz Arm® Cortex®-M33, Entry-Line with Balanced Low Power Consumption & Optimized Feature Integration	2037 Jul	RA	ARM CM33	100	512, 256	8	128	48, 64	2.7 - 3.6	32	-40 to 85°C	Yes	Yes	DMAC x 8ch, DTC	30, 44	16-bit x 2-ch, 32-bit x 2-ch		12-bit x 7-ch, 12-bit x 9-ch	12-bit x 1-ch, 12-bit x 2-ch	1	No	USB Full-Speed Support		128-bit Unique ID, Arm TrustZone, TRNG	2	1	1	0	No	0		No
RA4E2 PDF Entry-Line 100MHz Arm® Cortex®-M33 General Purpose Microcontroller	N/A	RA	ARM CM33	100	128	4	40	32, 36, 48, 64	2.7 - 3.6	32	-40 to 85°C, -40 to 105°C	Yes	Yes	DMAC x 8ch, DTC	16, 20, 29, 45	16-bit x 4-ch, Low-Power 32-bit Asynchronous Timer x 2-ch		12-bit x 4-ch, 12-bit x 5-ch, 12-bit x 8-ch, 12-bit x 12-ch	12-bit x 1-ch	1		USB Full-Speed Support		128-bit Unique ID, Arm TrustZone, TRNG	1	1	2		Yes		2	No
RA4M1 PDF 32-bit Microcontrollers with 48MHz Arm® Cortex®-M4 and LCD Controller and Cap Touch for HMI	2033 Oct	RA	ARM CM4	48	256	8	32	40, 48, 64, 100	1.6 - 5.5	32	-40 to 85°C, -40 to 105°C	Yes	Yes	DMAC x 4ch, DMAC x 8ch, DTC	28, 36, 52, 84	16-bit x 2-ch, 16-bit x 4-ch, 16-bit x 6-ch, 32-bit x 2-ch		14-bit x 11-ch, 14-bit x 14-ch, 14-bit x 18-ch, 14-bit x 18-ch and more...	8-bit x 2-ch, 12-bit x 1-ch	1	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support and more...	Capacitive Sensing Unit 27ch and more...	128-bit Unique ID, AES, GHASH, Key Management, TRNG	2	2	2	10, 15, 24, 27	No	0	4	No
RA4M2 PDF 100MHz Arm® Cortex®-M33 TrustZone®, High Integration With Lowest Active Power Consumption	2036 Mar	RA	ARM CM33	100	512, 384, 256	8	128	48, 64, 100	2.7 - 3.6	32	-40 to 105°C	Yes	Yes	DMAC x 8ch, DTC, DTC	30, 44, 78	16-bit x 4-ch, 32-bit x 4-ch, 32-bit x 4-ch and more...		12-bit x 7-ch, 12-bit x 9-ch, 12-bit x 13-ch	12-bit x 2 ch	1	No	USB Endpoints x 10, USB Host, USB Host, USB Peripheral and more...	Capacitive Sensing Unit 4ch, Capacitive Sensing Unit 7ch and more...	128-bit Unique ID, AES, DSA, ECC, GHASH, Key Management, RSA and more...					No			No
RA4M3 PDF 100MHz Arm® Cortex®-M33 TrustZone®, High Integration with Rich Connectivity	2036 Mar	RA	ARM CM33	100	1024, 768, 512	8	128	64, 100, 144	2.7 - 3.6	32	-40 to 85°C, -40 to 105°C	No, Yes	No, Yes	DMAC x 8ch, DTC	42, 46, 76, 110	16-bit x 4-ch, 32-bit x 4-ch, Low-Power 16-bit Asynchronous Timer x 6	16-bit Asynchronous Timer x 6	12-bit x 10-ch, 12-bit x 12-ch	12-bit x 2 ch	2	No	USB Endpoints x 10, USB Host, USB Peripheral, USB Ports (ch) x 1	Capacitive Sensing Unit 20ch	128-bit Unique ID, AES, DSA, ECC, GHASH, Key Management, RSA and more...	2	2		7, 12, 20	No, Yes			No
RA4W1 PDF Low Energy, Single Chip 32-bit Microcontrollers with 48MHz Bluetooth® 5.0	N/A	RA	ARM CM4	48	512	8	96	56	1.8 - 3.6	32	-40 to 85°C	Yes	Yes	DMAC x 4ch, DTC	35	16-bit x 3-ch, 32-bit x 4-ch, Asynchronous Timer x 2ch		14-bit x 8-ch	8-bit x 2-ch, 12-bit x 1-ch	1	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support and more...	Capacitive Sensing Unit 11ch, LCD Display Interface 4com x 9seg	AES128, AES256, GHASH, TRNG	2	2	2	11	No	0	6	No
RA6E1 PDF 200MHz Arm® Cortex®-M33, Entry-Line with High Performance & Streamlined Connectivity	2037 Jul	RA	ARM CM33	200	1024, 512	8	256	48, 64, 100	2.7 - 3.6	32	-40 to 85°C	Yes	Yes	DMAC x 8ch, DTC	28, 42, 76	16-bit x 3-ch, 16-bit x 4-ch, 32-bit x 1-ch, 32-bit x 2-ch		12-bit x 5-ch, 12-bit x 7-ch, 12-bit x 11-ch	12-bit x 1-ch	1	No, Yes	USB Full-Speed Support		128-bit Unique ID, Arm TrustZone, TRNG	2	2	1, 2	0	No	0		No
RA6E2 PDF Entry-Line 200MHz Arm® Cortex®-M33 General Purpose Microcontroller	N/A	RA	ARM CM33	200	256, 128	4	40	32, 36, 48, 64	2.7 - 3.6	32	-40 to 85°C, -40 to 105°C	Yes	Yes	DMAC x 8ch, DTC	16, 20, 29, 45	16-bit x 4-ch, 16-bit x 5-ch, 16-bit x 6-ch and more...		12-bit x 4-ch, 12-bit x 5-ch, 12-bit x 8-ch, 12-bit x 12-ch	12-bit x 1-ch, 12-bit x 2-ch	1		USB Full-Speed Support		128-bit Unique ID, Arm TrustZone, TRNG	1	1	2		Yes		2	No
RA6M1 PDF 32-bit Microcontrollers with 120MHz Optimized Entry Point to the RA6 Series	2033 Oct	RA	ARM CM4	120	512	8	256	64, 100	2.7 - 3.6	32	-40 to 105°C	Yes	Yes	DMAC x 8ch, DTC	40, 76	32-bit x 11-ch, 32-bit x 13-ch		12-bit x 10-ch, 12-bit x 19-ch	12-bit x 2 ch, 12-bit x 2-ch	2	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support and more...	Capacitive Sensing Unit 12ch	3DES, 128-bit Unique ID, AES, ARC4, DSA, ECC, GHASH and more...	2	2	2	10, 19	No	0	7	No
RA6M2 PDF 32-bit Microcontrollers with 120MHz Medium Size Memory Integration and Ethernet	2033 Oct	RA	ARM CM4	120	512, 1024	32	384	100, 144, 145	2.7 - 3.6	32	-40 to 85°C, -40 to 105°C	Yes	Yes	DMAC x 8ch, DTC	76, 110	32-bit x 13-ch, 32-bit x 14-ch		12-bit x 19-ch, 12-bit x 22-ch	12-bit x 2 ch, 12-bit x 2-ch	2	Yes	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support and more...	Camera Interface PDC, Capacitive Sensing Unit 18ch	3DES, 128-bit Unique ID, AES, ARC4, DSA, ECC, GHASH and more...	2	2, 3	2	12, 18	No	0	10	No
RA6M3 PDF 32-bit Microcontrollers with 120MHz with USB High-Speed, Ethernet and TFT controller	2033 Oct	RA	ARM CM4	120	1024, 2048	64	640, 384	100, 144, 145, 176	2.7 - 3.6	32	-40 to 85°C, -40 to 105°C	Yes	Yes	DMAC x 8ch, DTC	76, 110, 133	32-bit x 13-ch, 32-bit x 14-ch		12-bit x 19-ch, 12-bit x 22-ch, 12-bit x 24-ch	12-bit x 2 ch, 12-bit x 2-ch	2	Yes	USB Endpoints x 10, USB Hi-Speed Support, USB Host and more...	2D drawing engine, Camera Interface PDC and more...	3DES, 128-bit Unique ID, AES, ARC4, DSA, ECC, GHASH and more...	2	2, 3	2	12, 13, 18	No	0	10	No
RA6M4 PDF 200MHz Arm® Cortex®-M33 TrustZone®, High Integration with Ethernet and OctaSPI	2036 Mar	RA	ARM CM33	200	1024, 768, 512	8	256	64, 100, 144	2.7 - 3.6	32	-40 to 85°C, -40 to 105°C	No, Yes	No, Yes	DMAC x 8ch, DTC	42, 46, 76, 110	16-bit x 6-ch, 32-bit x 4-ch, 32-bit x 4-ch and more...	16-bit Asynchronous Timer x 6	12-bit x 10-ch, 12-bit x 12-ch	12-bit x 2 ch, 12-bit x 2-ch	2	No, Yes	USB Endpoints x 10, USB Endpoints x 10, USB Host and more...	Capacitive Sensing Unit 20ch	128-bit Unique ID, AES, DSA, ECC, GHASH, Key Management, RSA and more...	2	2	2	7, 12, 20	No	0	8, 10	No
RA6M5 PDF 200MHz Arm® Cortex®-M33 TrustZone®, Highest Integration with Ethernet and CAN FD	2037 Jul	RA	ARM CM33	200	2048, 1536, 1024	8	512	100, 144, 176	2.7 - 3.6	32	-40 to 85°C, -40 to 105°C	No, Yes	No, Yes	DMAC x 8ch, DTC	76, 110, 133	16-bit x 6-ch, 32-bit x 4-ch, 32-bit x 4-ch and more...	16-bit Asynchronous Timer x 6	12-bit x 9-ch, 12-bit x 11-ch, 12-bit x 12-ch, 12-bit x 13-ch and more...	12-bit x 2 ch, 12-bit x 2-ch	2	Yes	USB Endpoints x 10, USB Endpoints x 10, USB Host and more...	Capacitive Sensing Unit 12ch, Capacitive Sensing Unit 20ch	128-bit Unique ID, AES, DSA, ECC, GHASH, Key Management, RSA and more...	2	2	1	12	No	0		No
RA6T1 PDF 120MHz Arm® Cortex®-M4, ASSP of RA6 for Motor Control	2036 Feb	RA	ARM CM4	120	256, 512	8	64	64, 100	2.7 - 3.6	32	-40 to 105°C	No	Yes	DMAC x 8ch, DTC	40, 76	32-bit x 11-ch, 32-bit x 13-ch		12-bit x 10-ch, 12-bit x 19-ch	12-bit x 2 ch, 12-bit x 2-ch	1	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support and more...		3DES, 128-bit Unique ID, AES, ARC4, DSA, ECC, GHASH and more...	2	2	2	0	No	0	7	No
RA6T2 PDF 240MHz Arm® Cortex®-M33 TrustZone®, High Real-time Engine for Motor Control	TBD	RA	ARM CM33	240	512, 256	16	64	48, 64, 100		32	-40 to 105°C	No	Yes	DMAC x 8ch, DTC	35, 51, 84	32-bit x 12-ch		12-bit x 29-ch, 16-bit x 10-ch, 16-bit x 18-ch, 16-bit x 29-ch	12-bit x 2-ch, 12-bit x 4-ch	1	No			128-bit Unique ID, AES(128/256), AES(128/256), Arm TrustZone and more...	2	2	2	0	No	0	6	No
RL78/G10 PDF Low Power, Low Pin Count Microcontrollers for General Purpose Applications	2033 Dec, 2036 Mar	RL78	RL78	20	1, 2, 4	0	0.125, 0.25, 0.5	10, 16	2 - 5.5	8	-40 to 85°C	No	Yes	No	8, 14	12-bit x 1-ch, 16-bit x 2-ch, 16-bit x 4-ch		10-bit x 4-ch, 10-bit x 7-ch			No				1	1, 2	0	0	No	0	1	No
RL78/G11 PDF Low Power, Low Pin Count Microcontrollers for General Purpose Applications	2035 Dec	RL78	RL78	24	16	2	1.5	10, 16, 20, 24, 25	1.6 - 5.5	16	-40 to 85°C, -40 to 105°C	No	Yes	Yes	7, 13, 17, 21	8-bit x 2-ch, 12-bit x 1-ch, 16-bit x 5-ch		10-bit x 3-ch, 10-bit x 8-ch, 10-bit x 10-ch, 10-bit x 11-ch	8-bit x 1-ch, 8-bit x 2-ch	0	No				1	0, 2, 5, 6	0	0	No	0, 1	1, 2	No
RL78/G12 PDF Compact, Low Power Microcontrollers for General Purpose Applications Ideal for Sub-MCUs	2033 Dec, 2035 Dec, 2036 Mar	RL78	RL78	24	4, 8, 2, 16, 12	2, 0	0.5, 0.75, 0.25, 1.5, 1, 2	20, 24, 30	1.8 - 5.5, 2.4 - 5.5	16	-40 to 85°C, -40 to 105°C	No	Yes	No, Yes	18, 22, 26	12-bit x 1-ch, 16-bit x 4-ch, 16-bit x 8-ch		10-bit x 8-ch, 10-bit x 11-ch		0	No				1	1, 3, 4	0	0	No	0	1, 3	No
RL78/G13 PDF Low Power, High Function Microcontrollers for General Purpose Applications	2027 Dec, 2028 Dec, 2033 Dec, 2035 Dec, 2036 Mar	RL78	RL78	32	64, 32, 16, 48, 96, 192, 256, 128, 384, 512	0, 4, 8	4, 2, 3, 8, 16, 20, 12, 24, 32	20, 24, 25, 30, 32, 36, 40, 44, 48, 52, 64, 80, 100, 128	1.6 - 5.5, 2.4 - 5.5	16	-40 to 85°C, -40 to 105°C	No, Yes	Yes	Yes	16, 20, 21, 26, 28, 32, 36, 40, 44, 48, 58, 74, 92, 120	8-bit x 4-ch, 8-bit x 8-ch, 16-bit x 8-ch, 16-bit x 12-ch, 16-bit x 16-ch		10-bit x 6-ch, 10-bit x 8-ch, 10-bit x 9-ch, 10-bit x 10-ch and more...			No				1	2, 3, 4, 5, 6, 7, 10	0	0	No	0, 1	2, 3, 4	No
RL78/G13A PDF Low Power, Lower Operating Current Microcontrollers for General Purpose Applications	N/A	RL78	RL78	32	384, 512	8	24, 32	44, 48, 64, 100	1.6 - 5.5, 2.4 - 5.5	16	-40 to 85°C, -40 to 105°C	Yes	Yes	Yes	40, 44, 58, 92	16-bit x 8-ch, 16-bit x 12-ch		10-bit x 10-ch, 10-bit x 12-ch, 10-bit x 20-ch		0	No				1	1	0		No	1	3	No
RL78/G14 PDF Low Power, High Function, General Purpose Microcontrollers for Motor Control, Industrial and Metering Applications	2028 Dec, 2033 Dec, 2034 Dec, 2035 Dec, 2036 Mar	RL78	RL78	32	128, 16, 32, 64, 48, 96, 192, 256, 384, 512	8, 4	16, 2.5, 4, 5.5, 12, 20, 24, 32, 48	30, 32, 36, 40, 44, 48, 52, 64, 80, 100	1.6 - 5.5	16	-40 to 85°C, -40 to 105°C	No, Yes	Yes	Yes	26, 28, 32, 36, 40, 44, 48, 58, 74, 92	8-bit x 4-ch, 8-bit x 8-ch, 16-bit x 8-ch, 16-bit x 12-ch		10-bit x 8-ch, 10-bit x 9-ch, 10-bit x 10-ch, 10-bit x 12-ch and more...	8-bit x 1-ch, 8-bit x 2-ch		No				1	4, 5, 6, 7, 10	0	0	No	1	3, 4	No
RL78/G15 PDF Compact, Low Pin Count Microcontrollers with Rich Peripheral Functions for General Purpose Applications	N/A	RL78	RL78	16	4, 8	1	1	10, 16, 20	2.4 - 5.5	16	-40 to 85°C, -40 to 105°C, -40 to 125°C	No	No	No	8, 14, 18	12-bit interval x 1-ch, 16-bit x 8-ch		10-bit/8-bit x 4-ch, 10-bit/8-bit x 7-ch, 10-bit/8-bit x 11-ch	No	0	No								No			No
RL78/G1A PDF Low Power, General Purpose Microcontrollers with Built-in High-resolution A/D Converter	2027 Dec, 2028 Dec, 2033 Dec, 2035 Dec	RL78	RL78	32	64, 16, 32, 48	4	4, 2, 3	25, 32, 48, 64	1.6 - 3.6, 2.4 - 3.6	16	-40 to 85°C, -40 to 105°C	No, Yes	Yes	Yes	19, 26, 42, 56	8-bit x 4-ch, 16-bit x 8-ch		12-bit x 13-ch, 12-bit x 18-ch, 12-bit x 24-ch, 12-bit x 28-ch			No				1	3, 4, 6, 7	0	0	No	0, 1	2, 3	No
RL78/G1C PDF Compact, Low Power Microcontrollers Supporting USB Communications and Rapid Charging	2033 Dec, 2035 Dec	RL78	RL78	24	32	2	5.5	32, 48	2.4 - 5.5	16	-40 to 85°C, -40 to 105°C	Yes	Yes	Yes	22, 38	8-bit x 4-ch, 16-bit x 4-ch		10-bit x 8-ch, 10-bit x 9-ch			No	USB Endpoints x 5, USB Host, USB Peripheral and more...			1	3	0	0	No	0	1	No
RL78/G1D PDF Bluetooth® Low Energy Microcontrollers for Smart Connectivity	2026 Mar	RL78	RL78	32	128, 192, 256	8	12, 16, 20	48	1.6 - 3.6	16	-25 to 75°C, -40 to 85°C	Yes	Yes	Yes	24, 32	8-bit x 8-ch, 16-bit x 8-ch		10-bit x 8-ch			No				1	3	0	0	No	0	2	No
RL78/G1F PDF Multifunctional Microcontrollers with Enhanced Functionality for Sensorless BLDC Motor Control	2028 Dec, 2033 Dec, 2034 Dec, 2035 Dec	RL78	RL78	32	64, 32	4	5.5	24, 32, 36, 48, 64	1.6 - 5.5	16	-40 to 85°C, -40 to 105°C	No, Yes	Yes	Yes	20, 28, 31, 44, 58	8-bit x 4-ch, 12-bit Interval Timer x 1-ch, 16-bit x 9-ch		10-bit x 8-ch, 10-bit x 13-ch, 10-bit x 15-ch, 10-bit x 17-ch	8-bit x 1-ch, 8-bit x 2-ch		No				1	4, 6, 7	0	0	No	1	3	No
RL78/G1G PDF Microcontrollers for Brushless DC Motor with Built-in Comparator	2033 Dec	RL78	RL78	24	16, 8	0	1.5	30, 32, 44	2.7 - 5.5	16	-40 to 85°C	No	Yes	No	26, 28, 40	8-bit x 4-ch, 16-bit x 7-ch		10-bit x 8-ch, 10-bit x 12-ch			No				1	1	0	0	No	0	2	No
RL78/G1H PDF Lowest Power SubGHz Wireless Communication Microcontrollers	2032 Dec	RL78	RL78	32	512, 256, 384	8	48, 24, 32	32, 64	1.8 - 3.6	16	-40 to 85°C	Yes	Yes	No	41	16-bit x 9-ch		10-bit x 6-ch			No				1	2	0	0	No	0	2	No
RL78/G1M PDF 8-bit General-purpose Microcontroller Equipped with Real-time Output Terminals for Motor Drive	N/A	RL78	RL78	20	8, 4	0	1, 0.5	20	2 - 5.5	8	-40 to 85°C	No	Yes	No	18	16-bit x 4-ch		10-bit x 8-ch		0	No				1	0	0	0	No	0	1	No
RL78/G1N PDF 8-bit General-purpose Microcontroller Equipped with Large Current Output Terminals for LED Drive	N/A	RL78	RL78	20	8, 4	0	1, 0.5	20	2 - 5.5	8	-40 to 85°C	No	Yes	No	18	16-bit x 4-ch		10-bit x 8-ch		0	No				1	0	0	0	No	0	1	No
RL78/G1P PDF Small Pin General-purpose Microcontroller with 12-bit A/D Converter and 10-bit D/A Converter	2035 Dec	RL78	RL78	32	16	2	1.5	24, 32	2.7 - 3.6	16	-40 to 85°C	No	Yes	Yes	20, 28	16-bit x 4-ch		12-bit x 6-ch, 12-bit x 8-ch	10-bit x 2-ch	0	No				1	0, 1	0	0	No	0	1	No
RL78/G22 PDF General-Purpose Microcontrollers with Excellent Low-Power Performance and Rich Capacitive Touch Channels	N/A	RL78	RL78	32	32, 64	2	4	16, 20, 24, 25, 30, 32, 36, 40, 44, 48	1.6 - 5.5	16	-40 to 85°C, -40 to 105°C	Yes	Yes	Yes	12, 16, 20, 21, 26, 28, 32, 36, 40, 44	16-bit x 8-ch, 32-bit x 1-ch		10-bit/8-bit x 3-ch, 10-bit/8-bit x 6-ch, 10-bit/8-bit x 8-ch and more...	No	0	No		Capacitive Sensor						No			No
RL78/G23 PDF New Generation RL78 General-Purpose Microcontrollers with Further Refined Low-Power Performance and Expanded Peripheral Functions	N/A	RL78	RL78	32	128, 96, 768, 512, 384, 256, 192	8	16, 12, 48, 32, 24, 20	30, 32, 40, 44, 48, 52, 64, 80, 100, 128	1.6 - 5.5	16	-40 to 85°C, -40 to 105°C	Yes	Yes	Yes	26, 28, 36, 38, 40, 44, 48, 58, 74, 92, 120	16-bit x 8-ch, 16-bit x 12-ch, 16-bit x 16-ch, 32-bit x 1-ch		8/10/12-bit x 26-ch, 12-bit x 8-ch, 12-bit x 9-ch and more...	8-bit x 1-ch, 8-bit x 2-ch	0	No		Capacitive Sensor						No			No
RL78/H1D PDF Microcontrollers for Sensing Transducers in Healthcare Devices and Optimized for Blood Pressure Monitors	N/A	RL78	RL78	24	96, 128, 64	4	5.5, 8	48, 64, 80	2.4 - 5.5, 1.8 - 5.5	16	-40 to 85°C	Yes	Yes	Yes	29, 36, 53, 63	8-bit x 2-ch, 8-bit x 6-ch, 16-bit x 9-ch, 16-bit x 13-ch		10-bit x 3-ch	8-bit x 1-ch, 12-bit x 1-ch		No		Display Function, LCD Segment Count x 27, LCD Segment Count x 36		1	1	1	0	No	1	3, 4	No, Yes
RL78/I1A PDF Microcontrollers that Output High-resolution PWM for Fine Dimming and Toning of Led Lighting	2031 Mar	RL78	RL78	32	32, 64	4	2, 4	20, 30, 38	2.7 - 5.5	16	-40 to 105°C, -40 to 125°C	Yes	Yes	Yes	16, 26, 34	16-bit x 11-ch, 16-bit x 12-ch		10-bit x 6-ch, 10-bit x 11-ch			No				1	1	0	0	No	1	2, 3	No
RL78/I1B PDF Low Power Microcontrollers with 24-bit ΔΣ A/D Converter, RTC Backup and High-accuracy Oscillator Ideal for Electricity Meter Market	2033 Dec	RL78	RL78	24	128, 64	0	8, 6	80, 100	1.9 - 5.5	16	-40 to 85°C	Yes	Yes	No	53, 69	8-bit x 4-ch, 16-bit x 8-ch		10-bit x 4-ch, 10-bit x 6-ch, 24-bit x 3-ch (Delta-Sigma) and more...			No		LCD Segment Count x 240, LCD Segment Count x 304		1	2	1	0	No	1	3	No
RL78/I1C PDF Ultra-low Power Microcontrollers for High-end Smart Electricity Meter Market	2033 Dec	RL78	RL78	24, 32	64, 128, 256, 512	2	6, 8, 16, 32	64, 80, 100	1.7 - 5.5, 1.6 - 5.5	16	-40 to 85°C	Yes	Yes	No	35, 52, 60, 68, 76	8-bit x 4-ch, 8-bit x 8-ch, 12-bit Interval Timer x 1-ch and more...		10-bit x 4-ch, 10-bit x 6-ch, 12-bit x 4-ch, 12-bit x 6-ch and more...			No		LCD Segment Count x 120, LCD Segment Count x 240, LCD Segment Count x 304		1	3, 4	0	0	No	1	3, 4	No
RL78/I1D PDF Microcontrollers Suitable for Applications such as Detectors and Sensors Requiring Low Power and Analog Integration	2033 Dec, 2035 Dec	RL78	RL78	24	32, 16, 8	2	3, 2, 0.7	20, 24, 30, 32, 48	1.6 - 3.6	16	-40 to 105°C	Yes	Yes	Yes	14, 18, 24, 26, 42	16-bit x 4-ch		12-bit x 6-ch, 12-bit x 12-ch, 12-bit x 17-ch			No				1	1, 2	0, 1	0	No	0	1	No
RL78/I1E PDF High-precision Analog Microcontroller with Configurable AFE	N/A	RL78	RL78	32	32	4	8	32, 36	2.4 - 5.5	16	-40 to 105°C, -40 to 125°C	Yes	Yes	Yes	10, 14	16-bit x 8-ch		10-bit x 8-ch, 10-bit x 10-ch	12-bit x 1-ch		No				1	2	0	0	No	0	2	No, No
RL78/L12 PDF Compact LCD Microcontrollers with Low Power Consumption, Suitable for Small Appliances and Healthcare Devices	2033 Dec, 2034 Dec, 2035 Dec, 2036 Mar	RL78	RL78	24	32, 8, 16	2	1.5, 1	32, 44, 48, 52, 64	1.6 - 5.5	16	-40 to 85°C, -40 to 105°C	No, Yes	Yes	Yes	20, 29, 33, 37, 47	8-bit x 4-ch, 16-bit x 8-ch		10-bit x 4-ch, 10-bit x 7-ch, 10-bit x 9-ch, 10-bit x 10-ch			No		LCD Segment Count x 52, LCD Segment Count x 144 and more...		1	1	0	0	No	1	1	No
RL78/L13 PDF Standard LCD Microcontrollers with Low Power Consumption, Suitable for LCD Display of Home Appliances or Measurement Devices	2033 Dec, 2036 Mar	RL78	RL78	24	128, 64, 48, 32, 16, 96	4	8, 4, 2, 1.5, 1, 6	64, 80	1.6 - 5.5	16	-40 to 85°C, -40 to 105°C	Yes	Yes	Yes	49, 65	16-bit x 8-ch		10-bit x 9-ch, 10-bit x 12-ch			No		LCD Segment Count x 256, LCD Segment Count x 376		1	2	2	0	No	1	3, 4	No
RL78/L1A PDF Ultra-low Power Microcontrollers with Embedded LCD and Enhanced Analog Peripherals	2033 Dec, 2034 Dec	RL78	RL78	24	48, 64, 96, 128	8	5.5	80, 100	1.8 - 3.6	16	-40 to 85°C	Yes	Yes	No	59, 79	8-bit x 2-ch, 16-bit x 8-ch		12-bit x 10-ch, 12-bit x 14-ch	12-bit x 2-ch		No		LCD Segment Count x 224, LCD Segment Count x 328		1	5	1	0	No	1	4	No
RL78/L1C PDF High-function LCD Microcontrollers with USB 2.0/Rapid Charging Support for Sensor Modules and Healthcare Devices	2028 Dec, 2033 Dec, 2034 Dec, 2036 Mar	RL78	RL78	24	64, 128, 192, 256, 96	8	8, 12, 16, 10	80, 85, 100	1.6 - 3.6	16	-40 to 85°C, -40 to 105°C	Yes	Yes	No	59, 63, 77, 81	16-bit x 8-ch		12-bit x 9-ch, 12-bit x 11-ch, 12-bit x 13-ch	8-bit x 2-ch		No	USB Endpoints x 5, USB Peripheral, USB Ports (ch) x 1	LCD Segment Count x 320, LCD Segment Count x 416		1	5	4	0	No	1	4	No
RX110 PDF 32-bit Microcontrollers Featuring Ultra-low Power Consumption	2035 Dec, TBD	RX	RXv1	32	64, 32, 96, 128, 16, 8	0	10, 16, 8	36, 40, 48, 64	1.8 - 3.6	32	-40 to 85°C, -40 to 105°C	No, Yes	Yes	Yes	25, 29, 36, 52	16-bit x 6-ch		12-bit x 7-ch, 12-bit x 8-ch, 12-bit x 10-ch, 12-bit x 14-ch	No	0	No				1	4	4	0	Yes	0	3	No

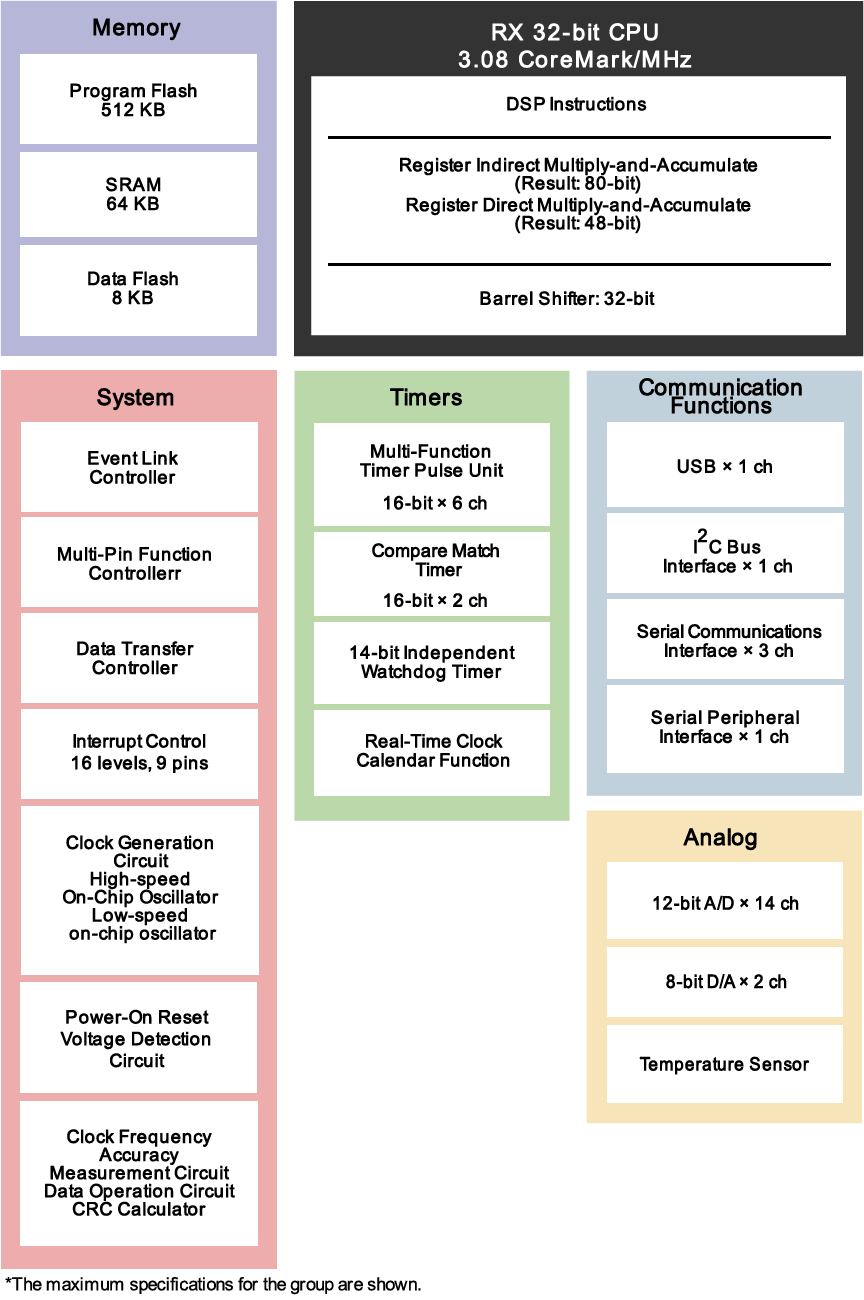

RX111 PDF 32-bit Microcontroller with Small-capacity ROM/Low Pin Count Lineup and Built-in USB 2.0	2035 Dec, TBD	RX	RXv1	32	128, 96, 64, 32, 16, 384, 256, 512	8	16, 10, 8, 64, 32	36, 40, 48, 64	1.8 - 3.6	32	-40 to 85°C, -40 to 105°C	No	No	Yes	21, 25, 32, 48	16-bit x 8-ch		12-bit x 7-ch, 12-bit x 10-ch, 12-bit x 14-ch	8-bit x 2-ch, No	0	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support and more...			1	4	4	0	No	0	3	No
RX113 PDF 32-bit Microcontroller for Bidirectional HMI and Peripheral Device Interfacing	2035 Dec, TBD	RX	RXv1	32	512, 256, 128, 384	8	64, 32	64, 100	1.8 - 3.6	32	-40 to 85°C, -40 to 105°C	No	No	Yes	48, 84	8-bit x 4-ch, 16-bit x 11-ch		12-bit x 11-ch, 12-bit x 17-ch	12-bit x 2-ch	0	No	USB Endpoints x 10, USB Endpoints x 10, USB Host, USB Host and more...	Capacitive Sensing Unit 12ch and more...		1	7, 9	7, 9	0, 12	No	0	6, 8	No

Tips for Using This Parametric Table:

Hide Filters button in header: Collapse or expands filters
Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
Reset button in header: Reset all filters to the page default
Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
Export button in header: Export the filtered results of the table to an Excel document
Filter parts search bar in header: Type to filter table results by part number
Hide column button in column headers: Select to hide columns in table
AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
Document icon next to product name in row: View the featured document for this product
Chip icon next to the right of the document icon in row: View the block diagram for this product
Cart icon to the right of the chip icon: Indicates that samples are available for this product
