SmartBond™ DA14695 Bluetooth Low Energy 5.2 Development Kit Pro
ページセクションへ移動：
概要
説明

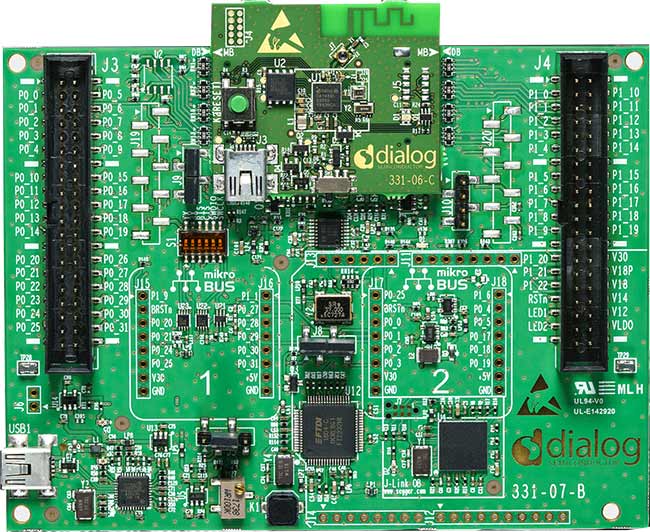

The DA14695 Development Kit Pro is ideal for software developers who want total control over their software development and want to keep an eye on the power consumption of their application. The kit contains a motherboard and a DA14695 daughterboard and gives you access to all of the package's GPIOs. Additional daughterboards for the DA14695 and DA14699 can be purchased separately. These daughterboards are supersets of the remaining devices of the DA1469x family and can, respectively, be used as development kits for the DA14691 and DA14697.
The kits offer two mikroBUS™ header interfaces and one Arduino interface enabling users to expand the functionality of the kits with hundreds of available click boards and shields. The RF connector on the daughterboard enables users to perform RF measurements while the kit's on-board Segger chip gives users complete debugging capability. In addition, dedicated on-board circuitry allows users, in combination with our software environment SmartSnippets™ Studio, to profile and fine tune the power consumption of their application to get the most out of the DA14695’s advantages.
特長
- Flexible battery options
- QSPI-Flash memory for booting
- Headers for I/O monitoring and expandability
- Option to support Arduino shields
- Option to support MikroBUS click boards
- Provisions for automated test
- On-board basic peripherals for demo and development
- JTAG debugger and connectivity to PC
- DA1469x silicon easily replaceable on a daughterboard core module
アプリケーション
アプリケーション
- Fitness trackers
- Sport watches
- Toys
- Consumer appliances
- Home automation
- Industrial automation
- Voice-controlled remote controls
- Access control
- Game controllers and headsets
ドキュメント
| Document title | Document type 分類 | 日付 日付 | |
|---|---|---|---|
| PDF 976 KB | マニュアル－開発ツール | ||
| PDF 213 KB | 回路図 | ||
| PDF 194 KB | 回路図 | ||
| PDF 353 KB | 回路図 | ||
4 items
|
|||
