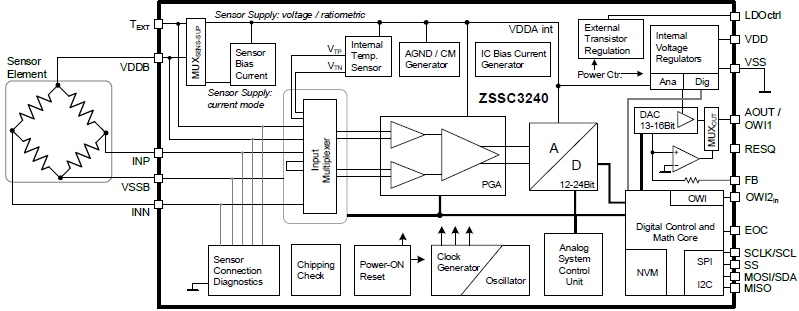

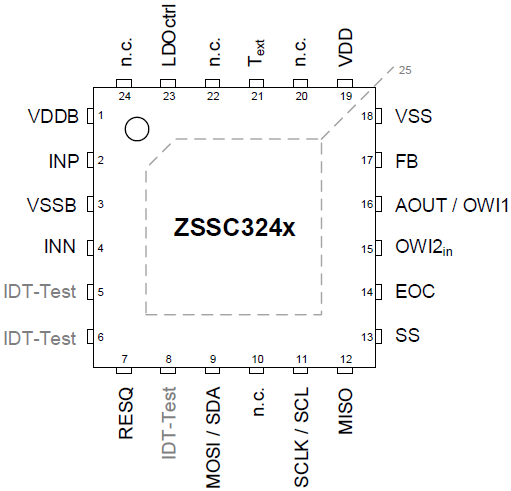

The ZSSC3240 is a sensor signal conditioning IC (SSC) for highly accurate amplification, digitization, and sensor-specific correction of resistive sensor signals. The ZSSC3240 is suitable for bridge and half-bridge sensors, as well as external voltage-source ele­ment and single-element sensors (e.g., Pt100 and external temper­ature sensor diodes) powered by an on-chip current source. Digital compensation of the sensor offset, sensitivity, temperature drift, and non-linearity is accomplished via a 26-bit math core running a correction algorithm with calibration coefficients stored in a non-volatile, reprogrammable memory. The programmable, integrated sensor front-end allows optimally applying various sensors for a broad range of applications. The ZSSC3240 provides measurement value readouts and programming capabilities via an I2C, SPI, or one-wire interface (OWI). Three different operation modes allow optimal development of digital, digital-analog, and analog-output smart sensor modules including wake-up on request, continuous-on/fast‑response, and automatic/cyclic sensor measurement operations. Absolute and ratiometric voltage, current-loop, or interrupt analog outputs are supported by the ZSSC3240. The analog output options and digital interface options (for calibration and/or a digital application inter­face) can be combined.

特長

  • Digital communication and calibration interfaces:
    • SPI up to 10MHz
    • I2C (Standard, Fast, and High-Speed Mode)
    • One-wire-interface (OWI), up to 100kBit/s

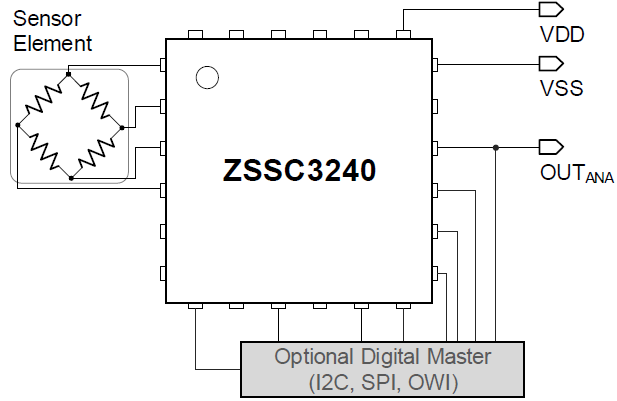

  • Accommodates nearly all resistive bridge sensor types (signal spans from 1mV/V up to 500mV/V)
  • Supports different sensor element configurations:
    • Resistive bridge or half-bridge
    • Resistive divider string
    • Voltage source
  • On-chip temperature sensor
  • External temperature sensing supported, e.g. sensor-bridge as temperature detector, external diode, etc.
  • Support for Pt100
  • Programmable 16-bit digital-to-analog-converter and output:
    • (0V to 1V) or (0V to 5V) absolute voltage output
    • VDD-ratiometric voltage output
    • 4mA to 20mA current-loop output supported
    • 0V to 10V absolute-voltage output supported
  • On-chip voltage regulators for sensor supply, and IC operation
  • Support for VDD regulation by external JFET
  • 24-bit analog-to-digital converter and 26 bits digital-signal-conditioning math core
  • Reprogrammable, nonvolatile memory (NVM)
  • Programmable measurement scheduler for continuous sensing applications, with optimized balance of
    • Energy consumption
    • Output update rate
    • Sensor-signal-conditioning accuracy
    • Self-diagnostic coverage and system safety
  • On-chip diagnostics:
    • Sensor connection
    • Broken-chip-check / chipping-check
    • Memory integrity

製品選択

製品名 Part Status Description Pkg. Type Lead Count (#) Temp. Range Carrier Type 購入/サンプル
ZSSC3240CC1B
Active 304μm thickness, no inking WAFER 0 -40 to 85°C Wafer
Availability
ZSSC3240CC2B
Active 725μm thickness, no inking WAFER 0 -40 to 85°C Wafer
Availability
ZSSC3240CC5B
Active 304μm thickness, with inking WAFER 0 -40 to 85°C Wafer
Availability
ZSSC3240CC6B
Active 725μm thickness, with inking WAFER 0 -40 to 85°C Wafer
Availability
ZSSC3240CI1B
Active 304μm thickness, no inking WAFER 0 -40 to 125°C Wafer
Availability
ZSSC3240CI2B
Active 725μm thickness, no inking WAFER 0 -40 to 125°C Wafer
Availability
ZSSC3240CI5B
Active 304μm thickness, with inking WAFER 0 -40 to 125°C Wafer
Availability
ZSSC3240CI6B
Active 725μm thickness, with inking WAFER 0 -40 to 125°C Wafer
Availability
ZSSC3240CC3R
Active 13-inch Reel VFQFPN 24 -40 to 85°C Reel
Availability
ZSSC3240CI3R
Active 13-inch Reel VFQFPN 24 -40 to 125°C Reel
Availability
ZSSC3240CI3W
Active 7-inch Reel VFQFPN 24 -40 to 125°C Reel
Availability
ZSSC3240CL1B
Active 304μm thickness, no inking, pre-configured for current loop WAFER 0 -40 to 125°C Wafer
Availability
ZSSC3240CL3R
Active 13-inch Reel, pre-configured for current loop VFQFPN 24 -40 to 125°C Reel
Availability

ドキュメント&ダウンロード

タイトル 他の言語 分類 形式 サイズ 日付
データシート
ZSSC3240 Datasheet データシート PDF 1.47 MB
ユーザーガイド、マニュアル
ZSSC3240 Mass Calibration Software Guide マニュアル PDF 526 KB
ZSSC3240 Calibration Guide マニュアル PDF 381 KB
アプリケーションノート、ホワイトペーパー
ZSSC3240 AFE Configuration for External Temperature Sensor Acquisition アプリケーションノート PDF 983 KB
IDT Wafer Dicing Guidelines アプリケーションノート PDF 144 KB
その他資料
Sensing Technologies and Sensor Solutions Overview 概要 PDF 5.75 MB
ZSSC3240 Electromagnetic Compatibility 技術概要 PDF 541 KB
ZSSC3240 Die and Wafer Information 技術概要 PDF 800 KB
Choosing the Right Sensor Signal Conditioning IC その他 PDF 300 KB
Sensor Signal Conditioning ICs for Industrial and Consumer Applications (Japanese) English 概要 PDF 767 KB

ボード&キット

製品名 タイトル 分類 Company
ZSSC3240KIT Evaluation Kit for ZSSC3240 リファレンス Renesas
